STMicroelectronics LD2981ABU33TR

Part No.:: LD2981ABU33TR

Manufacturer:: STMicroelectronics

Package:: TO-243AA

Datasheet:: LD2981ABU33TR.pdf

Description:: IC REG LINEAR 3.3V 100MA SOT89-3

In Stock:: 11966

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LD2981ABU33TR Specifications

Package/Case:
TO-243AA
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
OutputConfiguration:
Positive
OutputType:
Fixed
NumberofRegulators:
1
Voltage-Input(Max):
16V
Voltage-Output(Min/Fixed):
3.3V
Voltage-Output(Max):
-
VoltageDropout(Max):
0.375V @ 100mA
Current-Output:
100mA
Current-Quiescent(Iq):
150 µA
Current-Supply(Max):
2.6 mA
PSRR:
63dB (1kHz)
ControlFeatures:
-
ProtectionFeatures:
Over Current, Over Temperature
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

LD2981ABU33TR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LD2981ABU33TR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LD2981ABU33TR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LD2981ABU33TR information

Views：

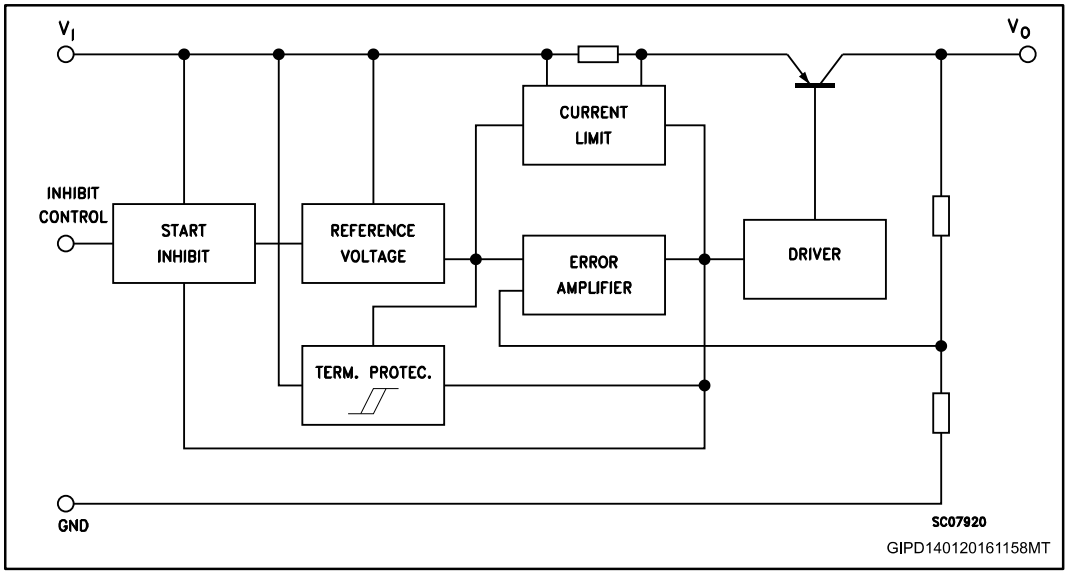

LD2981ABU33TR Typical application Circuitry

LD2981ABU33TR

The LD2981ABU33TR is part of the LD2981 series, renowned for its low-dropout (LDO) voltage regulators. These devices are designed to provide precise voltage regulation with a minimal difference between the input and output voltages, making them ideal for battery-operated devices, portable electronics, and applications where power efficiency is crucial. The LD2981ABU33TR, in particular, is tailored to deliver a fixed output voltage of 3.3V, suitable for powering low-voltage digital circuits and microcontrollers.

1. Low-Dropout Voltage Regulator Design: The essence of the LD2981ABU33TR's functionality lies in its ability to maintain a stable 3.3V output even when the input voltage is very close to the output voltage, minimizing power loss and enhancing energy efficiency. This LDO regulator is optimized for applications that require a stable power supply with minimal voltage overhead.

2. Pin Configuration for Efficient Circuit Integration: The LD2981ABU33TR is designed with a straightforward pin layout typically consisting of three main pins: the Input (Vin), Output (Vout), and Ground (GND). Vin is connected to the unregulated input power source, Vout provides the regulated 3.3V output to the load, and GND is connected to the system ground, offering a reference point and completing the circuit.

3. Power Supply and Load Connection: To achieve optimal performance from the LD2981ABU33TR, it's crucial to provide a stable input voltage that is slightly higher than the desired 3.3V output, taking into account the regulator's dropout voltage. The output should be connected to the load that requires regulation, ensuring that the current demand does not exceed the regulator's specified maximum output current.

4. Bypass Capacitors for Stability: To enhance the stability and noise performance of the LD2981ABU33TR, it is recommended to use bypass capacitors at the input and output. A capacitor connected close to the Vin pin helps filter input noise and supply variations, while a capacitor at the Vout pin improves transient response and output noise characteristics. The specific values for these capacitors can vary based on the application but are typically in the range of 1µF to 10µF.

5. Thermal Considerations for Reliable Operation: The LD2981ABU33TR, like all voltage regulators, can dissipate heat depending on the voltage drop and the current it supplies. Ensuring adequate thermal management, such as providing sufficient PCB copper area for heat spreading or using external heat sinks in high-power applications, is essential to prevent overheating and ensure reliable operation.

6. Application-Specific Design Considerations: The LD2981ABU33TR's versatility makes it suitable for a wide array of applications, from powering microcontrollers and digital logic to providing a stable voltage for RF circuits. Depending on the specific application, considerations such as the need for additional filtering, protection diodes for reverse voltage protection, or isolation techniques might be necessary to tailor the regulator's performance to the particular requirements of the system.

In summary, the LD2981ABU33TR is a fixed-output LDO voltage regulator from the LD2981 series, designed to provide stable and efficient power regulation with a minimal voltage dropout. Implementing this device involves understanding its pin functions, ensuring a stable input voltage, managing the load connection, utilizing bypass capacitors for enhanced performance, addressing thermal management, and considering application-specific requirements. By following these guidelines, engineers can effectively utilize the LD2981ABU33TR to enhance the power efficiency and reliability of a wide range of electronic systems.
