Microchip Technology LAN9514-JZX

Part No.:: LAN9514-JZX

Manufacturer:: Microchip Technology

Package:: 64-VFQFN Exposed Pad

Datasheet:: LAN9514-JZX.pdf

Description:: IC USB 2.0 ETHER CTRLR 64QFN

In Stock:: 2412

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LAN9514-JZX Specifications

Package/Case:
64-VFQFN Exposed Pad
Packaging:
Tray
Series:
-
ProductStatus:
Active
Protocol:
Ethernet
Function:
Bridge, USB to Ethernet
Interface:
USB
Standards:
USB 2.0, 10/100 Base-T/TX PHY
Voltage-Supply:
1.8V, 3.3V
Current-Supply:
288mA
OperatingTemperature:
0°C ~ 70°C

LAN9514-JZX this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LAN9514-JZX price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LAN9514-JZX to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LAN9514-JZX information

Views：

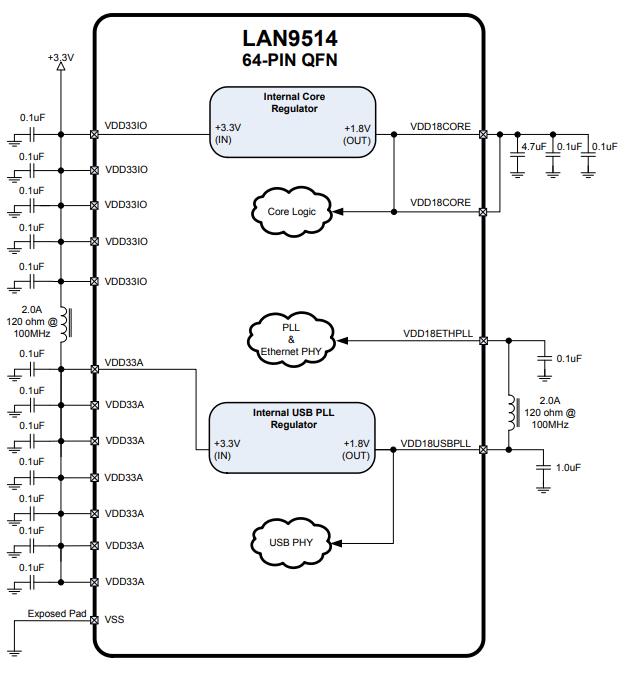

LAN9514-JZX Typical application Circuitry

The LAN9514-JZX is a powerful, built-in 10/100 Ethernet controller and USB 2.0 hub. It is designed and produced by Microchip Technology.

LAN9514-JZX Features:

1. Multiple Port Integration: The LAN9514-JZX integrates a four-port USB 2.0 hub and a 10/100 Ethernet controller in one chip, effectively minimizing component count, board space, and power.

2. Compliant and Compatible: This chip complies with USB 2.0 and Ethernet standards, ensuring compatibility with a wide range of devices.

3. Advanced Power Management: It supports multiple power modes, including dynamic and static power management, making it well-suited to power-sensitive designs.

4. Compact Packaging: The LAN9514-JZX is available in a compact 64-pin QFN package that fits snugly into space-constrained applications.

LAN9514-JZX Application Scenarios:

The LAN9514-JZX is extensively used in applications needing both USB and Ethernet connectivity. This includes multimedia devices, set-top boxes, gaming consoles, embedded systems, and other networked consumer electronics.

Detailed Circuit Connection - Embedded System Example:

- Pin 1 (AVDD): This pin is the analog power supply for the chip. It should be connected to a 3.3V power source.

- Pin 9 (DVDD): The digital power supply pin should also be connected to a 3.3V power source.

- Pins 29-32 (USB1P, USB1N, USB2P, USB2N): These pins are for the first two downstream USB ports. They should be linked to the USB data pins of the connected devices.

- Pins 37-40 (USB3P, USB3N, USB4P, USB4N): These pins are for the last two downstream USB ports and should also be connected to the USB data pins of the connected devices.

- Pins 55 and 56 (RX+, RX-): These are the Ethernet receive pins and should be connected to the TX pins of the Ethernet PHY.

- Pins 60 and 61 (TX+, TX-): These are the Ethernet transmit pins. They should be linked to the RX pins of the Ethernet PHY.

- Pin 64 (VSS): This pin serves as the system ground and should be linked to it.

Considerations for Design:

1. Power Supply: The LAN9514-JZX requires a clean, stable power supply to prevent possible damage or erroneous operation.

2. Layout Consideration: Adequate layout of the USB and Ethernet signals is necessary to avoid crosstalk and to maintain signal integrity.

3. Electrostatic Discharge (ESD) Protection: ESD precautions should be observed to avoid potential damage to the chip.

In conclusion, the LAN9514-JZX offers a compact, power-efficient solution for designs necessitating both USB and Ethernet connectivity. It's an optimal choice for diverse applications, thanks to its multifunctionality and compatibility with multiple standards.
