Microchip Technology LAN7800-I/Y9X

Part No.:: LAN7800-I/Y9X

Manufacturer:: Microchip Technology

Package:: 48-VFQFN Exposed Pad

Datasheet:: LAN7800-I/Y9X.pdf

Description:: IC ETHERNET CTLR USB 48SQFN

In Stock:: 2903

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LAN7800-I/Y9X Specifications

Package/Case:
48-VFQFN Exposed Pad
Packaging:
Tray
Series:
-
ProductStatus:
Active
Protocol:
Ethernet
Function:
Controller
Interface:
-
Standards:
10/100/1000 Base-TX PHY
Voltage-Supply:
1.2V, 2.5V, 3.3V
Current-Supply:
1 ~ 4mA
OperatingTemperature:
-40°C ~ 85°C

LAN7800-I/Y9X this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LAN7800-I/Y9X price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LAN7800-I/Y9X to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LAN7800-I/Y9X information

Views：

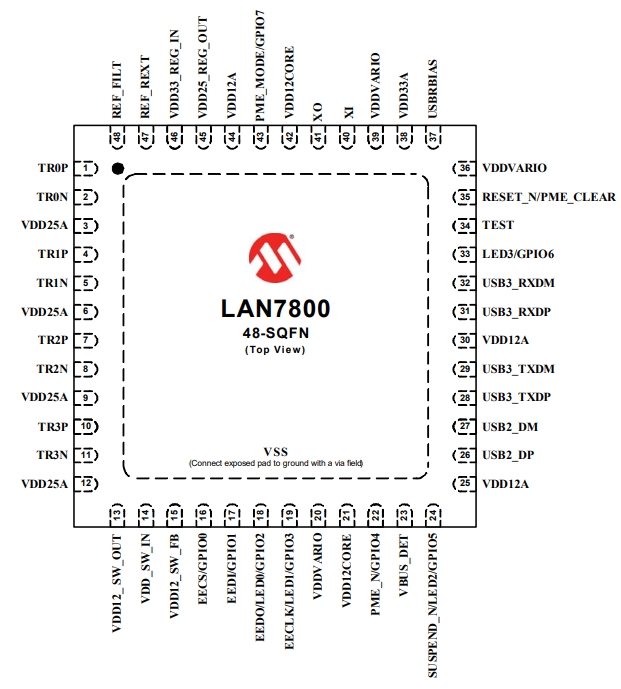

LAN7800-I/Y9X Typical application Circuitry

LAN7800-I Y9X

LAN7800-I/Y9X is a high-performance USB 3.1 Gen 1 to Gigabit Ethernet bridge with an integrated USB 3.1 PHY, Ethernet PHY, and 10/100/1000 Ethernet MAC, designed by Microchip Technology. It is particularly useful in applications requiring high-speed data transfer between a USB 3.1 Gen 1 host and a Gigabit Ethernet network, such as docking stations, USB port replicators, and digital media adapters.

Application Scenarios

The LAN7800-I/Y9X is well-suited for use in high-speed network interfaces for embedded systems, network-attached storage devices, and high-performance USB to Ethernet adapters. Its high throughput and low-power consumption make it ideal for portable devices and applications requiring efficient network connectivity.

Parameter Features

Key features of the LAN7800-I/Y9X include:

- Integrated USB 3.1 Gen 1 PHY for high-speed data transfer.

- Gigabit Ethernet MAC and PHY support for fast network connections.

- Energy Efficient Ethernet (EEE) and Wake-on-LAN (WoL) support for power-saving and remote wake-up features.

- Advanced features such as VLAN tagging, checksum offload, and jumbo frame support for versatile network applications.

Specific Circuit Connection Example

In a scenario where LAN7800-I/Y9X is used to provide a Gigabit Ethernet interface for a USB 3.1-enabled embedded system, the detailed circuit connection would involve:

- USB 3.1 Interface Connections: Connect the USB 3.1 differential pairs (SSRX± and SSTX±) to the corresponding USB Type-C or Type-A connector. Ensure impedance matching and proper PCB trace routing to maintain signal integrity for high-speed data transfer.

- Ethernet PHY Connections: Connect the Ethernet differential pairs (TX± and RX±) to an RJ45 connector with integrated magnetics to interface with the Ethernet network. Pay attention to the isolation and layout requirements specified in the Ethernet standard.

- Power Supply Design: Provide a stable 3.3V power supply to the VDD core and VDDIO pins, with adequate decoupling capacitors placed close to the LAN7800-I/Y9X to minimize power supply noise.

- LED Indicators: Connect LEDs to the LED driver pins (LED0, LED1) to indicate network activity and link status, enhancing the user interface and diagnostics.

- Configuration and Strap Options: Set the configuration straps (e.g., EEPROM_SEL, LED_CFG) to configure the device's operational mode and LED behavior according to the specific application requirements.

Design Considerations

When designing circuits with LAN7800-I/Y9X, it's important to consider the following:

- EMI and Signal Integrity: Implement proper PCB design practices, such as differential pair routing, ground plane management, and impedance control, to minimize electromagnetic interference and maintain signal integrity for both USB and Ethernet interfaces.

- Thermal Management: Evaluate the thermal performance and ensure adequate heat dissipation, especially in compact or enclosed designs where thermal buildup could impact reliability.

- Power Management: Incorporate power-saving features like EEE and WoL to reduce power consumption during idle or standby modes, especially important for battery-powered or energy-sensitive applications.

- Firmware and Driver Support: Ensure compatibility with the host system's operating system and integrate the necessary drivers to support the LAN7800-I/Y9X's advanced features such as VLAN tagging and checksum offload.

By carefully addressing these design considerations, a high-performance and reliable USB 3.1 to Gigabit Ethernet interface based on LAN7800-I/Y9X can be developed, meeting the needs of high-speed network connectivity in modern electronic systems.
