STMicroelectronics L6566BHTR

Part No.:: L6566BHTR

Manufacturer:: STMicroelectronics

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: L6566BHTR.pdf

Description:: IC OFFLINE SWITCH FLYBACK 16SO

In Stock:: 3636

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

L6566BHTR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
OutputIsolation:
Isolated
InternalSwitch(s):
No
Voltage-Breakdown:
-
Topology:
Flyback
Voltage-StartUp:
14 V
Voltage-Supply(Vcc/Vdd):
8V ~ 23V
DutyCycle:
75%
Frequency-Switching:
10kHz ~ 300kHz
Power(Watts):
-
FaultProtection:
Current Limiting, Over Load
ControlFeatures:
Soft Start
OperatingTemperature:
-40°C ~ 150°C (TJ)

L6566BHTR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including L6566BHTR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for L6566BHTR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

L6566BHTR information

Views：

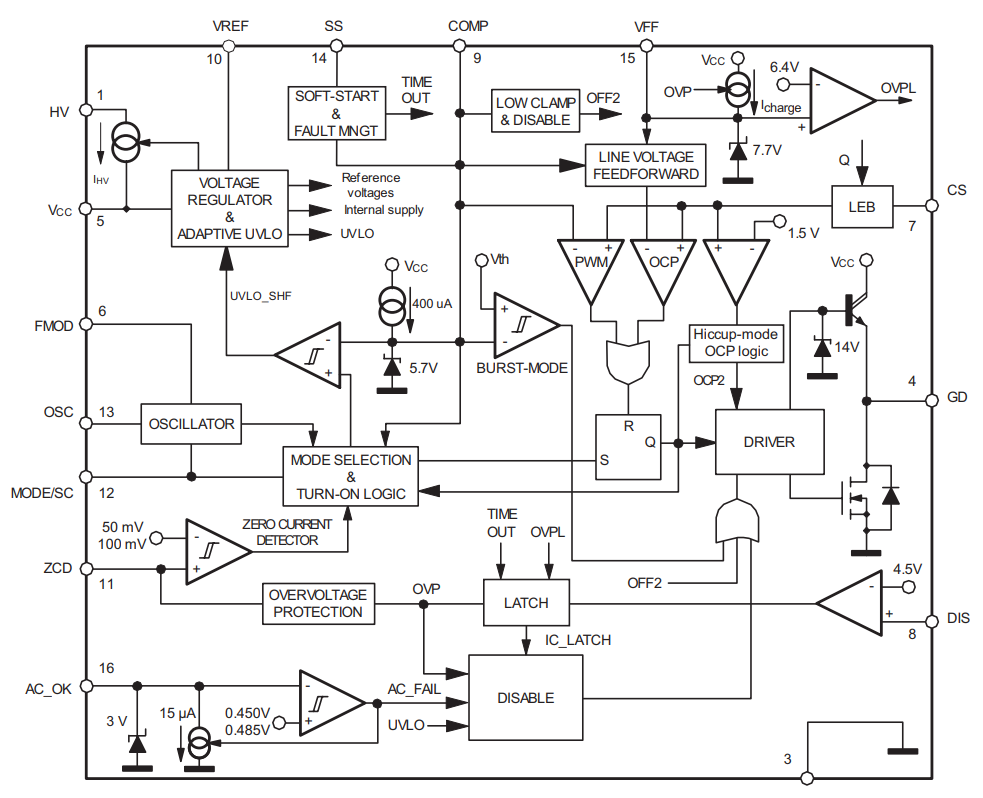

L6566BHTR Typical application Circuitry

The L6566BHTR is a transition-mode power factor correction (PFC) controller integrated circuit (IC). Designed by STMicroelectronics, this chip is part of the high-performance power management circuit portfolio, providing high efficiency and excellent power factor values.

Features of L6566BHTR:

- Transition-mode PFC Control: The L6566BHTR operates in a transition-mode which is advantageous in power factor correction applications for medium and high power range.

- Operational Modes: The chip features a standby power mode with ultra-low consumption and a disable function for remote control.

- Built-in Protection: It incorporates protections such as overvoltage protection (OVP), undervoltage lockout (UVLO), feedback disconnection, and over-temperature shutdown.

- Wide Operating Voltage Range: The IC can function within a wide supply voltage range from 10.5V to 20V.

Applications of L6566BHTR:

The L6566BHTR is widely used in applications like power supply units (PSU) for servers and desktops, electronic lighting systems, adapters for laptops, battery chargers, and air conditioners.

Circuit Connection Example - Designing a PFC Circuit:

1. High-Voltage Supply: Connect your main power supply to the HV pin of the L6566BHTR.

2. Voltage Sensing: Connect a voltage sensing circuit from your output to the INV pin of the L6566BHTR. This feedback loop is used to regulate the output voltage.

3. Current Sensing: The IS pin of the L6566BHTR should be connected to the current sensing resistor. This resistor is utilized by the IC to assist in monitoring the current passing through the boost inductor.

4. Gate Driver: The GATE pin of the L6566BHTR must be connected to the gate of your external power MOSFET. This MOSFET is controlled by the IC to regulate the current in the boost inductor.

5. Bootstrap Circuit: Connect a bootstrap capacitor between the VCC and GATE pins. This is essential for powering the gate driver circuit.

Design Considerations when using L6566BHTR:

- Component Selection: Choose the boost inductor, MOSFET, and output capacitors carefully. They must be able to cope with the voltage and current demands of your specific application.

- Thermal Management: Keep in mind that the L6566BHTR can heat up during operation, especially in high-power applications. The right heat dissipation strategies must be considered.

- PCB Layout: A well-designed PCB layout is crucial in high-power applications. It helps in minimizing noise and maintaining stability.

The L6566BHTR is a versatile PFC controller IC, providing the capability of high power and high-efficiency operation in a variety of applications. For designers looking to improve performance and power efficiency, it's a fantastic solution.
