STMicroelectronics L6470PDTR

Part No.:: L6470PDTR

Manufacturer:: STMicroelectronics

Package:: 36-BSSOP (0.433, 11.00mm Width) Exposed Pad

Datasheet:: L6470PDTR.pdf

Description:: IC MTR DRV BIPLR 3.3V/5V 36PWRSO

In Stock:: 3220

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

L6470PDTR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
STSPIN L64
ProductStatus:
Active
MotorType-Stepper:
Bipolar
MotorType-ACDC:
-
Function:
Driver - Fully Integrated, Control and Power Stage
OutputConfiguration:
Half Bridge (4)
Interface:
SPI
Technology:
DMOS
StepResolution:
1 ~ 1/128
Applications:
General Purpose
Current-Output:
3A
Voltage-Supply:
3.3V, 5V
Voltage-Load:
8V ~ 45V
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

L6470PDTR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including L6470PDTR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for L6470PDTR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

L6470PDTR information

Views：

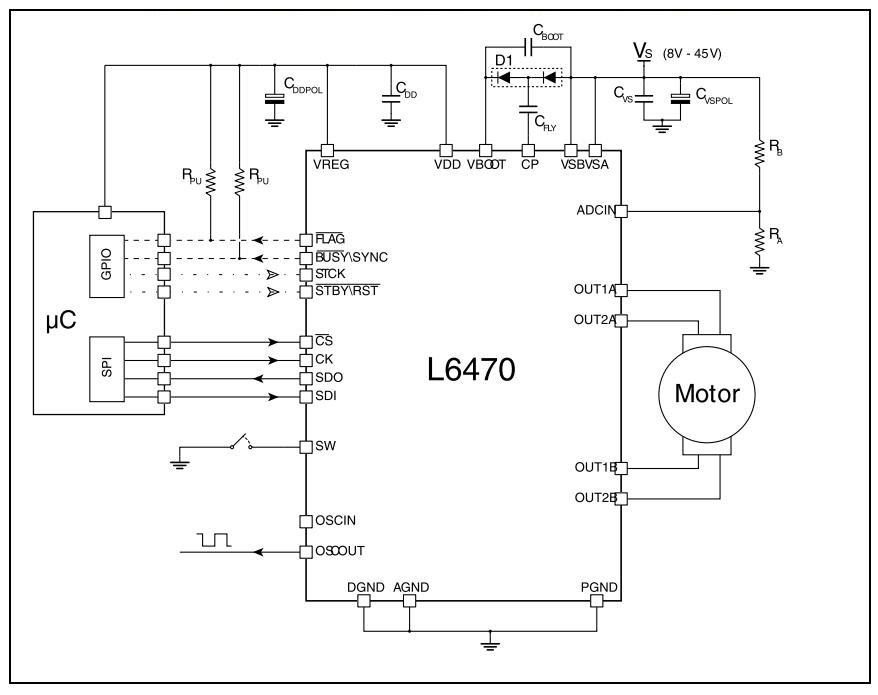

L6470PDTR Typical application Circuitry

L6470PDTR

The L6470PDTR from Microelectronics is a micro-stepping motor driver integrated circuit featuring stall detection and a typical SPI interface. It is suitable for various applications such as gaming machines, surveillance systems, industrial automation, and medical and textile machines.

Consider the following important factors while designing an application circuit for this device:

1. Power supply: The supply voltage range for the L6470PDTR is 8 to 45 volts. Make sure your power supply is in this range at all times. A decoupling capacitor should be positioned close to the VCC and GND pins as well.

2. Motor connection: The L6470PDTR device has output pins for connecting the two windings of a bipolar stepper motor. Make sure that these are correctly wired to the motor.

3. Microcontroller interface: To communicate with a microcontroller, the device has a typical SPI interface. You will need to connect the SPI pins (SDO, SDI, SCK) to the corresponding pins on your microcontroller.

4. Input/Output pins: The L6470PDTR has several other important pins, such as the step clock input (STCK) and the stall detection output (STDL). These will need to be connected appropriately depending on your specific application.

5. Configuration pins: There are several configuration pins like the oscillation pin (OSC) and the overcurrent threshold select pins (OC_SEL), which you will need to set up according to your requirements.

Bear in mind that the specific needs of your application could dictate further considerations. In order to avoid errors, carefully compare your design to the datasheet and any other pertinent materials offered by Microelectronics.
