STMicroelectronics L6470PD

Part No.:: L6470PD

Manufacturer:: STMicroelectronics

Package:: 36-BSSOP (0.433, 11.00mm Width) Exposed Pad

Datasheet:: L6470PD.pdf

Description:: IC MOTOR DRIVER BIPLR 36POWERSSO

In Stock:: 2829

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

L6470PD Specifications

Packaging:
Tube
Series:
STSPIN L64
ProductStatus:
Active
MotorType-Stepper:
Bipolar
MotorType-ACDC:
-
Function:
Driver - Fully Integrated, Control and Power Stage
OutputConfiguration:
Half Bridge (4)
Interface:
SPI
Technology:
DMOS
StepResolution:
1 ~ 1/128
Applications:
General Purpose
Current-Output:
3A
Voltage-Supply:
3.3V, 5V
Voltage-Load:
8V ~ 45V
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

L6470PD this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including L6470PD price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for L6470PD to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

L6470PD information

Views：

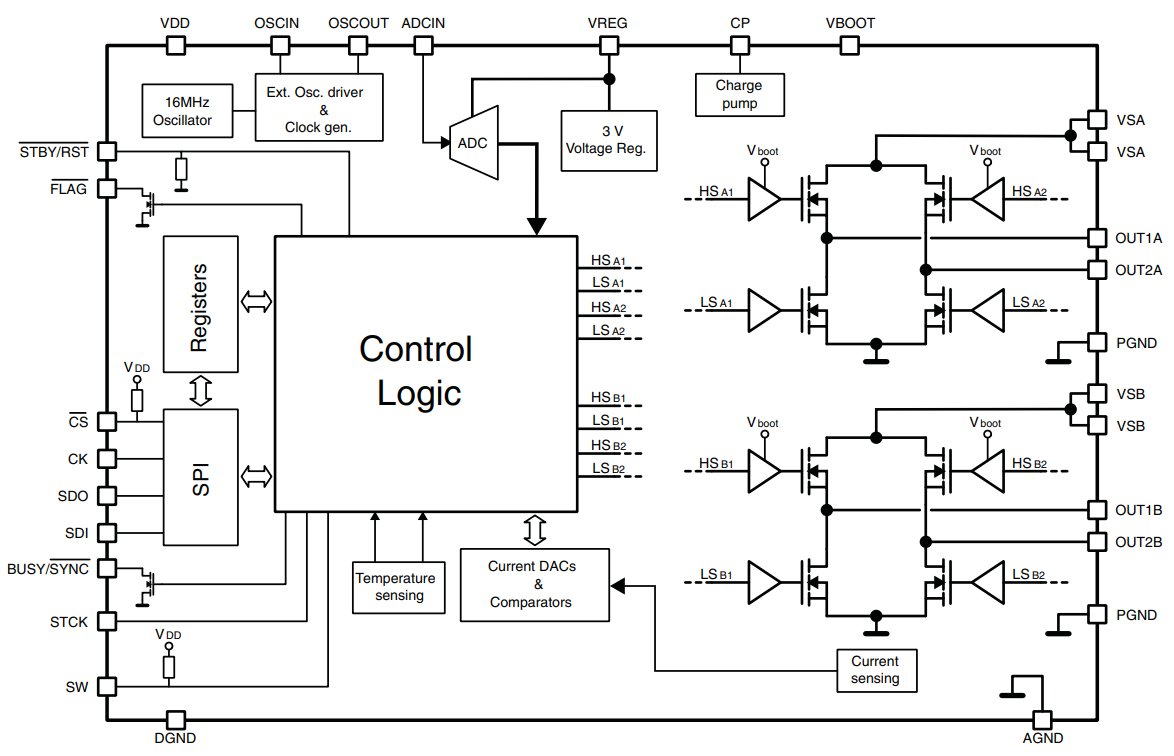

L6470PD Typical application Circuitry

The L6470PD is a microstepping motor driver with motion engine and SPI. It is manufactured by STMicroelectronics.This IC is made to drive both windings of a bipolar stepper motor or to control two DC motors in opposite directions.

Key Features of L6470PD:

- Integrated Microstepping Indexer: The L6470PD has an integrated microstepping indexer which simplifies motion control. It also has an embedded power MOSFETs which allows for 7A peak output.

- Supply Voltage: It operates at a supply voltage from 8V to 45V.

- Advanced Control Features: It has advanced control features such as motion profile generation with trapezoidal or parabolic speed profiles. The L6470PD also features stall detection, and the motor torque can be controlled in real time via the SPI.

- Protection: It features under-voltage lock-out protection and thermal shutdown and has a programmable alarm.

Applications of L6470PD:

The L6470PD is ideal for robotics, vending machines, textile machines, computer peripherals such as printers and scanners, surveillance systems, and point of sale terminals.

Circuit Connection Example - Driving a Bipolar Stepper Motor:

1. Power Supply: Connect your power supply (8V to 45V) to the VIN and GND pins of the L6470PD.

2. Motor Connections: Connect your bipolar stepper motor to the OUT1A, OUT1B, OUT2A, and OUT2B pins of the L6470PD. These pins will directly drive the two windings of your stepper motor.

3. SPI Interface: Connect the SCK, SDI, and SDO pins of the L6470PD to the SPI interface of your microcontroller. This will allow the microcontroller to send commands and receive status information from the L6470PD.

4. Reset and Flag Pins: Connect the nRESET and nFLAG pins to the appropriate I/O pins of your microcontroller. The nRESET pin is used to reset the L6470PD, while the nFLAG pin will be set when a warning or error condition is detected.

Design Considerations when using L6470PD:

- Heat Dissipation: Consider heat dissipation in your design, as the L6470PD can deliver up to 7A to the motor, which may generate significant heat.

- Power Supply Decoupling: Decoupling capacitors should be placed close to the power supply pins (VIN and GND) to ensure stable operation.

- Motor Selection: The selection of the motor should be done with the peak current rating and operating voltage range of the L6470PD in mind.

Overall, the L6470PD is a feature-packed solution for driving bipolar stepper motors or two DC motors, offering precise control, protection, and flexibility.
