Name: L293DWPG4
Brand: Texas Instruments
SKU: L293DWPG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments L293DWPG4

Part No.:: L293DWPG4

Manufacturer:: Texas Instruments

Package:: 28-SOIC (0.295, 7.50mm Width)

Datasheet:: L293DWPG4.pdf

Description:: IC MTR DRV BIPOLR 4.5-36V 28SOIC

In Stock:: 2737

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

L293DWPG4 Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
MotorType-Stepper:
Bipolar
MotorType-ACDC:
Brushed DC
Function:
Driver - Fully Integrated, Control and Power Stage
OutputConfiguration:
Half Bridge (4)
Interface:
Parallel
Technology:
Bipolar
StepResolution:
-
Applications:
General Purpose
Current-Output:
600mA
Voltage-Supply:
4.5V ~ 36V
Voltage-Load:
4.5V ~ 36V
OperatingTemperature:
0°C ~ 70°C (TA)
MountingType:
Surface Mount

L293DWPG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including L293DWPG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for L293DWPG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

L293DWPG4 information

Views：

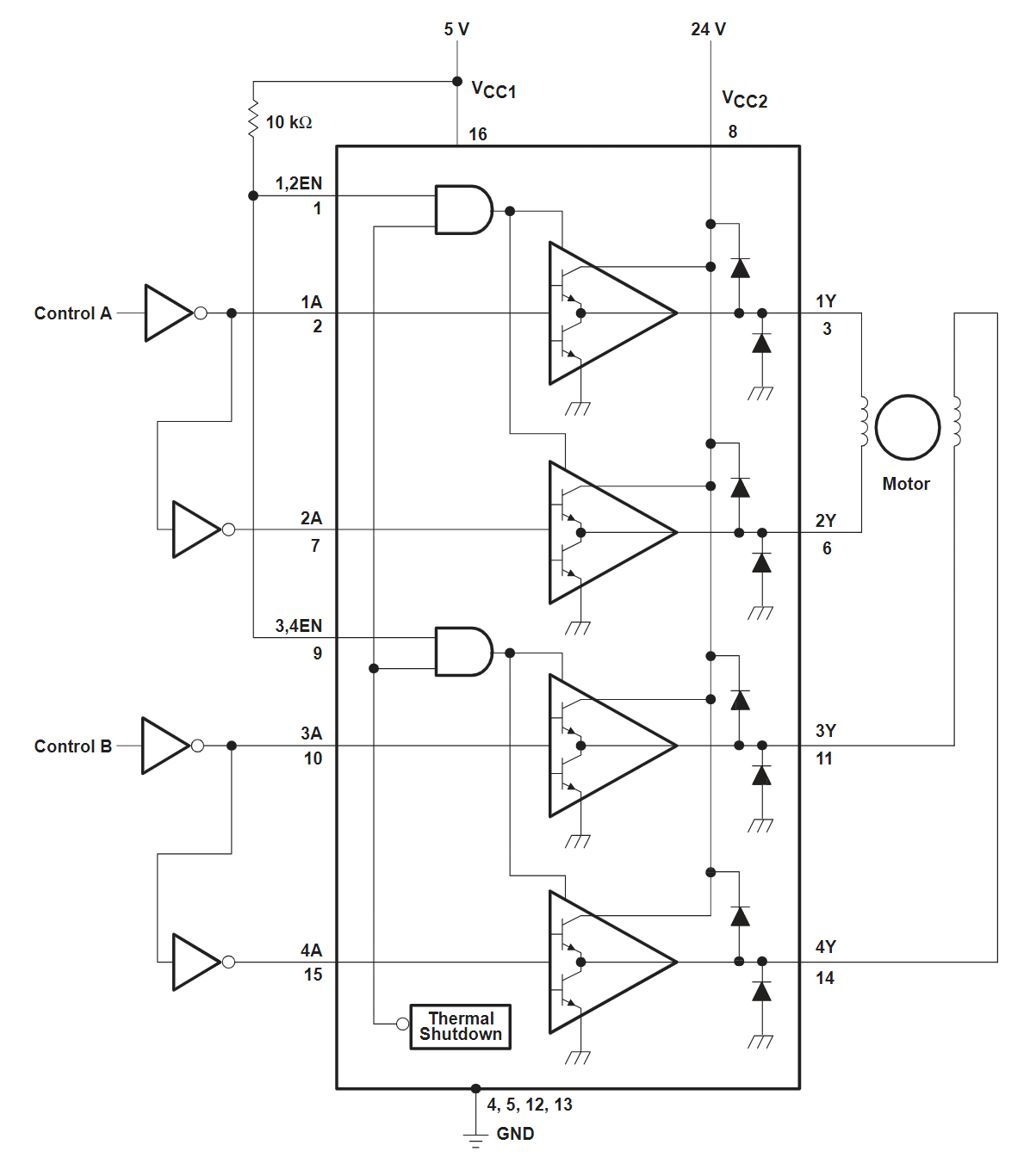

L293DWPG4 Typical application Circuitry

L293DWPG4

The L293DWPG4, a beacon in the world of motor drivers, hails from the revered L293 series. These motor driver ICs have been pivotal in driving a range of motors, from simple DC units to more complex stepper motors. The L293DWPG4 stands tall, designed to operate bidirectional DC motors with outputs that can carry currents as high as 1A.

1. Power Connections:

- Jumpstart your setup by connecting `VCC1` (usually associated with Pin 16) to a 5V power source. This powers the chip's internal logic.

- For the motor's operational voltage, connect `VCC2` (commonly found as Pin 8) to a voltage suitable for your motor, which can range anywhere from 4.5V to 36V.

2. Motor Dynamics:

- Connect the terminals of your DC motor to `OUT1` (Pin 3) and `OUT2` (Pin 6). These output pins directly drive the motor based on the input logic provided.

- Similarly, if you're operating a second motor, employ `OUT3` (Pin 11) and `OUT4` (Pin 14) for its terminals.

3. Driving Logic Inputs:

- `IN1` (Pin 2) and `IN2` (Pin 7) determine the direction and operation of the motor connected to `OUT1` and `OUT2`. For instance, setting `IN1` high and `IN2` low rotates the motor in one direction, while reversing this logic spins it in the opposite direction.

- The second motor's direction and operation hinge on the logic levels at `IN3` (Pin 10) and `IN4` (Pin 15).

4. Enable Pins:

- The `ENABLE1` pin (usually Pin 1) must be set high for the motors connected to `OUT1` and `OUT2` to operate. Conversely, grounding this pin will stop these motors.

- For the operation of motors connected to `OUT3` and `OUT4`, ensure `ENABLE2` (typically Pin 9) is set high.

5. Spotlight on L293DWPG4:

- It's always prudent to couple `VCC1` and `VCC2` with decoupling capacitors, enhancing the L293DWPG4's operational stability.

- The L293DWPG4 stands out for its thermal shutdown feature, offering an added layer of protection against potential overheating.

- The inclusion of L293DWPG4 in a system underscores a commitment to efficient motor operation and enhanced control dynamics.

- Its adaptability shines, as L293DWPG4 integrates seamlessly into varied applications, from robotics to automated machinery.

In wrapping up, the L293DWPG4 is a veritable cornerstone in motor driver technology. As automation and robotics continue to burgeon, the L293DWPG4 promises robust, efficient, and versatile motor control, sculpting the trajectory of modern machinery operations.
