Microchip Technology KSZ9896CTXC

Part No.:: KSZ9896CTXC

Manufacturer:: Microchip Technology

Package:: 128-TQFP Exposed Pad

Datasheet:: KSZ9896CTXC.pdf

Description:: IC ETHERNET SWITCH 6PORT 128TQFP

In Stock:: 2335

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

KSZ9896CTXC Specifications

Package/Case:
128-TQFP Exposed Pad
Packaging:
Tray
Series:
-
ProductStatus:
Active
Protocol:
Ethernet
Function:
Switch
Interface:
I²C, SPI
Standards:
IEEE 802.3
Voltage-Supply:
1.8V, 2.5V, 3.3V
Current-Supply:
-
OperatingTemperature:
0°C ~ 70°C

KSZ9896CTXC this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including KSZ9896CTXC price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for KSZ9896CTXC to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

KSZ9896CTXC information

Views：

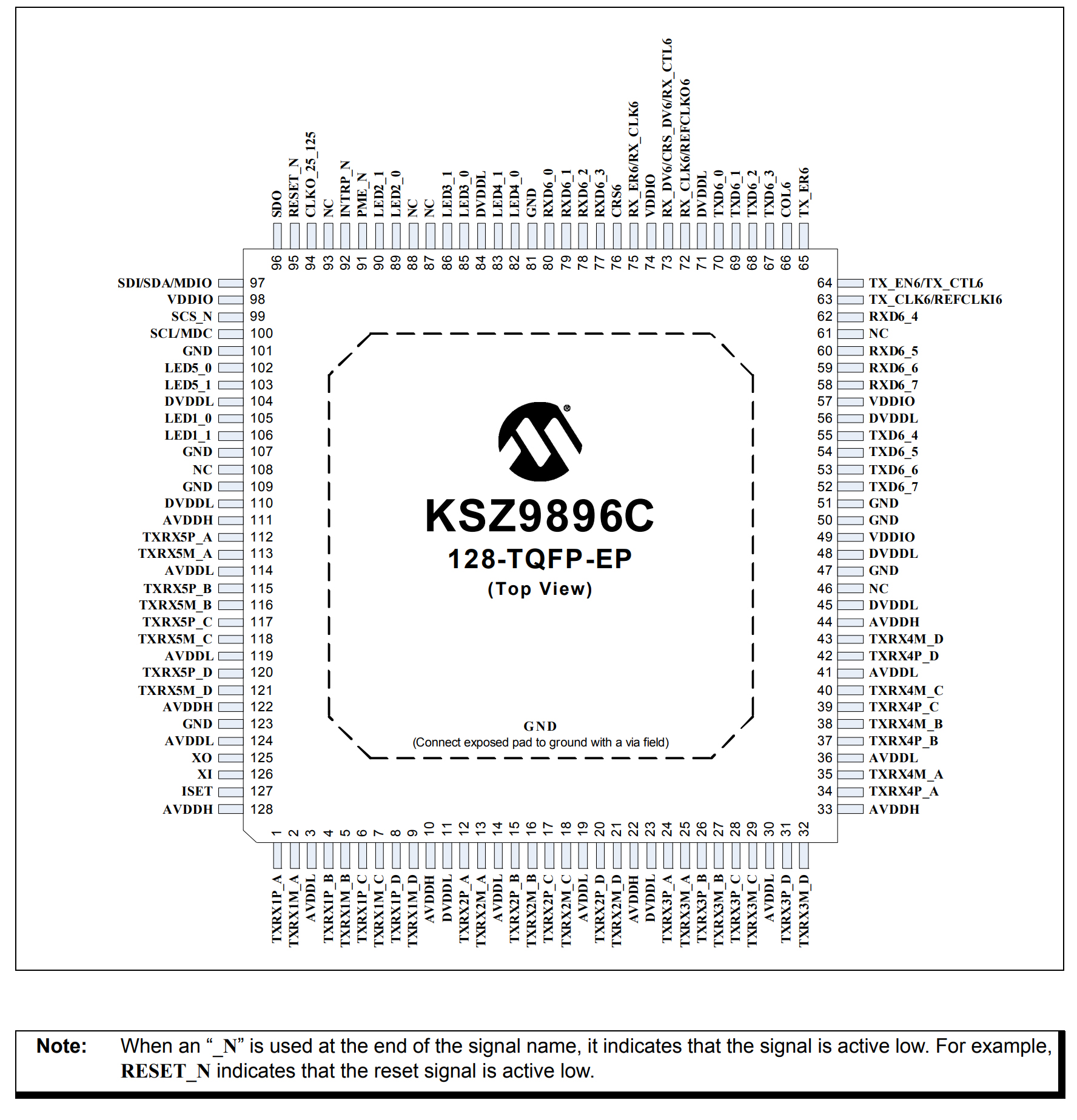

KSZ9896CTXC Typical application Circuitry

KSZ9896CTXC

The KSZ9896CTXC is a high-performance, 6-port Ethernet switch with numerous features and a robust PHY transceiver from Microchip. Here's an outline of the detailed circuit connection process:

1. Power Supply Pins (AVDD33, DVDD18): Connect AVDD33 (pin 70) and DVDD18 (pin 87) to their respective power sources, 3.3V and 1.8V. Connect the AND (pin 88) and DGND (pin 89) to the circuit ground.

2. Oscillator Pins (XTAL1, XTAL2): Attach a 25MHz crystal between the XTAL1 (pin 6) and XTAL2 (pin 5) pins.

3. Reset Pin (RESET): The RESET (pin 41) is active low and can be connected to your microcontroller reset line or a manual reset switch.

4. Ethernet Interface Pins (TXP/TEN, RAP/RUN): Use the Ethernet interface pins for the various Ethernet ports (P1 to P6). For example, P1's transmit pins are TXP1 (pin 16) and TXN1 (pin 15). For receiving data, use RXP1 (pin 14) and RXN1 (pin 13). Repeat the process for the other ports.

5. Management Data Input/Output (MDC, MDI): Connect MDC (pin 3) and MDI (pin 4) to your host processor's corresponding pins. These pins allow the host processor to manage the KSZ9896CTXC.

6. LED Indicators (LED[0-2]): Connect the LED pins (e.g., LED0 for port 1 on pin 20) to suitable LEDs through a current-limiting resistor. These LEDs can signify various statuses such as link activity and speed.

7. Interface Pins (RMI_RED[0-3], RMI_TED[0-3]): Connect these to your MAC or FPGA interface as per your desired configuration (MID, RMI, etc.).

Always refer to the KSZ9896CTXC's data sheet for definitive pin assignments, electrical characteristics, and functionality information. The KSZ9896CTXC ensures reliable and high-speed data transmission, perfect for networking applications.
