Microchip Technology KSZ8863RLLI-TR

Part No.:: KSZ8863RLLI-TR

Manufacturer:: Microchip Technology

Package:: 48-LQFP

Datasheet:: KSZ8863RLLI-TR.pdf

Description:: IC ETHERNET SWITCH 3PORT 48-LQFP

In Stock:: 3699

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

KSZ8863RLLI-TR Specifications

Package/Case:
48-LQFP
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Protocol:
Ethernet
Function:
Switch
Interface:
I²C, SPI
Standards:
10/100 Base-T/TX PHY
Voltage-Supply:
1.8V, 2.5V, 3.3V
Current-Supply:
-
OperatingTemperature:
-40°C ~ 85°C

KSZ8863RLLI-TR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including KSZ8863RLLI-TR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for KSZ8863RLLI-TR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

KSZ8863RLLI-TR information

Views：

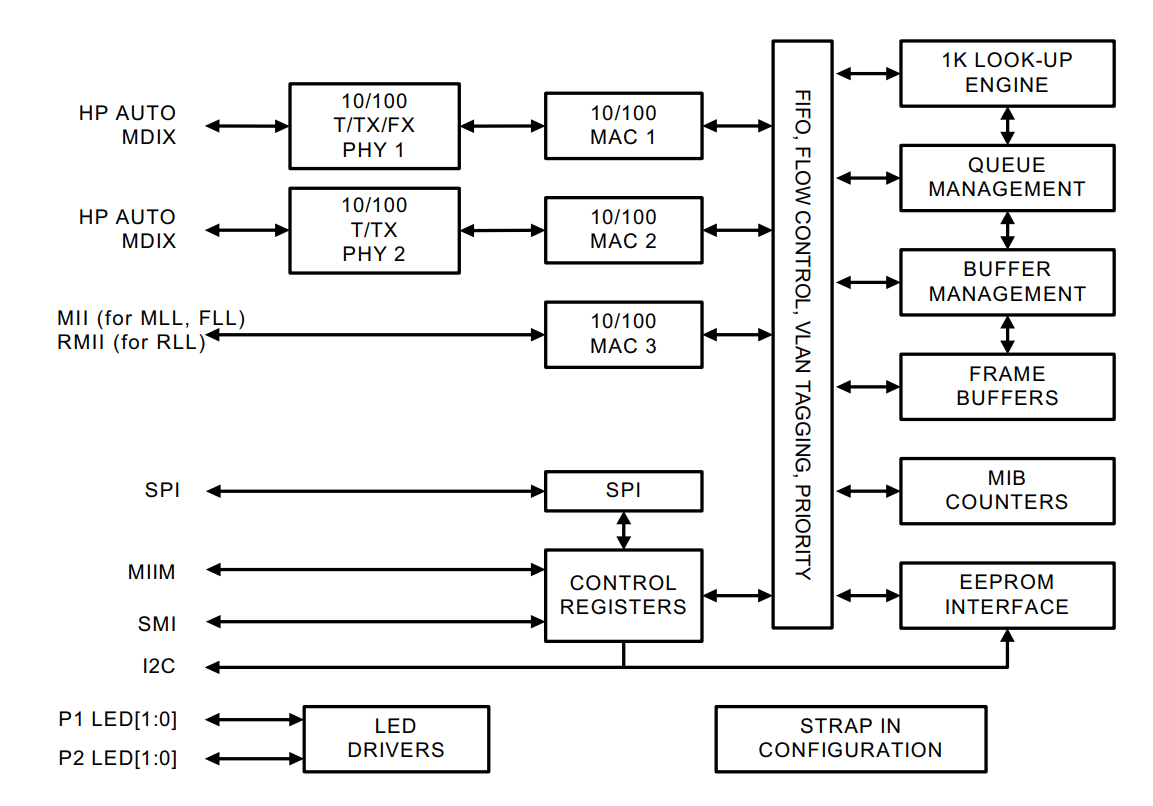

KSZ8863RLLI-TR Typical application Circuitry

The KSZ8863RLLI-TR is an Ethernet switch integrated circuit (IC) developed by Microchip Technology. It has highly integrated networking capabilities, making it well-suited for various applications.

Key Features of the KSZ8863RLLI-TR:

- The KSZ8863RLLI-TR is equipped with three ports, each with its own MAC (Media Access Control) and PHY (Physical Layer) for data transmission at speeds of 10/100 Mbps.

- This IC supports automatic MDI/MDIX crossover, removing the need for crossover cables or uplink ports.

- It comes with numerous advanced features, including IGMP (Internet Group Management Protocol) snooping, VLAN (Virtual Local Area Network) support, and Quality of Service (QoS) capabilities.

- The KSZ8863RLLI-TR is capable of power-saving when the network link is idle, leading to reduced overall power consumption.

KSZ8863RLLI-TR in Application Scenarios:

The KSZ8863RLLI-TR is often found in applications like IoT devices, networked appliances, and digital TVs due to its powerful networking abilities and compactness.

Example Circuit Connection – An IoT Device:

1. Power Supply Pins: The power supply pins of KSZ8863RLLI-TR (VDD33, VDDA, VDDIO, and VDDD) should be connected to their respective voltage supplies, in accordance with the datasheet.

2. Ethernet Interface Pins: For each Ethernet port, the RX and TX pins need to connect to an RJ45 Ethernet connector via Ethernet magnetics.

3. MAC Interface Pins: MAC interface pins should be interfaced with the corresponding pins of the device's microcontroller or processor, allowing data exchange between the device and the Ethernet switch.

4. Management Interface Pins: The management interface pins (MDC and MDIO) should be connected to the device's management bus, facilitating the configuration and monitoring of the KSZ8863RLLI-TR.

5. Strap Option Pins: KSZ8863RLLI-TR has several Strap Option pins that are configured based on the requirements of the device during power-up.

Design Considerations with KSZ8863RLLI-TR:

- Power Supply Quality: It is important to ensure that the KSZ8863RLLI-TR has a stable and noise-free power supply. This usually requires the use of decoupling capacitors.

- PCB Layout: To maintain signal integrity, proper high-speed PCB layout practices are crucial, particularly for the MAC and PHY data lines.

- Thermal Management: The KSZ8863RLLI-TR may generate substantial heat depending on the application, making it essential to have proper thermal management in place.

- Hardware Protection: Measures to protect the KSZ8863RLLI-TR from electrical overstress conditions like overvoltage or overcurrent should be in place.

In summary, the KSZ8863RLLI-TR provides a comprehensive solution for the integration of Ethernet capabilities into a variety of devices, ensuring optimal performance and reliability.
