Name: KSZ8863MLLI
Brand: Microchip Technology
SKU: KSZ8863MLLI
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Microchip Technology KSZ8863MLLI

Part No.:: KSZ8863MLLI

Manufacturer:: Microchip Technology

Package:: 48-LQFP

Datasheet:: KSZ8863MLLI.pdf

Description:: IC ETHERNET SWITCH 3PORT 48-LQFP

In Stock:: 2021

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

KSZ8863MLLI Specifications

Package/Case:
48-LQFP
Packaging:
Tray
Series:
-
ProductStatus:
Active
Protocol:
Ethernet
Function:
Switch
Interface:
I²C, SPI
Standards:
10/100 Base-T/TX PHY
Voltage-Supply:
1.8V, 2.5V, 3.3V
Current-Supply:
-
OperatingTemperature:
-40°C ~ 85°C

KSZ8863MLLI this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including KSZ8863MLLI price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for KSZ8863MLLI to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

KSZ8863MLLI information

Views：

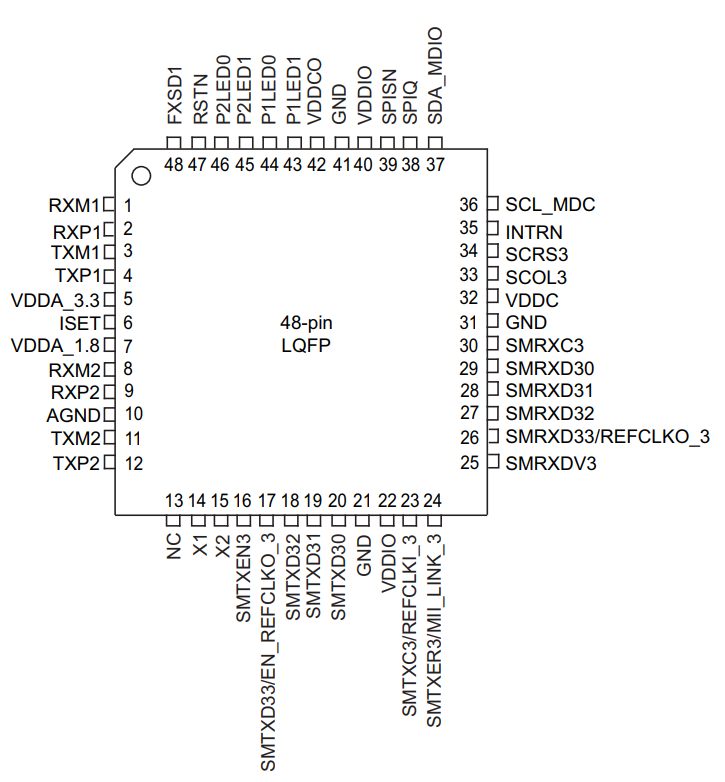

KSZ8863MLLI Typical application Circuitry

The KSZ8863MLLI is a highly integrated 3-port Ethernet switch from Microchip Technology, known for its sophisticated functionality and compactness.

Features of the KSZ8863MLLI:

- The KSZ8863MLLI comes with three MAC (Media Access Control) units and three PHY (Physical Layer) transceivers, all working at 10/100 Mbps speed. This facilitates the handling of communication across multiple Ethernet devices.

- Due to the chip's automatic MDI/MDIX crossover, crossover cables and uplink ports are not required.

- It supports advanced features such as VLAN (Virtual Local Area Network), QoS (Quality of Service), and IGMP (Internet Group Management Protocol) snooping.

- The KSZ8863MLLI also supports power-saving modes, reducing power consumption when links are inactive.

Application Scenarios for the KSZ8863MLLI:

Due to its compactness and rich feature set, the KSZ8863MLLI is often found in applications such as networked home appliances, digital televisions, and IoT devices.

Example Circuit Connection – Networked Home Appliance:

1. Power Supply Pins: The KSZ8863MLLI's power supply pins (VDD33, VDDA, VDDD, and VDDIO) need to be connected to their respective voltage sources. The voltages must align with the specifications outlined in the datasheet.

2. Ethernet Interface Pins: For each Ethernet port, TX and RX pins should be connected to the corresponding pins of the RJ45 Ethernet connector via a set of Ethernet magnetics.

3. MAC Interface Pins: The MAC interface pins should be connected to the corresponding pins on your system's MCU or processor. This allows data exchange between your system and the Ethernet switch.

4. Management Interface Pins: The management interface pins (MDIO and MDC) should be connected to your system's management bus. This allows your system to configure and monitor the KSZ8863MLLI.

5. Strap Options Pins: The KSZ8863MLLI features several Strap Option pins that need to be set according to your system requirements during power-up.

Design Considerations when using KSZ8863MLLI:

- Power Supply Quality: The KSZ8863MLLI needs a stable power supply. Therefore, any noise on the power supply lines must be mitigated, usually through decoupling capacitors.

- PCB Layout: Signal integrity should be preserved by adhering to best practices for high-speed PCB layout. This is crucial for the MAC and PHY data lines in particular.

- Thermal Considerations: Depending on the application, the KSZ8863MLLI may generate a significant amount of heat. Proper thermal management is necessary.

- Hardware Protection: Measures should be implemented to protect the KSZ8863MLLI from electrical overstress, such as overvoltage or overcurrent conditions.

In a nutshell, the KSZ8863MLLI offers a comprehensive solution for integrating Ethernet connectivity into a multitude of devices, ensuring optimal performance and reliability.
