Name: KSZ8721BL
Brand: Microchip Technology
SKU: KSZ8721BL
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Microchip Technology KSZ8721BL

Part No.:: KSZ8721BL

Manufacturer:: Microchip Technology

Package:: 48-LQFP

Datasheet:: KSZ8721BL.pdf

Description:: IC TRANSCEIVER FULL 1/1 48LQFP

In Stock:: 2591

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

KSZ8721BL Specifications

Package/Case:
48-LQFP
Packaging:
Tray
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
MII, RMII
NumberofDrivers/Receivers:
1/1
Duplex:
Full
ReceiverHysteresis:
-
DataRate:
-
Voltage-Supply:
3V ~ 3.6V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

KSZ8721BL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including KSZ8721BL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for KSZ8721BL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

KSZ8721BL information

Views：

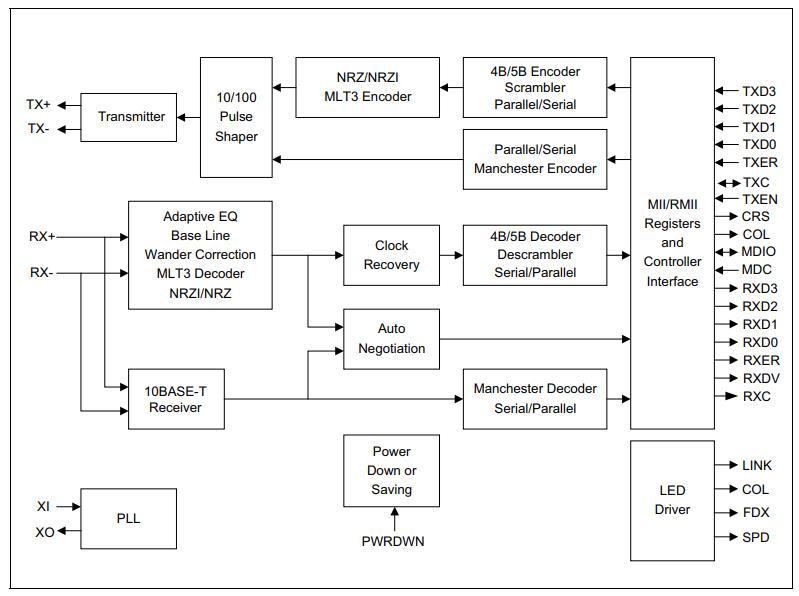

KSZ8721BL Typical application Circuitry

KSZ8721BL

The KSZ8721BL serves as a crucial pivot in the realm of networking hardware, functioning as a 10/100Base-T/TX Physical Layer Transceiver. Its design emphasizes versatility, making it compatible with both 10BASE-T and 100BASE-TX Ethernet protocols.

Application Scenarios: The KSZ8721BL is typically incorporated in:

- Ethernet hubs and switches.

- Internet of Things (IoT) devices that necessitate wired Ethernet connections.

- Router and gateway devices to manage data traffic.

- Embedded systems that require Ethernet communication.

Main Parameters:

1. Auto-Negotiation: One salient feature of the KSZ8721BL is its auto-negotiation capability. It can automatically determine the highest speed possible with the counterpart device and set the connection accordingly.

2. Power Management: It offers energy detection and power-down features, thus saving energy when the network is inactive.

3. Interface choices: The chip provides versatility in connection types by offering both MII (Media Independent Interface) and RMII (Reduced Media Independent Interface) choices.

Circuit Connection:

Imagine deploying the KSZ8721BL in an IoT device that requires a stable, wired Ethernet connection:

1. Power Supply: The VDDA (Pin 48) and VDDD (Pin 24) should be connected to a 3.3V power source, whereas the VSSA (Pins 1, 25, 49) and VSSD (Pins 12, 23) are grounded.

2. Ethernet Connector: The chip's RX+ (Pin 40) and RX- (Pin 39) pins get connected to the respective receive pins of an Ethernet jack. Similarly, TX+ (Pin 42) and TX- (Pin 41) connect to the jack's transmit pins.

3. Interface options: The chip offers both MII (Media Independent Interface) and RMII (Reduced Media Independent Interface) options, giving users a variety of connection kinds.

4. Clock Source: If using MII, XI (Pin 46) should be connected to a 25MHz crystal's output, and XO (Pin 45) to the crystal's input. For RMII, a 50MHz external clock source should be connected to the XI pin.

5. Data Connections: For MII, data pins MDI0-3 (Pins 29-32) of KSZ8721BL should be interfaced with the data pins of the controller or microprocessor. In the RMII setup, only MDI0 and MDI1 are utilized.

Design Considerations:

1. Grounding: Ensuring proper grounding is imperative for noise reduction. Use a solid ground plane beneath the KSZ8721BL.

2. Supply Decoupling: Close to the VDDA and VDDD pins, place decoupling capacitors to filter out any voltage spikes or noise.

3. Heat Dissipation: Being a transceiver, the KSZ8721BL can generate heat during operations. Think about adding a heat sink or making sure the equipment is designed with adequate airflow.

4. Physical Placement: Since this chip interfaces with the Ethernet connector, strategically place the KSZ8721BL to reduce the length of traces, minimizing potential interference.

To summarize, the KSZ8721BL embodies the integration of high-speed networking into a single chip. Whether in IoT devices, hubs, or other networked systems, its versatility and robustness make it a top choice for Ethernet communication. Proper design considerations, such as effective grounding and component placement, can optimize the performance of the KSZ8721BL in any application.
