ISSI, Integrated Silicon Solution Inc IS42S16160J-7TLI-TR

Part No.:: IS42S16160J-7TLI-TR

Manufacturer:: ISSI, Integrated Silicon Solution Inc

Package:: 54-TSOP (0.400, 10.16mm Width)

Datasheet:: IS42S16160J-7TLI-TR.pdf

Description:: IC DRAM 256MBIT PAR 54TSOP II

In Stock:: 2401

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IS42S16160J-7TLI-TR Specifications

Package/Case:
54-TSOP (0.400, 10.16mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
MemoryType:
Volatile
MemoryFormat:
DRAM
Technology:
SDRAM
MemorySize:
256Mb (16M x 16)
MemoryInterface:
Parallel
ClockFrequency:
143 MHz
WriteCycleTime-WordPage:
-
AccessTime:
5.4 ns
Voltage-Supply:
3V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

IS42S16160J-7TLI-TR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IS42S16160J-7TLI-TR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IS42S16160J-7TLI-TR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IS42S16160J-7TLI-TR information

Views：

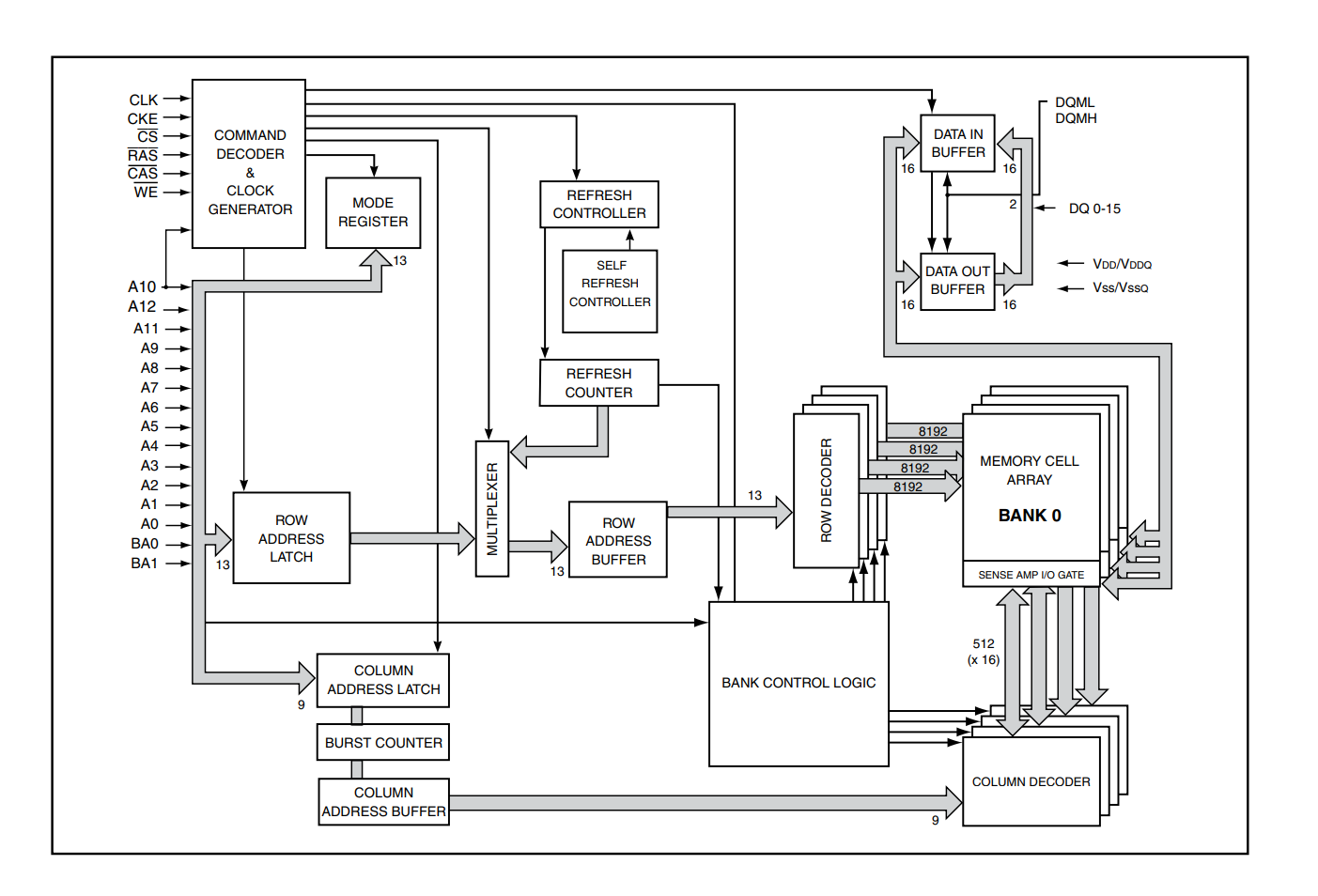

IS42S16160J-7TLI-TR Typical application Circuitry

IS42S16160J-7TLI-TR

The IS42S16160J-7TLI-TR is an integral part of the SDRAM (Synchronous Dynamic Random Access Memory) family, known for delivering fast data transfer and the ability to synchronize with the system bus. Developed by ISSI (Integrated Silicon Solution, Inc.), this device is designed to meet the rigorous demands of modern electronic systems, including digital signal processing, networking, and more. Expounding on the intricacies of the IS42S16160J-7TLI-TR, this article will elucidate its pin configuration and provide a detailed guide on establishing accurate circuit connections.

1. Address Pins (A0-A12): These pins are used to address specific memory locations within the SDRAM. Connect them to the corresponding address lines from your memory controller or microcontroller.

2. Data Pins (DQ0-DQ15): These are the bi-directional data bus pins. Connect them to the data lines of your system, ensuring appropriate buffering, especially in bus-oriented systems.

3. Control Pins:

- RAS#, CAS#, WE#: Row Address Strobe, Column Address Strobe, and Write Enable pins, respectively. These pins coordinate with the memory controller to execute commands like read, write, and refresh.

- CS#: Chip Select pin. Use this pin to enable or disable the IS42S16160J-7TLI-TR in the system.

- CKE: Clock Enable pin. A logic signal here determines whether the internal clock operations and input buffers are active or placed in a low-power standby mode.

4. Clock Pins (CLK): This pin is vital for synchronization. Connect it to the system clock source, ensuring that its frequency matches the specifications outlined for the IS42S16160J-7TLI-TR.

5. Bank Select Pins (BA0, BA1): These pins decide which memory bank within the SDRAM is accessed for read or write operations. Connect them to the corresponding lines on the memory controller.

6. Power and Ground Pins:

- VDD, VSS: Connect these to the main power supply and ground, respectively.

- VDDQ, VSSQ: These pins handle the I/O power and ground. Ensure a clean power supply for optimal performance.

7. NC (No Connect): Leave these pins unconnected. They serve no functional purpose in standard applications.

8. Additional Circuitry Considerations:

- Incorporate decoupling capacitors close to the VDD and VSS pins to minimize noise and stabilize the power supply.

- Ensure signal integrity by adhering to recommended trace impedance and keeping data and address lines as short as possible.
