Infineon Technologies IRS2092STRPBF

Part No.:: IRS2092STRPBF

Manufacturer:: Infineon Technologies

Package:: 16-SOIC

Datasheet:: IRS2092STRPBF.pdf

Description:: IC AMP CLASS D MONO 16SOIC

In Stock:: 3813

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRS2092STRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
Type:
Class D
OutputType:
1-Channel (Mono)
MaxOutputPowerxChannels@Load:
-
Voltage-Supply:
10V ~ 18V
Features:
Depop, Short-Circuit Protection
MountingType:
Surface Mount
OperatingTemperature:
-40°C ~ 125°C (TA)

IRS2092STRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRS2092STRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRS2092STRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRS2092STRPBF information

Views：

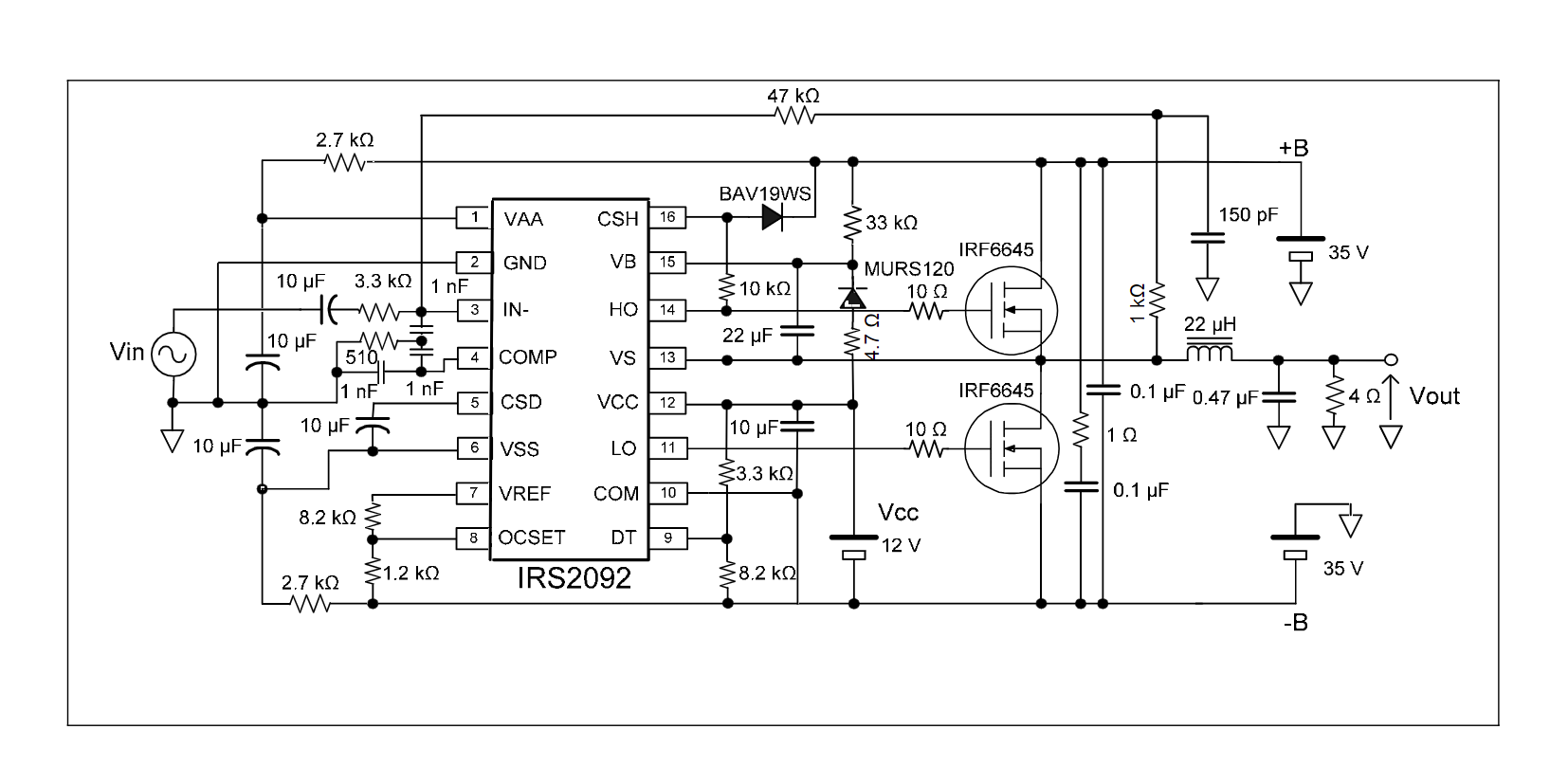

IRS2092STRPBF Typical application Circuitry

IRS2092STRPBF

The IRS2092STRPBF, a component hailed from the IR's rich portfolio of ICs, emerges as a high-performance audio class D audio amplifier driver with PWM modulator. With its integrated protection features and robust design, the IRS2092STRPBF is well-suited for high-quality audio applications, ensuring precision and reliability. This piece will provide a deep dive into the series to which IRS2092STRPBF belongs and elucidate the pin-by-pin connectivity methodology.

1. VAA: Attach this pin to the high voltage power source, which is usually between 20 and 200 volts.

2. COM: It is necessary to connect the analog ground reference pin to the system ground.

3. VSS: Usually, the system ground is directly linked to the digital ground pin.

4. IN+ and IN-: These pins are the positive and negative audio signal inputs respectively. They're typically interfaced with the outputs of a preceding pre-amplifier stage or audio source.

5. SD (Shutdown): This pin facilitates the shutdown feature of the IRS2092STRPBF. By applying an appropriate logic level, the IC can be toggled between operational and non-operational states.

6. VS: An essential terminal which connects to the source of the power MOSFET, forming part of the output stage.

7. VB: This pin is tied to a floating bootstrap voltage, essential for driving the high-side MOSFET gate in a half-bridge configuration.

8. VCC: The logic power supply pin, it usually requires a voltage of 10V to 20V for standard operation.

9. LIN and HIN: These are logic inputs for the low-side and high-side gate drivers, respectively.

10. LO and HO: The corresponding outputs of the logic inputs, these drive the gates of the low-side and high-side power MOSFETs.

11. DT (Dead Time): A crucial pin for setting the dead time in the amplifier, typically connected to a resistor to ground.

12. CS (Current Sense): This pin is utilized for over-current protection. With the power MOSFET source, it is usually linked in series with a resistor.

13. CSD (Current Sense Disable): By modulating this pin, the current sense protection can be activated or deactivated.

14. Integral Circuit Tips:

- Decoupling and Stability: Integrate decoupling capacitors, especially near the VCC pin, to ensure stability and minimize noise.

- Protection Features: Exploit the inherent protection features of the IRS2092STRPBF. This entails configuring the over-current sensing and under-voltage lockout effectively.

- Heat Dissipation: Given the potential for the IC to produce heat, especially at high output power, ensure there's sufficient heat sinking and adequate airflow.
