Infineon Technologies IRS2092SPBF

Part No.:: IRS2092SPBF

Manufacturer:: Infineon Technologies

Package:: 16-SOIC

Datasheet:: IRS2092SPBF.pdf

Description:: IC AMP CLASS D MONO 16SOIC

In Stock:: 2168

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRS2092SPBF Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Discontinued at Mosen
Type:
Class D
OutputType:
1-Channel (Mono)
MaxOutputPowerxChannels@Load:
-
Voltage-Supply:
10V ~ 18V
Features:
Depop, Short-Circuit Protection
MountingType:
Surface Mount
OperatingTemperature:
-40°C ~ 125°C (TA)

IRS2092SPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRS2092SPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRS2092SPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRS2092SPBF information

Views：

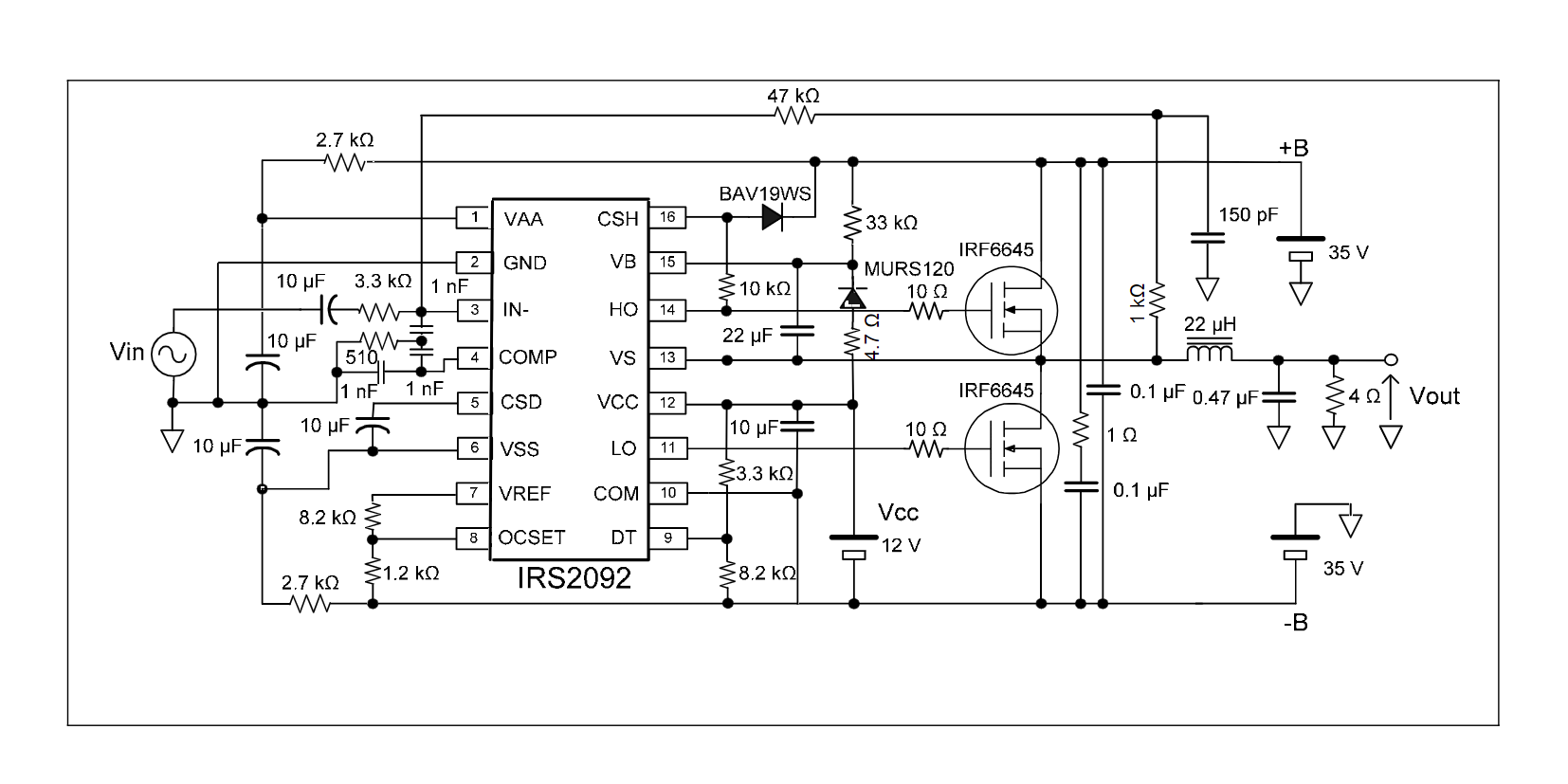

IRS2092SPBF Typical application Circuitry

IRS2092SPBF

The IRS2092SPBF, a distinguished product from the International Rectifier's arsenal, is an integrated high-performance Class D audio amplifier driver. With features tailored for high-fidelity applications, the IRS2092SPBF promises efficiency, compactness, and exceptional audio performance. By seamlessly interfacing with IGBTs and MOSFETs, this IC becomes a pivotal component in Class D amplification systems. Here, we shall elucidate the intricacies of integrating the IRS2092SPBF into electronic circuits, highlighting pin-specific guidance for ensuring optimal results.

1. VAA and VSS (Analog Power and Ground):

- VAA is the IC's analog power supply pin. It should be tied to a positive voltage source, typically 12V to 20V.

- The system ground should be linked to VSS, which stands for the analog ground.

2. IN+ and IN- (Differential Input Pins): IN+ and IN- are the differential input terminals for the audio signal. They accept the incoming analog audio signals, which get modulated into PWM signals within the IRS2092SPBF.

3. LIN (Linear Input Pin): Connect this pin to the output of the analog signal source. It provides an alternative single-ended audio input option.

4. ITRIP (Current Trip Input): This pin plays a crucial role in the protection mechanism. It receives feedback from an external current-sensing resistor, triggering the IC's protection when the current surpasses a set threshold.

5. SD (Shutdown Pin): By asserting this pin, you can swiftly disable the IRS2092SPBF. Connect it to a logic-level control signal for dynamic shutdown capabilities.

6. VREF (Reference Voltage Output): This pin offers a stable voltage reference, generally used for biasing purposes in the associated circuitry.

7. COM (Signal Ground): This pin serves as the signal ground for the IC and must be linked to the system ground.

8. VB (High Side Floating Supply Voltage): The high-side gate driver is supplied via this terminal. For proper biasing, it is usually linked using a bootstrap capacitor setup.

9. VCC (Low Side Gate Drive Supply Voltage): VCC provides power to the low-side gate driver circuitry within the IRS2092SPBF. A appropriate positive voltage source must be attached to this pin.

10. VS (High Side Floating Supply Offset Voltage): The VS pin should be linked to the source of the high-side MOSFET or IGBT.

11. HO and LO (High and Low Side Driver Outputs): HO and LO pins deliver the PWM-modulated signals to the gates of the high-side and low-side switching devices, respectively.

12. Guidelines and Precautions:

- When integrating the IRS2092SPBF into a circuit, provision for appropriate decoupling capacitors close to the VAA, VCC, and VB pins is essential to stabilize the supply and filter out noise.

- Ensuring proper heat dissipation for the IRS2092SPBF, especially in high-power applications, is crucial. Utilize heat sinks and maintain good airflow to prevent thermal issues.

- Always consult the IRS2092SPBF datasheet to align your design with the recommended operating conditions and electrical specifications.

In summary, the IRS2092SPBF, by melding efficiency and audio precision, offers a compelling choice for Class D audio applications. Proper pin-to-pin connections, supported by robust design practices, can unlock its full potential, offering unparalleled audio experiences. As always, for the nuanced intricacies and potential updates, the IRS2092SPBF datasheet remains an indispensable reference.
