What is the Additional Feature ?

Name: INA199A2DCKR
Brand: Texas Instruments
SKU: INA199A2DCKR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments INA199A2DCKR

Part No.:: INA199A2DCKR

Manufacturer:: Texas Instruments

Package:: 6-TSSOP, SC-88, SOT-363

Datasheet:: INA199A2DCKR.pdf

Description:: IC OPAMP CURR SENSE 14KHZ SC70-6

In Stock:: 2901

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

INA199A2DCKR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Function:
Current Sense
SensingMethod:
High/Low-Side
Accuracy:
±1.5%
Voltage-Input:
-0.3V ~ 26V
Current-Output:
-
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

INA199A2DCKR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including INA199A2DCKR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for INA199A2DCKR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

INA199A2DCKR information

Views：

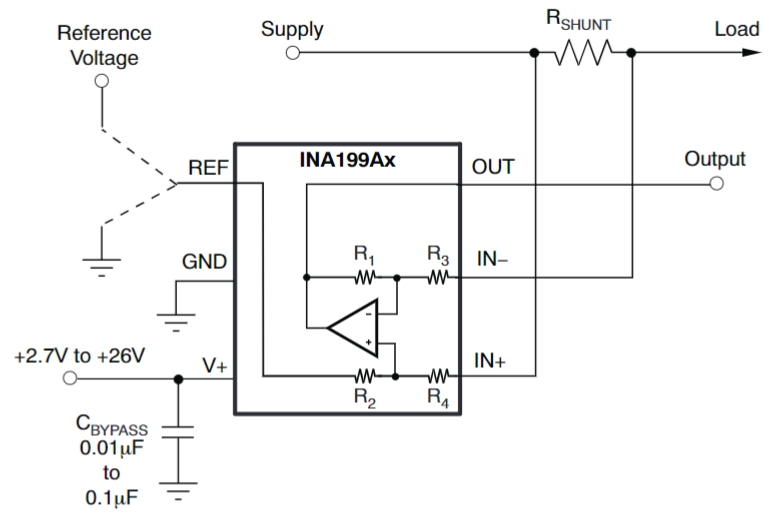

INA199A2DCKR Typical application Circuitry

INA199A2DCKR

INA199A2DCKR is a precision, low-power, voltage-output, current-shunt monitor from Texas Instruments. It is intended to provide a proportional voltage in response to voltage drops across shunt resistors, which are used to detect current in systems. This device is widely utilized in battery management, power management, and overcurrent protection applications due to its high accuracy and wide input common-mode voltage range.

Application Scenarios

INA199A2DCKR is ideally suited for applications like power supply monitoring, battery charging systems, and load detection. It is also used in portable devices for current monitoring and in automotive systems for battery management.

Parameter Features

- High Accuracy: Ensures precise current measurement for effective system monitoring and control.

- Broad Input Compatibility with both high- and low-side current sensing systems is made possible by the common-mode voltage range.

- Low Quiescent Current: This feature reduces power consumption, which makes it perfect for battery-operated devices.

Circuit Connection in a Specific Application Scenario

Consider a battery charging system as an application for the INA199A2DCKR. Here's a detailed explanation of the circuit connection:

- Power Supply Connection: Connect the V+ pin (pin 5) of the INA199A2DCKR to the system power supply. This supply should be within the operating voltage range of the IC to ensure proper functionality.

- Shunt Resistor Integration: Connect a shunt resistor between the positive terminal of the battery and the charging circuit. The INA199A2DCKR's IN+ pin (pin 6) is connected to the side of the shunt resistor closer to the battery, and the IN- pin (pin 4) to the other side of the shunt resistor.

- Output Voltage Monitoring: The OUT pin (pin 1) of the INA199A2DCKR provides a voltage output proportional to the current through the shunt resistor. This pin should be connected to an analog input of a microcontroller or an ADC for current monitoring.

- Ground Connection: To ensure precise readings, make sure the INA199A2DCKR's GND pin (pin 2) is connected to the system ground.

Design Considerations

When designing circuits with the INA199A2DCKR, several important aspects need to be taken into account:

- Shunt Resistor Selection: Choose a shunt resistor with an appropriate value to ensure accurate current measurement without introducing significant power loss in the charging path.

- Common-Mode Voltage: Ensure that the voltage across the shunt resistor falls within the common-mode voltage range of the INA199A2DCKR to maintain accuracy.

- Signal Filtering: Consider adding filtering components at the output to reduce noise, especially in noisy environments or when measuring low currents.

- Thermal Considerations: Pay attention to the power dissipation across the shunt resistor and the INA199A2DCKR, and consider heat sinking if necessary to maintain temperature within safe limits.

Implementing the INA199A2DCKR in a battery charging system involves precise connections and considerations around the shunt resistor, common-mode voltage, and thermal management to ensure accurate and reliable current monitoring for effective battery management.

INA199A2DCKR FAQ

1. How to order INA199A2DCKR on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that INA199A2DCKR is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the INA199A2DCKR. All suppliers must pass our qualification reviews before they can publish their products including INA199A2DCKR on icwhale.com; we pay more attention to the channels and quality of INA199A2DCKR products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the INA199A2DCKR price and inventory displayed accurate?

The price and inventory of INA199A2DCKR fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of INA199A2DCKR?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the INA199A2DCKR we delivered, we will accept the replacement or return of the INA199A2DCKR only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of INA199A2DCKR.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
