Texas Instruments INA199A1DCKR

Part No.:: INA199A1DCKR

Manufacturer:: Texas Instruments

Package:: 6-TSSOP, SC-88, SOT-363

Datasheet:: INA199A1DCKR.pdf

Description:: IC OPAMP CURR SENSE 14KHZ SC70-6

In Stock:: 2891

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

INA199A1DCKR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Function:
Current Sense
SensingMethod:
High/Low-Side
Accuracy:
±1.5%
Voltage-Input:
-0.3V ~ 26V
Current-Output:
-
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

INA199A1DCKR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including INA199A1DCKR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for INA199A1DCKR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

INA199A1DCKR information

Views：

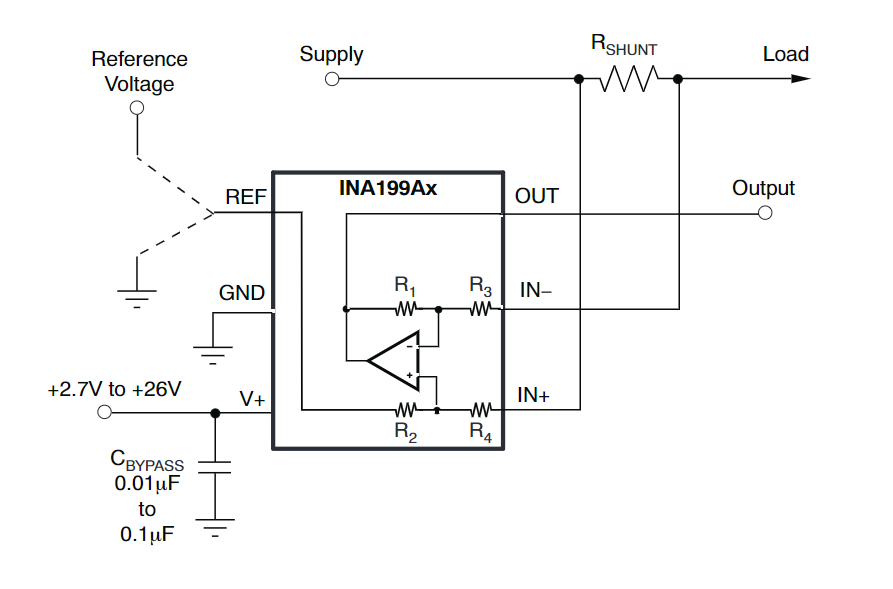

INA199A1DCKR Typical application Circuitry

INA199A1DCKR

Belonging to the revered INA199 series, the INA199A1DCKR is a voltage output, current-shunt monitor, capable of amplifying differential signals from shunt resistors. It has carved its niche by offering a low-power solution for situations demanding high accuracy and bandwidth without a significant addition to the power budget.

1. Power Supply Pins:

- V+ (Pin 5): This is the supply voltage pin for INA199A1DCKR, requiring a stable input, which directly influences the accuracy and functionality of current sensing.

- GND (Pin 2): Establishing the common ground reference, this pin is crucial for the internal operations of the chip and external signal measurements.

2. Sensing Inputs:

- IN+ and IN- (Pins 3 and 4): These pins are differential input terminals connected across the shunt resistor. They accept the voltage differential created by the current flowing through the shunt, amplifying it for a readable output.

3. Output:

- OUT (Pin 1): This output pin provides the amplified voltage that corresponds to the differential input, suitably scaled for reading by an ADC or direct use in control loops.

4. Shunt Selection: For INA199A1DCKR to function accurately, choosing the right shunt resistor is vital. It must have a tolerance suitable for the desired current measurement accuracy and be able to handle the power dissipation.

5. Layout Considerations: Keeping the traces to IN+ and IN- short and matched in length can significantly reduce noise and improve accuracy. Additionally, proper grounding techniques are essential to avoid ground loops.

6. Filtering: If the application operates in a noisy environment, adding filter capacitors to the inputs and output of the INA199A1DCKR can help in achieving a cleaner signal.

7. Protection Features: Implementing over-voltage protection on the input pins ensures that the INA199A1DCKR is safeguarded from any inadvertent spikes that may occur in the system.

In encapsulation, the INA199A1DCKR emerges as a cornerstone in precision current sensing, leveraging its low power consumption and high accuracy. This detailed understanding lays a foundation, but consulting the specific datasheet is recommended for detailed information and circuit examples. This approach ensures a nuanced grasp, allowing for an optimized application within various systems, harnessing the full potential of the INA199A1DCKR's capabilities.
