Infineon Technologies ICL5102XUMA1

Part No.:: ICL5102XUMA1

Manufacturer:: Infineon Technologies

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: ICL5102XUMA1.pdf

Description:: IC LED DRIVER OFFL NO 16DSO

In Stock:: 3533

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ICL5102XUMA1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Obsolete
Type:
AC DC Offline Switcher
Topology:
Half-Bridge
InternalSwitch(s):
No
NumberofOutputs:
1
Voltage-Supply(Min):
8.5V
Voltage-Supply(Max):
18V
Voltage-Output:
-
Current-Output/Channel:
-
Frequency:
1.3MHz
Dimming:
No
Applications:
LED Lighting
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Surface Mount

ICL5102XUMA1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ICL5102XUMA1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ICL5102XUMA1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ICL5102XUMA1 information

Views：

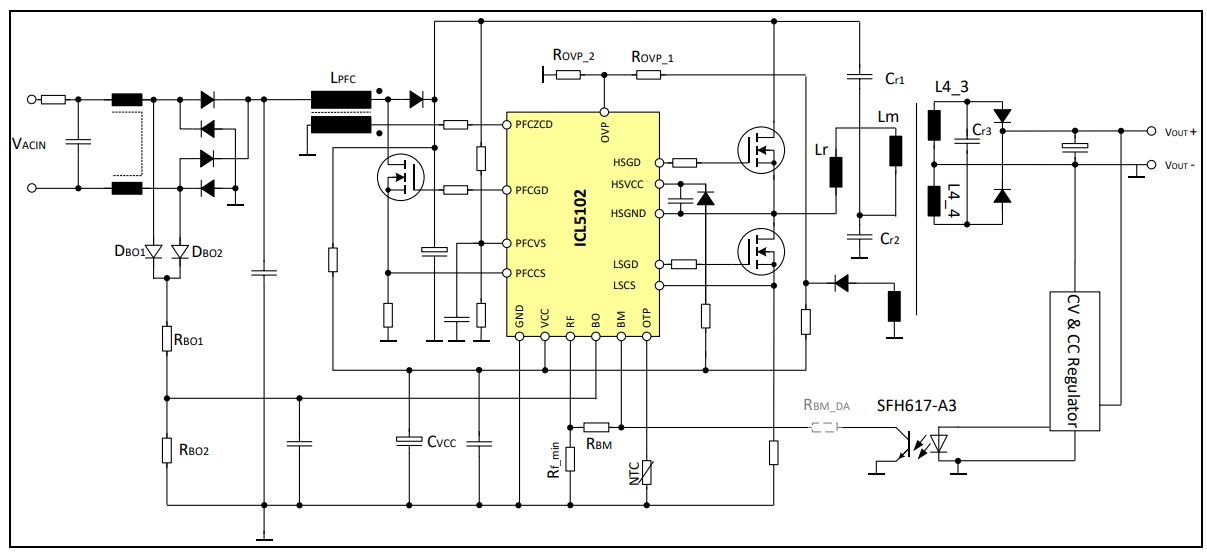

ICL5102XUMA1 Typical application Circuitry

ICL5102XUMA1

ICL5102XUMA1 is a high-performance resonant controller IC designed by Infineon Technologies, primarily intended for use in switch-mode power supplies (SMPS) such as LED drivers, PC power supplies, and high-efficiency power converters. The ICL5102XUMA1 integrates various features to enhance power efficiency and reliability, including zero-voltage switching (ZVS), frequency modulation for improved electromagnetic interference (EMI) performance, and various protection mechanisms.

Application Scenario: LED Driver for Lighting Applications

In LED lighting applications, the ICL5102XUMA1 is used to control and drive LEDs efficiently, ensuring optimal brightness and longevity of the lighting system.

Parameter Features

- High Efficiency: The ICL5102XUMA1 is designed for high-efficiency operation, reducing energy consumption and heat generation.

- Integrated Protections: Features include over-current protection, over-voltage protection, and thermal shutdown to ensure safe operation under abnormal conditions.

- Adjustable Frequency: The operating frequency can be adjusted, allowing for flexibility in design and optimization of EMI characteristics.

LED Driver Circuit Design Using ICL5102XUMA1

When designing an LED driver using the ICL5102XUMA1, consider the following key points:

1. Power Supply Connection: Attach the ICL5102XUMA1's VCC pin to a dependable power source. Ascertain that the voltage level is within the necessary range to guarantee optimal operation of the integrated circuit.

2. Feedback Loop: Connect the feedback pin (FB) to the output to regulate the output voltage or current. This loop ensures that the LEDs receive a constant current or voltage, maintaining stable brightness and preventing damage.

3. Resonant Circuit Components: Connect the resonant tank circuit components (capacitor and inductor) to the ZVS pins. This circuit is crucial for achieving zero-voltage switching, which improves efficiency and reduces switching losses.

4. Output Drive: Connect the gate drive outputs (GATE1 and GATE2) to the gates of the external MOSFETs. The switching transistors that regulate the power supply to the LEDs are powered by these pins.

5. Protection Features: Utilize the built-in protection features by properly configuring the OCP (Over Current Protection), OVP (Over Voltage Protection), and thermal shutdown pins. These protections safeguard the circuit against excessive current, voltage, and overheating.

Design Considerations

When designing with the ICL5102XUMA1, several factors need to be taken into account:

- Component Selection: Choose external components (inductors, capacitors, MOSFETs) that are compatible with the desired operating frequency and power level. Ensure these components can handle the thermal and electrical stresses of the application.

- Thermal Management: Implement an effective thermal management strategy, considering the ICL5102XUMA1 and external power components' heat dissipation requirements. Adequate cooling extends the lifespan of the circuit and maintains efficiency.

- Layout Considerations: Pay attention to the PCB layout, especially the placement of high-frequency and high-power components. Minimize the loop areas to reduce EMI and ensure stable operation.

- EMI Considerations: Take switching frequencies and layout into account while designing the circuit to reduce electromagnetic interference. This may involve selecting appropriate filtering components and shielding techniques.

By carefully addressing these points, the ICL5102XUMA1 can be effectively utilized in LED driver circuits, providing efficient, reliable, and high-quality lighting solutions.
