Nexperia USA Inc. HEF4093BT-Q100,118

Part No.:: HEF4093BT-Q100,118

Manufacturer:: Nexperia USA Inc.

Package:: 14-SO

Datasheet:: HEF4093BT-Q100,118.pdf

Description:: IC GATE NAND SCHMIT 4CH 2IN 14SO

In Stock:: 2500

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HEF4093BT-Q100,118 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
Automotive, AEC-Q100, 4000B
ProductStatus:
Active
LogicType:
NAND Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
Schmitt Trigger
Voltage-Supply:
3V ~ 15V
Current-Quiescent(Max):
1 µA
Current-OutputHighLow:
3.4mA, 3.4mA
LogicLevel-Low:
1.5V ~ 4V
LogicLevel-High:
3.5V ~ 11V
MaxPropagationDelay@VMaxCL:
60ns @ 15V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

HEF4093BT-Q100,118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HEF4093BT-Q100,118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HEF4093BT-Q100,118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

HEF4093BT-Q100,118 information

Views：

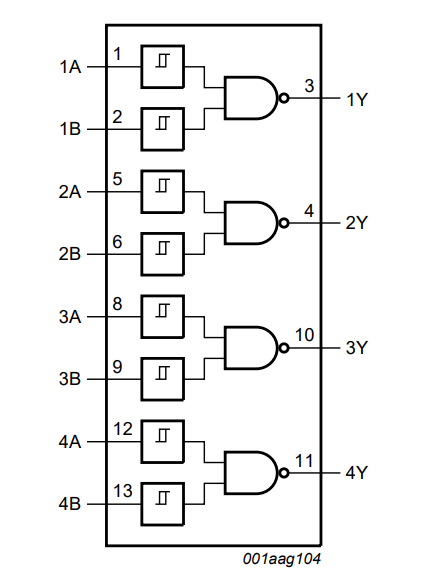

HEF4093BT-Q100,118 Typical application Circuitry

HEF4093BT-Q100,118

The HEF4093BT-Q100,118 is part of the HEF series, renowned for its CMOS technology and versatility in electronic applications. Specifically, the HEF4093BT-Q100,118 is a quad 2-input NAND Schmitt trigger, celebrated for its high-level noise immunity and hysteresis characteristics, making it an ideal choice for an array of signal conditioning and wave-shaping applications.

1. Series Context: The HEF4093BT-Q100,118 belongs to a line of chips built on CMOS technology. With CMOS's inherent advantages, including low power consumption and high noise immunity, it's no wonder the HEF series is ubiquitously chosen by designers and engineers worldwide.

2. Voltage Territories:

- The life force of the HEF4093BT-Q100,118 is intrinsically linked to its VDD terminal. To harness its capabilities, link this connection to the zenith of your supply voltage, which might peak at +15V, contingent on your application's specific requirements.

- In contrast, the VSS terminal serves as the grounding anchor, ensuring a steadfast voltage equilibrium.

3. NAND Schmitt Triggers:

- The HEF4093BT-Q100,118 houses four independent NAND Schmitt triggers. Each unit has a single output and two inputs. The input terminals are denoted as "A_n" and "B_n", while the output terminal is labeled "Y_n" (with "n" indicating the gate number, ranging from 1 to 4).

- These triggers are designed to operate even when input signals are slow or noisy, thanks to the integrated Schmitt trigger action.

4. Signal Ingress and Egress: Input your desired signals into the "A_n" and "B_n" terminals. The NAND Schmitt action will process the signals, factoring in hysteresis, and will then yield an output via the respective "Y_n" channel.

5. Circuit Wisdom:

- While the HEF4093BT-Q100,118 embodies resilience, it thrives in balanced conditions. Integrating a decoupling capacitor, strategically positioned between the VDD and VSS terminals and close to the IC, creates a harmonious environment.

- Owing to its CMOS pedigree, the HEF4093BT-Q100,118 commands cautious handling. Implement rigorous anti-static precautions to safeguard its pristine condition.

- To prevent unpredictable behavior, ensure all input terminals ("A_n" and "B_n") are decisively connected, avoiding any indecisive voltage states.

To encapsulate, the HEF4093BT-Q100,118, a luminary in the CMOS-based HEF series, offers unparalleled benefits with its quad 2-input NAND Schmitt triggers. While this narrative provides a structured integration blueprint, the chip's official datasheet pulsates as the beacon of wisdom, brimming with detailed insights and guidelines essential for every circuit maestro.
