NXP USA Inc. HEF4093BT/AUJ

Part No.:: HEF4093BT/AUJ

Manufacturer:: NXP USA Inc.

Package:: 14-SO

Datasheet:: HEF4093BT/AUJ.pdf

Description:: IC GATE NAND SCHMIT 4CH 2IN 14SO

In Stock:: 2875

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HEF4093BT/AUJ Specifications

Packaging:
Tape & Reel (TR)
Series:
4000B
ProductStatus:
Active
LogicType:
NAND Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
Schmitt Trigger
Voltage-Supply:
3V ~ 15V
Current-Quiescent(Max):
1 µA
Current-OutputHighLow:
3.4mA, 3.4mA
LogicLevel-Low:
1.5V ~ 4V
LogicLevel-High:
3.5V ~ 11V
MaxPropagationDelay@VMaxCL:
60ns @ 15V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

HEF4093BT/AUJ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HEF4093BT/AUJ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HEF4093BT/AUJ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

HEF4093BT/AUJ information

Views：

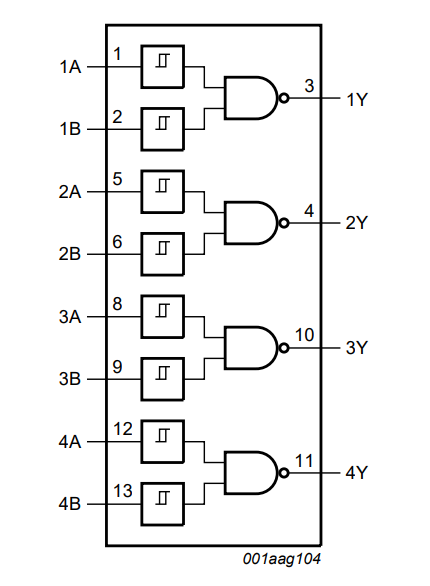

HEF4093BT/AUJ Typical application Circuitry

HEF4093BT AUJ

The HEF4093BT/AUJ belongs to the revered CMOS 4000 series, which is a family of integrated circuits (ICs) known for their low power consumption, wide operating voltage range, and versatile functionality. Within this expansive family, the HEF4093BT/AUJ is specifically characterized as a quad 2-input NAND Schmitt trigger.

- Versatility: Given its Schmitt trigger inputs, it can process signals with slow rise and fall times or signals that are noisy, making it versatile for various applications.

- Quad Configuration: The HEF4093BT/AUJ houses four independent NAND gates, granting flexibility in design schemas.

1. Voltage Domains:

- The VDD terminal is the beating heart of the HEF4093BT/AUJ. Secure this to your desired supply voltage, with the capability to span up to +15V depending on your operational requirements.

- In contrast, anchor the VSS terminal steadfastly to the circuit's ground, ensuring a consistent voltage reference.

2. NAND Gate Dynamics:

- The HEF4093BT/AUJ showcases four individual NAND gates. Each gate sports two input terminals and a singular output. The inputs are labeled A_n and B_n, while the outputs are denoted as Y_n (where "n" represents the gate number from 1 to 4).

- To employ a specific gate, inject signals into its A_n and B_n terminals. The output, Y_n, will then provide the NAND operation result, with the added Schmitt trigger functionality enhancing signal integrity.

3. Operational Insights:

- The Schmitt trigger capability within each gate means that the HEF4093BT/AUJ can be utilized for applications that require hysteresis, such as pulse shaping, waveform generation, and logic level conversion.

- To craft oscillators or specific logic configurations, interconnect multiple gates within the chip, leveraging the Y_n outputs and A_n & B_n inputs as required.

4. Wise Considerations:

- The HEF4093BT/AUJ, while engineered for resilience, appreciates stable environments. Introduce a decoupling capacitor between the VDD and VSS terminals to ensure noise immunity.

- Owing to its CMOS lineage, the HEF4093BT/AUJ demands reverence. Imbue your handling techniques with anti-static precautions to preserve the chip's integrity.

- Unconnected inputs can induce unpredictable behavior. Dedicate their pathways by consciously linking them to either VDD or VSS, preventing floating states.

In summary, the HEF4093BT/AUJ is a testament to the engineering prowess of the CMOS 4000 series. With its inherent flexibility and robust design, it's primed to tackle diverse electronic challenges. Always refer to the official datasheet for granular insights, ensuring the optimum utilization of this semiconductor prodigy.
