Nexperia USA Inc. HEF4093BT,653

Part No.:: HEF4093BT,653

Manufacturer:: Nexperia USA Inc.

Package:: 14-SO

Datasheet:: HEF4093BT,653.pdf

Description:: IC GATE NAND SCHMIT 4CH 2IN 14SO

In Stock:: 3184

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HEF4093BT,653 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
4000B
ProductStatus:
Active
LogicType:
NAND Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
Schmitt Trigger
Voltage-Supply:
3V ~ 15V
Current-Quiescent(Max):
1 µA
Current-OutputHighLow:
3.4mA, 3.4mA
LogicLevel-Low:
1.5V ~ 4V
LogicLevel-High:
3.5V ~ 11V
MaxPropagationDelay@VMaxCL:
60ns @ 15V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

HEF4093BT,653 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HEF4093BT,653 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HEF4093BT,653 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

HEF4093BT,653 information

Views：

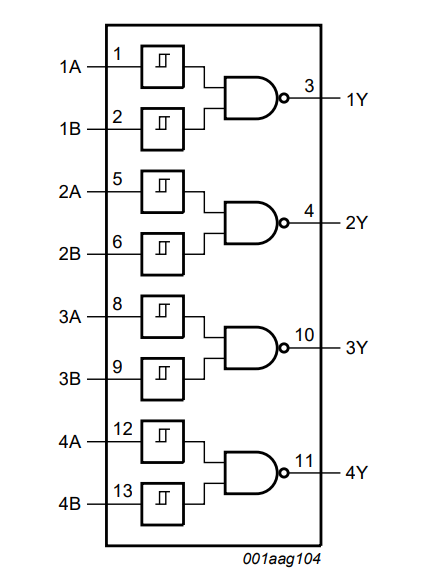

HEF4093BT,653 Typical application Circuitry

HEF4093BT,653

The HEF4093BT,653 is a prominent member of the 4000B series of the CMOS (Complementary Metal-Oxide-Semiconductor) family, revered for its impressive low power consumption and wide operating voltage range. Specifically, the HEF4093BT,653 is a quad 2-input NAND Schmitt trigger, which implies that it features four individual 2-input NAND gates with Schmitt trigger action on each input. The Schmitt trigger operation gives the gates the ability to transform progressively changing input signals into precisely specified, jitter-free output signals.

1. Voltage Provisioning:

- The HEF4093BT,653 draws its operating power through the VDD pin. This pin should be connected to your chosen supply voltage, typically up to +15V based on the chip's specifications and design requirements.

- Conversely, the VSS pin must be connected securely to the circuit's ground, setting a reference voltage point for operations.

2. NAND Gate Configuration: The HEF4093BT,653 houses four independent 2-input NAND gates. Each gate has a single output and a pair of inputs. The inputs for the four gates are labeled as "A1, B1", "A2, B2", "A3, B3", and "A4, B4" respectively. The corresponding outputs for these gates are designated as "Y1", "Y2", "Y3", and "Y4".

3. Signal Input: Introduce your signals to the input pins (A_n and B_n where n is the gate number from 1 to 4). Due to the Schmitt trigger action in the HEF4093BT,653, even inputs with slower transitions will be translated into clean and fast transitions at the output.

4. Output Retrieval: The inverted logic output (NAND operation) corresponding to the inputs will be available at the respective "Y_n" terminals.

5. Additional Considerations: For stable operation, it's prudent to place a decoupling capacitor (typically 10nF) close to the chip, bridging the VDD and VSS pins. This helps in filtering noise and supply voltage fluctuations.

6. Unconnected Inputs: It's critical to ensure that no input pins are left unconnected (floating) as this could lead to unpredictable behavior. Any unused inputs should be tied to VDD or VSS to set a known logic level.

The HEF4093BT,653, with its inherent flexibility and robust design courtesy of the 4000B series lineage, serves as an indispensable tool in various electronic applications. By adhering to the aforementioned connection guidelines and consulting the chip's official datasheet, enthusiasts and professionals alike can harness the full might of this electronic gem.
