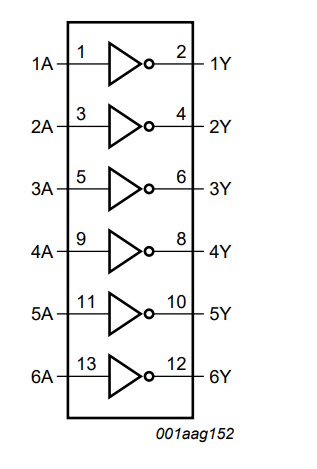

NXP USA Inc. HEF4069UBTT,112

Part No.:: HEF4069UBTT,112

Manufacturer:: NXP USA Inc.

Package:: 14-TSSOP

Datasheet:: HEF4069UBTT,112.pdf

Description:: IC INVERTER 6CH 1-INP 14TSSOP

In Stock:: 3329

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HEF4069UBTT,112 Specifications

Packaging:
Bulk
Series:
4000B
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
-
Voltage-Supply:
3V ~ 15V
Current-Quiescent(Max):
1 µA
Current-OutputHighLow:
3.4mA, 3.4mA
LogicLevel-Low:
1V ~ 2.5V
LogicLevel-High:
4V ~ 12.5V
MaxPropagationDelay@VMaxCL:
30ns @ 15V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount
