What is the Additional Feature ?

Name: HEF4053BTT,112
Brand: Nexperia USA Inc.
SKU: HEF4053BTT,112
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Nexperia USA Inc. HEF4053BTT,112

Part No.:: HEF4053BTT,112

Manufacturer:: Nexperia USA Inc.

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: HEF4053BTT,112.pdf

Description:: IC MUX/DEMUX TRIPLE 2X1 16TSSOP

In Stock:: 2295

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HEF4053BTT,112 Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Bulk,Bulk,Tube
Series:
-
ProductStatus:
Obsolete
SwitchCircuit:
SPDT
Multiplexer/DemultiplexerCircuit:
2:1
NumberofCircuits:
3
On-StateResistance(Max):
155Ohm
Channel-to-ChannelMatching(ΔRon):
5Ohm
Voltage-SupplySingle(V+):
3V ~ 15V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
-
-3dbBandwidth:
70MHz
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
7.5pF
Current-Leakage(IS(off))(Max):
200nA
Crosstalk:
-50dB @ 1MHz
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

HEF4053BTT,112 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HEF4053BTT,112 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HEF4053BTT,112 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

HEF4053BTT,112 information

Views：

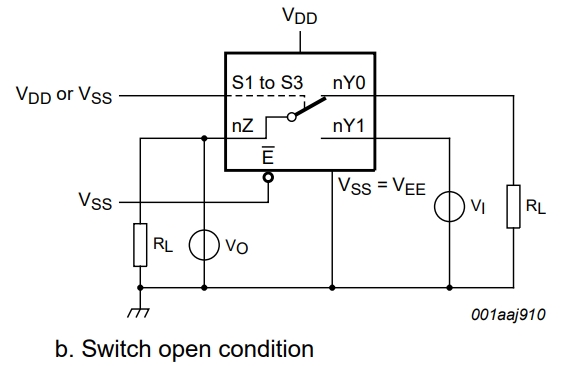

HEF4053BTT,112 Typical application Circuitry

HEF4053BTT,112

The HEF4053BTT,112 is an integrated circuit designed for analog signal switching. It features three independent 2-channel analog multiplexers/demultiplexers, allowing for the routing of analog or digital signals in various configurations.

Functionality: Depending on the status of its control inputs, this integrated circuit (IC) allows the selection of one of two input signals for each of its three channels. Because it can handle both analog and digital signals, it is flexible enough for a wide range of applications.

Applications: The HEF4053BTT,112 is commonly used in signal processing, data acquisition, communication systems, and audio/video switching applications. For example, it can be employed to switch between different input sources in a stereo audio system.

Parameters: The HEF4053BTT,112 device supports many logic levels and can run on a supply voltage between 3 and 15 volts. It ensures minimal signal distortion and leakage with its low on-state resistance and strong off-state isolation.

Circuit Design for Audio Signal Switching:

1. Channel Configuration: Utilize the IC's three channels to switch between multiple audio inputs. Connect each audio input to the corresponding multiplexer inputs (e.g., Input 1 to 1Z and 1Y, Input 2 to 2Z and 2Y, etc.).

2. Output Routing: Link the common output/input terminals (1X, 2X, 3X) to the inputs of an audio processing circuit or directly to an amplifier.

3. Control Mechanism: Employ a microcontroller or digital logic circuit to generate the selection signals for the multiplexers. These signals are applied to the A, B, and C control inputs of the HEF4053BTT,112 to choose the active audio input.

4. Mute Function: If desired, connect a control switch or a microcontroller output to the inhibit input (INH) to simultaneously disable all channels, effectively muting the output.

5. Power Supply Considerations: Connect the VDD and VSS pins to the appropriate power supply levels. Place bypass capacitors close to the IC to filter out power supply noise.

Design Considerations:

- Signal Path Length: To reduce interference and maintain signal integrity, keep signal pathways short.

- Decoupling Capacitors: Use capacitors near the power supply pins to stabilize operation and reduce noise.

- Control Signal Isolation: Separate the control signals from the audio paths to prevent digital noise from affecting the analog signals.

- Effective Grounding: Implement a robust grounding strategy to minimize noise and prevent ground loop issues.

In conclusion, the HEF4053BTT,112 is a versatile component for signal routing in various electronic applications. Careful attention to signal integrity, power supply stability, control signal isolation, and grounding practices is crucial for achieving optimal performance in circuits utilizing this IC.
