Name: HEF4053BT/AUJ
Brand: NXP USA Inc.
SKU: HEF4053BT/AUJ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

NXP USA Inc. HEF4053BT/AUJ

Part No.:: HEF4053BT/AUJ

Manufacturer:: NXP USA Inc.

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: HEF4053BT/AUJ.pdf

Description:: IC ANLG SWITCH TRPL SPDT 16SOIC

In Stock:: 2324

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HEF4053BT/AUJ Specifications

Package/Case:
16-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
SwitchCircuit:
SPDT
Multiplexer/DemultiplexerCircuit:
2:1
NumberofCircuits:
3
On-StateResistance(Max):
155Ohm
Channel-to-ChannelMatching(ΔRon):
5Ohm
Voltage-SupplySingle(V+):
3V ~ 15V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
-
-3dbBandwidth:
70MHz
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
7.5pF
Current-Leakage(IS(off))(Max):
200nA
Crosstalk:
-50dB @ 1MHz
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

HEF4053BT/AUJ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HEF4053BT/AUJ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HEF4053BT/AUJ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

HEF4053BT/AUJ information

Views：

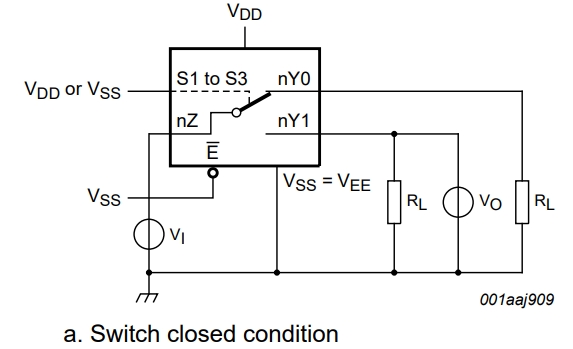

HEF4053BT/AUJ Typical application Circuitry

HEF4053BT AUJ

The HEF4053BT/AUJ is an integrated circuit designed for analog signal switching. It features three independent 2-channel analog multiplexers/demultiplexers, allowing for the routing of analog or digital signals in various configurations.

Functionality: This IC enables the selection of one of two input signals for each of its three channels, based on the state of its control inputs. It can handle both analog and digital signals, making it versatile for different applications.

Applications: The HEF4053BT/AUJ is commonly used in signal processing, data acquisition, communication systems, and audio/video switching applications. For example, it can be employed to switch between different input sources in a stereo audio system.

Parameters: The HEF4053BT/AUJ device operates with a supply voltage ranging from 3V to 15V, accommodating various logic levels. It features low on-state resistance and high off-state isolation, ensuring minimal signal distortion and leakage.

Circuit Design for Audio Signal Switching:

1. Channel Configuration: Utilize the IC's three channels to switch between multiple audio inputs. Connect each audio input to the corresponding multiplexer inputs (e.g., Input 1 to 1Z and 1Y, Input 2 to 2Z and 2Y, etc.).

2. Output Routing: Link the common output/input terminals (1X, 2X, 3X) to the inputs of an audio processing circuit or directly to an amplifier.

3. Control Mechanism: Employ a microcontroller or digital logic circuit to generate the selection signals for the multiplexers. These signals are applied to the A, B, and C control inputs of the HEF4053BT/AUJ to choose the active audio input.

4. Mute Function: If desired, connect a control switch or a microcontroller output to the inhibit input (INH) to simultaneously disable all channels, effectively muting the output.

5. Power Supply Considerations: Connect the VDD and VSS pins to the appropriate power supply levels. Place bypass capacitors close to the IC to filter out power supply noise.

Design Considerations:

- Signal Path Length: Keep the signal paths short to preserve signal integrity and minimize interference.

- Decoupling Capacitors: To stabilize the operation and lower noise, use capacitors close to the power supply pins.

- Control Signal Isolation: Separate the control signals from the audio paths to prevent digital noise from affecting the analog signals.

- Effective Grounding: Implement a robust grounding strategy to minimize noise and prevent ground loop issues.

In conclusion, the HEF4053BT/AUJ is a versatile component for signal routing in various electronic applications. Careful attention to signal integrity, power supply stability, control signal isolation, and grounding practices is crucial for achieving optimal performance in circuits utilizing this IC.
