Nexperia USA Inc. HEF4051BTT-Q100,11

Part No.:: HEF4051BTT-Q100,11

Manufacturer:: Nexperia USA Inc.

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: HEF4051BTT-Q100,11.pdf

Description:: IC MUX/DEMUX 8CH ANLG 16TSSOP

In Stock:: 14983

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HEF4051BTT-Q100,11 Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q100
ProductStatus:
Active
SwitchCircuit:
-
Multiplexer/DemultiplexerCircuit:
8:1
NumberofCircuits:
1
On-StateResistance(Max):
155Ohm
Channel-to-ChannelMatching(ΔRon):
5Ohm
Voltage-SupplySingle(V+):
3V ~ 15V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
-
-3dbBandwidth:
70MHz
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
7.5pF
Current-Leakage(IS(off))(Max):
200nA
Crosstalk:
-50dB @ 1MHz
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

HEF4051BTT-Q100,11 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HEF4051BTT-Q100,11 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HEF4051BTT-Q100,11 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

HEF4051BTT-Q100,11 information

Views：

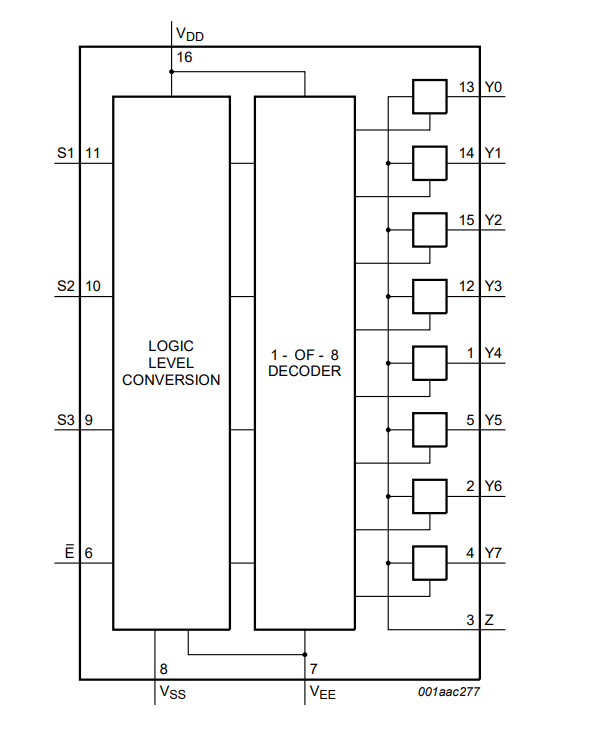

HEF4051BTT-Q100,11 Typical application Circuitry

HEF4051BTT-Q100,11

Dive into the realm of the HEF4051BTT-Q100,11, a noted 8-channel analog multiplexer/demultiplexer, by understanding its intricate circuit connections. Any application's success depends on how precisely the pins are connected. Let's start this trip now:

1. Empowering the Device:

- The lifeline of the HEF4051BTT-Q100,11 is its VDD pin. To power up, associate this pin with the peak of your chosen power source, potentially reaching +15V, predicated on design mandates.

- In juxtaposition, firmly affix the VSS pin to the ground of your circuit, cementing a common voltage anchor.

2. Channeling the Signals: The HEF4051BTT-Q100,11 plays host to channels labeled from Y0 to Y7. They stand ready to accommodate the signals you intend to channel through, either as input conduits for multiplexing or as output avenues when demultiplexing.

3. Unified Signal Hub: The fulcrum of the HEF4051BTT-Q100,11 is undeniably its Z pin. Its role is twofold: in multiplexing, it funnels out the collective signal, and in demultiplexing, it stands as the primary signal intake.

4. Command Center: The HEF4051BTT-Q100,11's trajectory is orchestrated via three binary determinants: A0, A1, and A2. By toggling these pins between high and low states, you choreograph which channel interfaces with the Z pin. For perspective, a 101 configuration across these pins beckons the Y5 channel into action.

5. Circuit Control: Integral to the HEF4051BTT-Q100,11's toolkit is the "Inhibit" capability, marked as INH. A high signal here strategically disengages all channel associations with the Z pin, affording you a rapid control mechanism.

6. Voyaging Below Ground: Should your signals navigate depths below the ground voltage, the VEE pin on the HEF4051BTT-Q100,11 springs into relevance. Connect it to your negative voltage source. For more terrestrial signals, a simple grounding of this pin suffices.

7.Cardinal Directives:

- Emanating consistency, the HEF4051BTT-Q100,11 benefits from decoupling capacitors positioned between the VDD and VSS pins, proximal to the IC. This fortifies its unwavering operation.

- Bearing its CMOS heritage, the HEF4051BTT-Q100,11 merits careful handling. Observing anti-static protocols safeguards its longevity.

- Stray pins, left unattended, spell unpredictability. Anchor them definitively to VDD or VSS.

Conclusively, while the HEF4051BTT-Q100,11 unveils myriad possibilities, the datasheet remains an indispensable ally. It's the lodestar guiding designers to harness the unparalleled prowess of this versatile IC.
