Nexperia USA Inc. HEF4051BTS,118

Part No.:: HEF4051BTS,118

Manufacturer:: Nexperia USA Inc.

Package:: 16-SSOP (0.209, 5.30mm Width)

Datasheet:: HEF4051BTS,118.pdf

Description:: IC MUX/DEMUX 8X1 16SSOP

In Stock:: 2304

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HEF4051BTS,118 Specifications

Package/Case:
16-SSOP (0.209, 5.30mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Obsolete
SwitchCircuit:
-
Multiplexer/DemultiplexerCircuit:
8:1
NumberofCircuits:
1
On-StateResistance(Max):
155Ohm
Channel-to-ChannelMatching(ΔRon):
5Ohm
Voltage-SupplySingle(V+):
3V ~ 15V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
-
-3dbBandwidth:
70MHz
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
7.5pF
Current-Leakage(IS(off))(Max):
200nA
Crosstalk:
-50dB @ 1MHz
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

HEF4051BTS,118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HEF4051BTS,118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HEF4051BTS,118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

HEF4051BTS,118 information

Views：

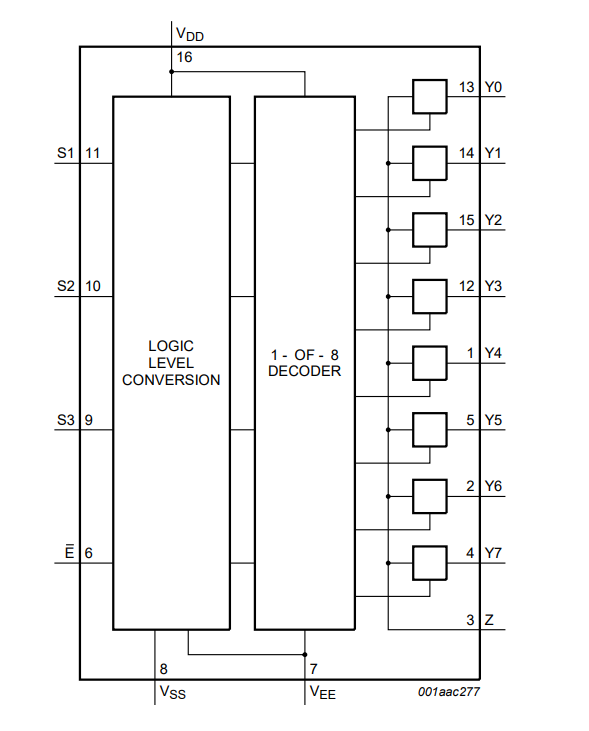

HEF4051BTS,118 Typical application Circuitry

HEF4051BTS,118

The HEF4051BTS,118, an exemplar from the esteemed 4000 CMOS lineage, is sculpted as an 8-channel analog multiplexer/demultiplexer. Renowned for its finesse in maneuvering analog signals within intricate electronic frameworks, this device is a paragon of design and functionality. Delving into this exposition, we'll limn the intricate pin-bound connection paradigm for the HEF4051BTS,118, accentuating the distinct contributions of each terminal.

1. Navigational Luminaries: Architects of Channel Selection: In the intricate maze of the HEF4051BTS,118 lie three address pins: A, B, and C. These luminaries, ever so precise, are the maestros of channel directionality. A manifests its presence on Pin 11, B occupies the realm of Pin 10, while C anchors its identity on Pin 9.

2. The Crucible of Signals: The I/O Epicenter: Commanding center stage on the HEF4051BTS,118 is the Z terminal, seated elegantly at Pin 3. This virtuoso, in the avatar of a multiplexer, projects analog tales, and when demultiplexing, it embraces incoming whispers.

3. Analog Boulevards: Signature Channels: The HEF4051BTS,118, in its vast expanse, hosts eight signal boulevards, identified as Y0 to Y7. They have made their homes at Pins 13, 14, 15, 12, 1, 5, 2, and 4, respectively, ensuring impeccable signal transference.

4. Sentries of Operation: The Enable and VEE Portals: The Enable coliseum, denoted as E, stands tall on Pin 6. It's the HEF4051BTS,118's gatekeeper, and a high decree here sends the device into a contemplative silence, disengaging the Z corridor. Additionally, Pin 7, the VEE promenade, bridges the chasm between the chip and the abyss of negative voltages.

5. Beacons of Vitality: The Lifeblood Connectors: To kindle the spirit of the HEF4051BTS,118, Pin 16 (VDD) yearns for communion with the revered positive voltage sanctum. In parallel, Pin 8 (VSS) seeks solace in the embrace of the grounding sanctuary, ensuring rhythmic harmony.

6. Custodians of the Unspoken: Idle Pin Protocols: The HEF4051BTS,118, a disciple of the CMOS tenets, mandates the embrace of silent terminals. Address portals at rest are gently guided to secure berths, aligning with either VDD or VSS. This ritualistic embrace curbs errant murmurs, ensuring a symphony of operations.

To encapsulate, the HEF4051BTS,118, when interfaced with due reverence to its pin delineations, resonates with impeccable signal agility.
