What is the Additional Feature ?

Name: HEF4049BP,652
Brand: NXP USA Inc.
SKU: HEF4049BP,652
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

NXP USA Inc. HEF4049BP,652

Part No.:: HEF4049BP,652

Manufacturer:: NXP USA Inc.

Package:: 16-DIP

Datasheet:: HEF4049BP,652.pdf

Description:: IC INVERTER 6CH 1-INP 16DIP

In Stock:: 2203

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HEF4049BP,652 Specifications

Packaging:
Tube,Tube
Series:
4000B
ProductStatus:
Obsolete
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
-
Voltage-Supply:
3V ~ 15V
Current-Quiescent(Max):
16 µA
Current-OutputHighLow:
3mA, 20mA
LogicLevel-Low:
1.5V ~ 4V
LogicLevel-High:
3.5V ~ 11V
MaxPropagationDelay@VMaxCL:
40ns @ 15V, 50pF
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Through Hole

HEF4049BP,652 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HEF4049BP,652 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HEF4049BP,652 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

HEF4049BP,652 information

Views：

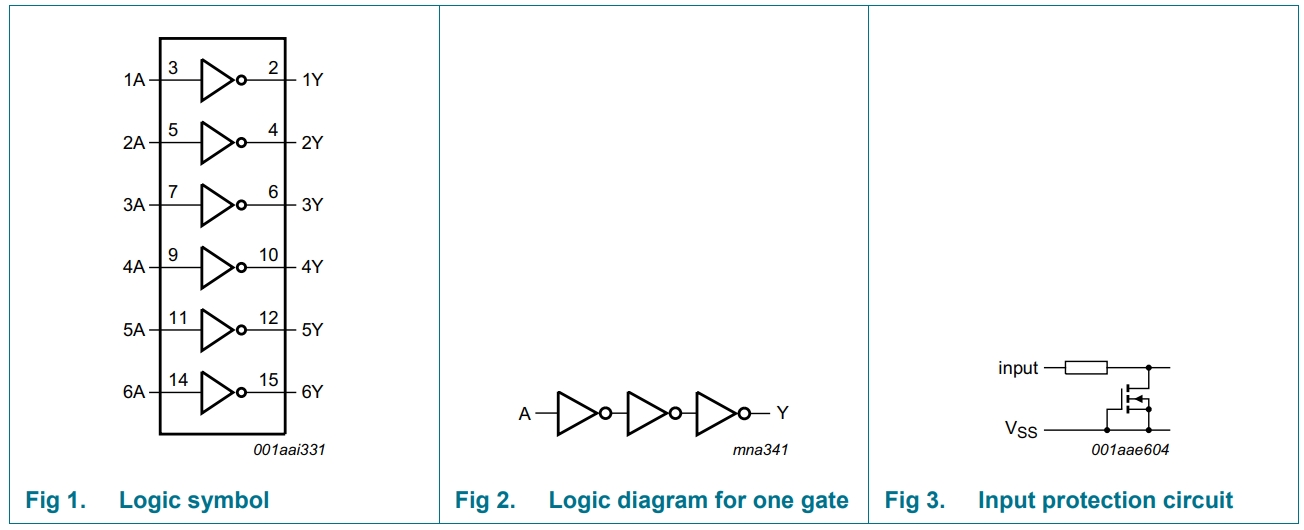

HEF4049BP,652 Typical application Circuitry

HEF4049BP,652

The HEF4049BP,652 is a hex inverting buffer IC known for its robustness and versatility in various digital circuit applications. This IC is particularly adept at inverting input signals, level shifting, and driving substantial loads, making it a go-to choice for electronics designers.

Functionality: At its heart, the HEF4049BP,652 comprises six independent inverting buffer gates. Each gate is engineered to invert the logic state of its input, outputting a high for a low input and vice versa.

Applications: This IC finds utility in a range of digital circuit scenarios, including logic level conversion between different voltage domains, driving high-current devices like LEDs or relays, and generating inverted signals for control circuits.

Parameters: The HEF4049BP,652 operates across a wide voltage range, typically 3V to 15V, accommodating various logic levels. Its high output current capability is crucial for driving loads. Other essential specifications include propagation delay and input capacitance, especially in high-speed applications.

Circuit Design for Logic Level Conversion:

1. Supply Voltage Connection: Attach the VDD pin (pin 16) to a higher voltage supply (e.g., +12V) and the VSS pin (pin 8) to the ground.

2. Input Signal: Feed a lower-voltage logic signal (e.g., 3.3V from a microcontroller) to the input of an inverter (e.g., pin 1 for the first gate).

3. Output Connection: Link the output of the inverter (e.g., pin 2 for the first gate) to the input of a device operating at the higher voltage level.

4. Decoupling Capacitor: Position a 0.1µF capacitor near the VDD and VSS pins to filter out noise and stabilize the supply voltage.

5. Pull-down Resistor: Include a pull-down resistor (e.g., 10kΩ) at the output to ensure a defined logic level when the input is floating or disconnected.

Design Considerations: When deploying the HEF4049BP,652 for logic level conversion, it's imperative to ensure compatibility between the input signal's voltage and the IC's logic thresholds. Additionally, the output current should be within the IC's specified limits to prevent damage. Adequate bypassing and noise suppression are also vital for maintaining signal integrity.

In summary, the HEF4049BP,652 hex inverting buffer is a versatile and reliable component for digital electronics, suitable for a myriad of applications from logic level conversion to load driving. Careful consideration of its electrical characteristics and adherence to its operating limits are key to leveraging its full potential in circuit designs.
