Name: HCNR200-000E
Brand: Broadcom Limited
SKU: HCNR200-000E
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Broadcom Limited HCNR200-000E

Part No.:: HCNR200-000E

Manufacturer:: Broadcom Limited

Package:: 8-DIP (0.400, 10.16mm)

Datasheet:: HCNR200-000E.pdf

Description:: OPTOISO 5KV LINEAR PHVOLT 8DIP

In Stock:: 3661

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HCNR200-000E Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Active
NumberofChannels:
1
Voltage-Isolation:
5000Vrms
CurrentTransferRatio(Min):
0.25% @ 10mA
CurrentTransferRatio(Max):
0.75% @ 10mA
TurnOn/TurnOffTime(Typ):
-
Rise/FallTime(Typ):
-
InputType:
DC
OutputType:
Photovoltaic, Linearized
Voltage-Output(Max):
-
Current-Output/Channel:
-
Voltage-Forward(Vf)(Typ):
1.6V
Current-DCForward(If)(Max):
25 mA
VceSaturation(Max):
-
OperatingTemperature:
-55°C ~ 100°C
MountingType:
Through Hole

HCNR200-000E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HCNR200-000E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HCNR200-000E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

HCNR200-000E information

Views：

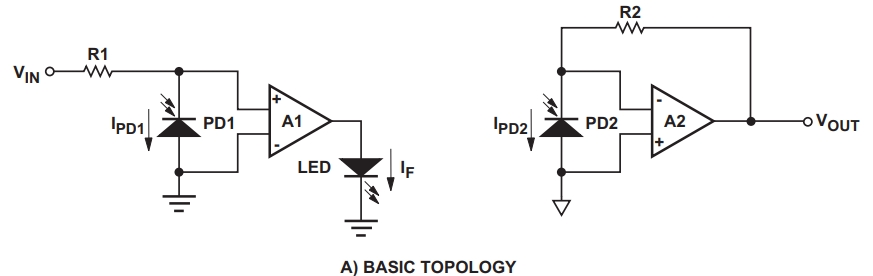

HCNR200-000E Typical application Circuitry

HCNR200-000E

The HCNR200-000E is a high-linearity analog optocoupler designed for applications requiring high accuracy and stability in the transfer of analog signals across electrical isolation barriers.

Functionality:

This optocoupler consists of an input LED and two photodiodes, one for feedback and one for output, arranged in a unique configuration that allows for excellent linearity and low nonlinearity errors.

Applications:

The HCNR200-000E is commonly used in isolation amplifiers, data acquisition systems, medical instrumentation, and any application where precise and stable analog signal isolation is required.

Parameters:

- Isolation Voltage: Typically 5000 Vrms

- Linearity: High linearity with low nonlinearity error

- Bandwidth: Wide bandwidth suitable for various signal frequencies

- Temperature Stability: Excellent performance over a wide temperature range

Circuit Design for an Isolation Amplifier:

1. Input Signal Connection:

- Connect the input analog signal to the anode (pin 1) of the input LED.

- Attach the cathode (pin 2) of the HCNR200-000E LED to the ground of the input circuit.

2. Output Photodiode Connection:

- Connect the anode (pin 4) of the output photodiode to the non-inverting input of an operational amplifier.

- Connect the cathode (pin 5) of the output photodiode to the ground of the output circuit.

3. Feedback Photodiode Connection:

- Connect the anode (pin 6) of the feedback photodiode to the inverting input of the operational amplifier.

- Connect the cathode (pin 7) of the feedback photodiode to the ground of the output circuit.

4. Operational Amplifier Configuration:

- Configure the operational amplifier for the desired gain and bandwidth.

- Connect the output of the operational amplifier to the output of the isolation amplifier circuit.

5. Power Supply Isolation:

- Use separate power supplies for the input and output circuits to maintain electrical isolation.

Design Considerations:

- Isolation Voltage: Ensure that the HCNR200-000E's isolation voltage rating is adequate for the application.

- Linearity: Optimize the circuit design to maintain the high linearity of the optocoupler.

- Temperature Stability: Take into account the optocoupler's and the circuit's other components' temperature stability.

- Circuit Layout: Minimize the capacitive coupling and ensure proper grounding to maintain signal integrity.

In conclusion, the HCNR200-000E is a high-linearity analog optocoupler that is ideal for applications requiring accurate and stable isolation of analog signals. Its unique configuration allows for excellent linearity and low nonlinearity errors. When designing circuits with this optocoupler, it is important to consider the isolation requirements, linearity, temperature stability, and circuit layout to ensure optimal performance.
