GigaDevice Semiconductor (HK) Limited GD25Q127CSIG

Part No.:: GD25Q127CSIG

Manufacturer:: GigaDevice Semiconductor (HK) Limited

Package:: 8-SOIC (0.209, 5.30mm Width)

Datasheet:: GD25Q127CSIG.pdf

Description:: IC FLASH 128MBIT SPI/QUAD 8SOP

In Stock:: 2416

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

GD25Q127CSIG Specifications

Package/Case:
8-SOIC (0.209, 5.30mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Not For New Designs
MemoryType:
Non-Volatile
MemoryFormat:
FLASH
Technology:
FLASH - NOR
MemorySize:
128Mb (16M x 8)
MemoryInterface:
SPI - Quad I/O
ClockFrequency:
104 MHz
WriteCycleTime-WordPage:
12µs, 2.4ms
AccessTime:
-
Voltage-Supply:
2.7V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

GD25Q127CSIG this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including GD25Q127CSIG price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for GD25Q127CSIG to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

GD25Q127CSIG information

Views：

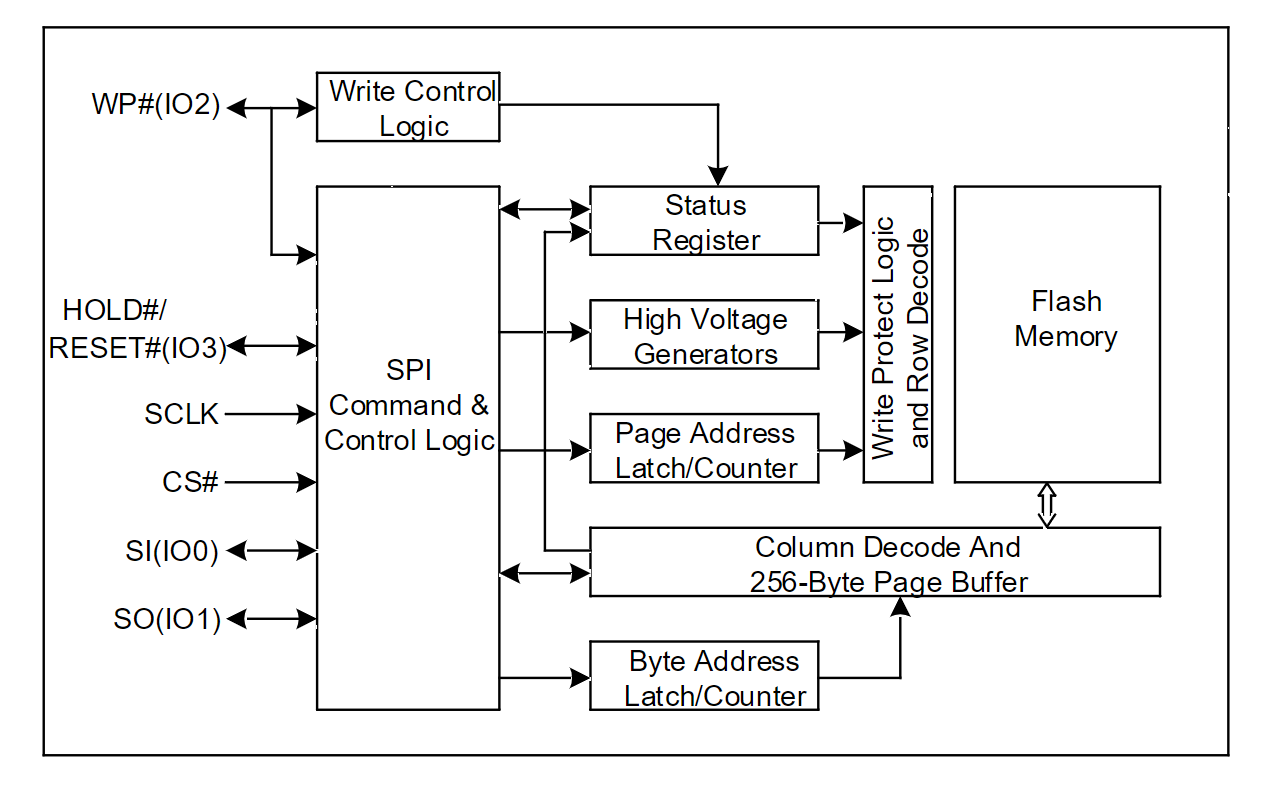

GD25Q127CSIG Typical application Circuitry

GD25Q127CSIG

The GD25Q127CSIG is a member of the GD25 series of Serial Flash memory chips. These chips are designed for use in applications requiring data storage, code storage, or both, and they communicate over a SPI (Serial Peripheral Interface) protocol.

1. Description of GD25Q127CSIG: Hailing from the GD25 lineup, the GD25Q127CSIG is a high-performance Serial Flash chip. It boasts an extensive storage capacity and facilitates rapid read access times, making it ideal for a variety of digital applications.

2. Basic Pin Configuration:

- CS# (Chip Select): This is an input pin, and when it's driven low, the chip becomes active, awaiting commands from the host controller.

- SO (Serial Data Output): This is the pin from which data will be read out of the GD25Q127CSIG.

- WP# (Write Protect): Holding this pin low prevents any modifications to the data on the chip.

- VCC: This is the power supply pin.

- GND: Ground connection for the chip.

- SI (Serial Data Input): Commands and data to be written to the GD25Q127CSIG are provided on this pin.

- SCLK (Serial Clock): The host controller provides a clock signal on this pin to synchronize data transfers.

- HOLD#: This pin, when driven low, will pause any ongoing serial communication without resetting the serial sequence.

3. Engaging with GD25Q127CSIG: To initialize communication with the GD25Q127CSIG, the CS# pin must be pulled low. Commands are then sent to the chip through the SI pin, with the SCLK pin governing the timing of the data bits. Data readouts from the GD25Q127CSIG are executed via the SO pin.

4. Write and Read Operations: To write to the GD25Q127CSIG, ensure the WP# pin is held high. Write operations are then conducted through the SI pin, while read operations send data out of the SO pin.

5. Power and Grounding: The GD25Q127CSIG necessitates a reliable power and ground connection. With VCC serving as the power supply pin and GND as the ground, careful layout and decoupling strategies (like adding a bypass capacitor close to the VCC pin) are recommended to ensure stability.

6. Applications Encompassing GD25Q127CSIG: Given the versatile nature of the GD25Q127CSIG, it finds a home in a myriad of digital solutions, from storage of application codes to capturing and preserving user data.

For a comprehensive grasp of the GD25Q127CSIG's intricacies, potential users are encouraged to refer to the device's official datasheet. It sheds light on each pin's nuanced function, explicates optimal operating conditions, and offers sample circuit diagrams.
