    FT4232HPQ-TRAY informationFT4232HPQ-TRAY information

    Views:

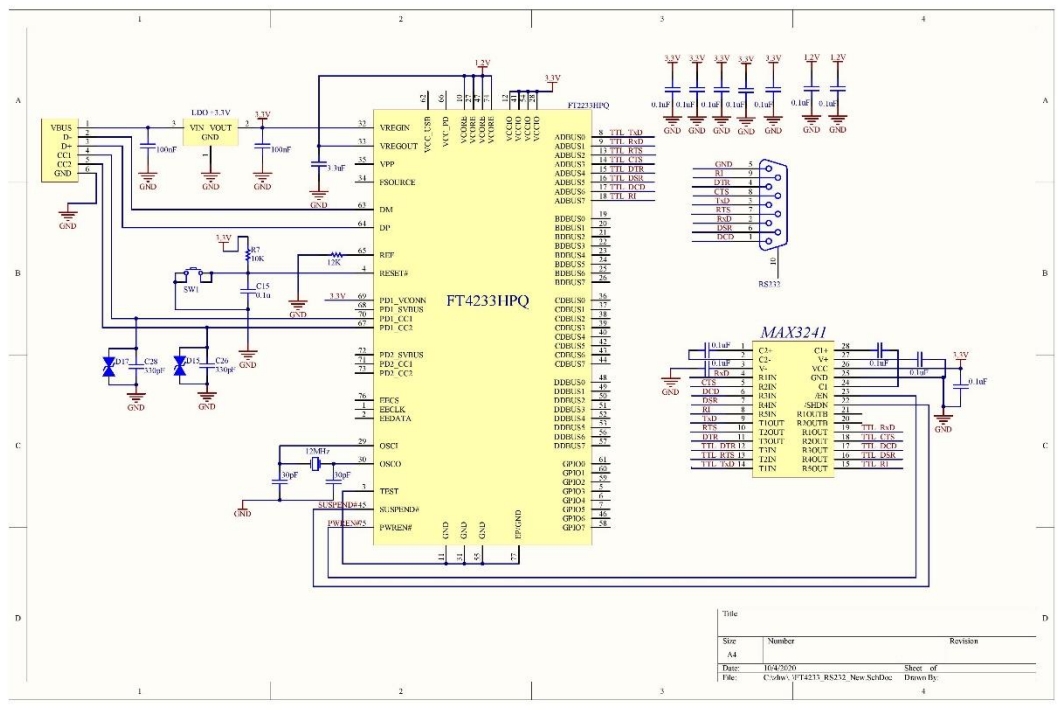

    FT4232HPQ-TRAY Typical application Circuitry

    FT4232HPQ-TRAY

    The FT4232HPQ-TRAY is a sophisticated USB to serial/MPSSE (Multi-Protocol Synchronous Serial Engine) interface chip developed by FTDI. It features four independent channels that can be tailored to support a variety of communication protocols, including UART, SPI, I2C, and JTAG. The chip is particularly useful in applications that demand multiple serial interfaces, such as industrial automation, data acquisition systems, and debugging interfaces.

    Functionality: At its core, the FT4232HPQ-TRAY functions as a conduit between USB and serial interfaces, providing rapid data transfer capabilities and a broad range of configuration settings to accommodate different communication protocols.

    Applications: The chip finds application in a host of scenarios, including but not limited to, USB-to-serial conversion, programming and debugging of microcontrollers, interfacing with various sensors, and crafting bespoke communication protocols.

    Parameters: The FT4232HPQ-TRAY is characterized by its USB 2.0 Hi-Speed (480 Mbps) interface, capability to support UART baud rates up to 12 Mbps, and configurable I/O voltage levels (1.8V, 2.5V, 3.3V, or 5V).

    Circuit Design for UART Communication:

    1. Voltage Setup: Link the VCCIO pin (pin 1) of the FT4232HPQ-TRAY to a 3.3V power supply to establish the I/O voltage level. The GND pin (pin 19) should be connected to the system ground.

    2. USB Connectivity: Connect the USB interface of the chip to a computer's USB port to supply power and set up the USB communication pathway.

    3. UART Configuration: For UART communication, connect the TXD (Transmit Data) pin of channel C (pin 22) to the RXD (Receive Data) pin of the target UART device. Correspondingly, connect the RXD pin of channel C (pin 23) to the TXD pin of the target device.

    4. Flow Control (Optional): If hardware flow control is necessary, connect the CTS (Clear To Send) pin of channel C (pin 24) to the RTS (Request To Send) pin of the target device, and vice versa.

    5. Reference Ground: It's essential to ensure that the ground of the FT4232HPQ-TRAY is linked to the ground of the target device to maintain a common reference point.

    Design Considerations:

    - Power Compatibility: It's crucial to ensure that the power supply voltage matches the required I/O voltage level for compatibility with the connected devices.

    - USB Bandwidth: Be mindful of the USB bandwidth, particularly when operating multiple channels simultaneously, to avoid potential data transfer issues.

    - Signal Integrity: Implement proper PCB layout and impedance matching techniques to preserve signal integrity, especially at higher data rates.

    - Driver Installation: Confirm that the appropriate FTDI drivers are installed on the computer for the seamless operation of the chip.

    - Device Configuration: Utilize the FTDI FT_Prog utility to adjust the device settings, such as baud rate and protocol options, to suit the specific requirements of your application.

    By adhering to these instructions and implementing the detailed circuit design, the FT4232HPQ-TRAY can be effectively integrated into a wide range of applications that necessitate multiple serial interfaces.
