Name: FT4232HAQ-TRAY
Brand: FTDI, Future Technology Devices International Ltd
SKU: FT4232HAQ-TRAY
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

FTDI, Future Technology Devices International Ltd FT4232HAQ-TRAY

Part No.:: FT4232HAQ-TRAY

Manufacturer:: FTDI, Future Technology Devices International Ltd

Package:: 64-VFQFN Exposed Pad

Datasheet:: FT4232HAQ-TRAY.pdf

Description:: USB HI-SPEED TO QUAD CHANNEL SER

In Stock:: 2091

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FT4232HAQ-TRAY Specifications

Package/Case:
64-VFQFN Exposed Pad
Packaging:
Tray
Series:
-
ProductStatus:
Active
Protocol:
USB
Function:
Controller
Interface:
I²C, JTAG, Serial, SPI, UART
Standards:
USB 2.0
Voltage-Supply:
1.08V ~ 1.32V
Current-Supply:
25mA
OperatingTemperature:
-40°C ~ 105°C (TA)

FT4232HAQ-TRAY this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including FT4232HAQ-TRAY price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for FT4232HAQ-TRAY to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

FT4232HAQ-TRAY information

Views：

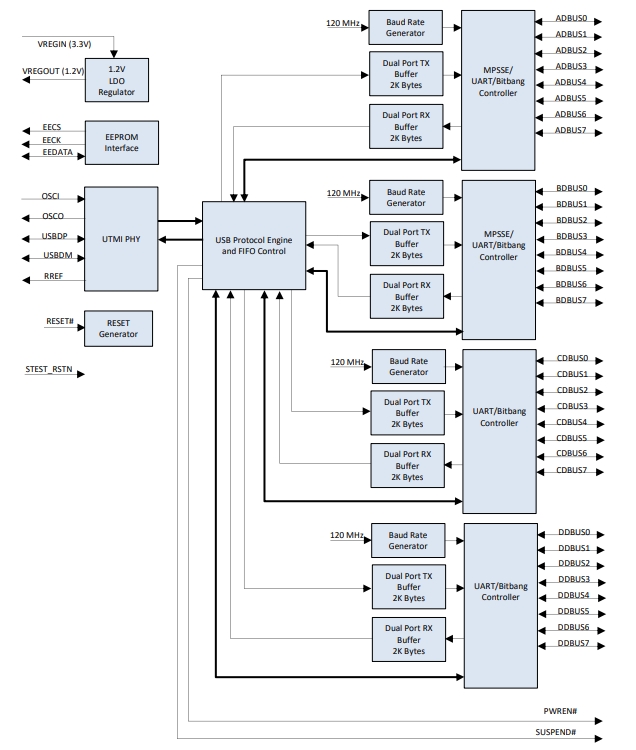

FT4232HAQ-TRAY Typical application Circuitry

FT4232HAQ-TRAY

The FT4232HAQ-TRAY is a high-performance USB to serial/MPSSE (Multi-Protocol Synchronous Serial Engine) interface chip developed by FTDI. It provides four independent serial interfaces that can be configured for various communication protocols such as UART, SPI, I2C, and JTAG. This chip is commonly used in applications requiring multiple serial interfaces, such as industrial control systems, data acquisition systems, and debugging tools.

Functionality: The FT4232HAQ-TRAY acts as a bridge between USB and serial interfaces, offering high-speed data transfer rates and flexible configuration options. It supports different modes including asynchronous UART, synchronous bit-bang, and MPSSE for SPI and I2C protocols.

Applications: This chip is suitable for applications like USB-to-serial conversion, microcontroller programming and debugging, interfacing with sensors or other peripherals, and developing custom communication protocols.

Parameters: The FT4232HAQ-TRAY operates with a USB 2.0 Hi-Speed (480 Mbps) interface, supports baud rates up to 12 Mbps for UART, and provides configurable I/O voltage levels (1.8V, 2.5V, 3.3V, or 5V).

Specific Circuit Design for SPI Communication:

1. Power Supply: Connect the VCCIO pin of the FT4232HAQ-TRAY to a 3.3V power source to set the I/O voltage level. Ensure that the GND pin is connected to the ground of your power supply.

2. USB Connection: Attach the USB interface of the chip to a USB port on your computer to power the chip and establish the USB interface.

3. SPI Configuration: For SPI communication, connect the SCK (Serial Clock) pin of channel A to the SCK pin of your target SPI device. Connect the MOSI (Master Out Slave In) pin of channel A to the MOSI pin of the target device, and the MISO (Master In Slave Out) pin of channel A to the MISO pin of the target device.

4. Chip Select: Use a GPIO pin of channel A as the Chip Select (CS) signal. Connect this pin to the CS pin of the target SPI device.

5. Ground Reference: Ensure that the ground of the FT4232HAQ-TRAY is connected to the ground of the target device to provide a common reference.

Design Considerations:

- Power Supply: Verify that the power supply voltage matches the desired I/O voltage level for compatibility with connected devices.

- USB Bandwidth: Consider the USB bandwidth, especially when using multiple channels simultaneously, to avoid data transfer bottlenecks.

- Signal Integrity: Employ proper PCB layout techniques and impedance matching to maintain signal integrity, particularly at high data rates.

- Driver Installation: Ensure that the correct FTDI drivers are installed on your computer for the chip to function properly.

- Device Configuration: Use the FTDI FT_Prog utility to configure the device settings, such as baud rate and protocol options, according to your application needs.

By adhering to these guidelines and following the specified circuit design, the FT4232HAQ-TRAY can be effectively utilized in various applications requiring multiple serial interfaces.
