What is the Additional Feature ?

Name: FT4232H-56Q-REEL
Brand: FTDI, Future Technology Devices International Ltd
SKU: FT4232H-56Q-REEL
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

FTDI, Future Technology Devices International Ltd FT4232H-56Q-REEL

Part No.:: FT4232H-56Q-REEL

Manufacturer:: FTDI, Future Technology Devices International Ltd

Package:: 56-VFQFN Exposed Pad

Datasheet:: FT4232H-56Q-REEL.pdf

Description:: IC USB TO UART/MPSSE QUAD 56VQFN

In Stock:: 3640

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FT4232H-56Q-REEL Specifications

Package/Case:
56-VFQFN Exposed Pad
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Protocol:
USB
Function:
Bridge, USB to UART,FIFO
Interface:
FIFO
Standards:
USB 2.0
Voltage-Supply:
3.3V
Current-Supply:
-
OperatingTemperature:
-40°C ~ 85°C

FT4232H-56Q-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including FT4232H-56Q-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for FT4232H-56Q-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

FT4232H-56Q-REEL information

Views：

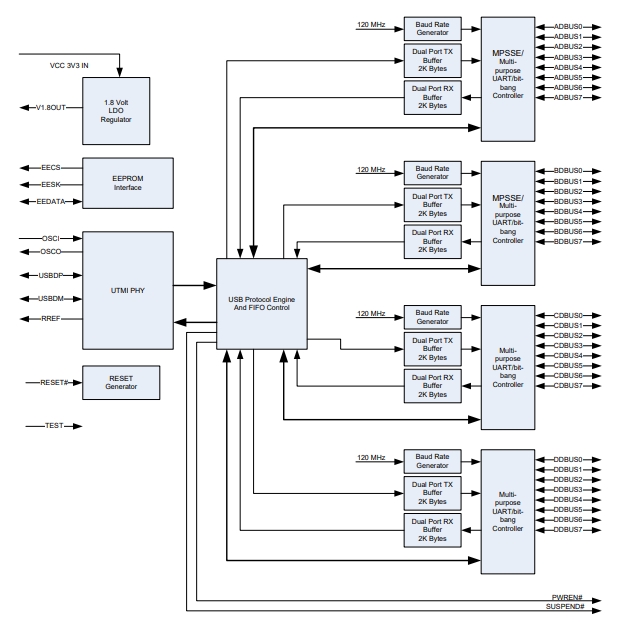

FT4232H-56Q-REEL Typical application Circuitry

FT4232H-56Q-REEL

The FT4232H-56Q-REEL is a high-performance USB to serial/MPSSE (Multi-Protocol Synchronous Serial Engine) interface chip developed by FTDI. It offers four independent serial interfaces that can be configured to support various communication protocols, including UART, SPI, I2C, and JTAG. This chip is particularly useful in applications requiring multiple serial interfaces, such as industrial automation, data logging systems, and debugging interfaces.

Functionality: The core functionality of the FT4232H-56Q-REEL lies in its ability to act as a bridge between USB and serial interfaces, enabling high-speed data transfer and providing a wide range of configuration options to accommodate different communication protocols.

Applications: The chip is widely used in scenarios such as USB-to-serial conversion, programming and debugging of microcontrollers, interfacing with sensors and other peripherals, and creating custom communication protocols.

Parameters: Key specifications of the FT4232H-56Q-REEL include a USB 2.0 Hi-Speed (480 Mbps) interface, support for UART baud rates up to 12 Mbps, and configurable I/O voltage levels (1.8V, 2.5V, 3.3V, or 5V).

Circuit Design for JTAG Communication:

1. Voltage Configuration: Connect the VCCIO pin of the FT4232H-56Q-REEL to a 3.3V power source to establish the I/O voltage level. The GND pin should be connected to the system ground.

2. USB Interface: Connect the USB interface of the chip to a computer's USB port to supply power and set up the USB communication link.

3. JTAG Setup: For JTAG communication, link the TCK (Test Clock) pin of channel B to the TCK pin on the target JTAG device. Similarly, connect the TDI (Test Data In) pin of channel B to the TDI pin of the target device, the TDO (Test Data Out) pin of channel B to the TDO pin of the target device, and the TMS (Test Mode Select) pin of channel B to the TMS pin of the target device.

4. Reference Ground: It's crucial to ensure that the ground of the FT4232H-56Q-REEL is connected to the ground of the target device to maintain a common reference point.

Design Considerations:

- Power Compatibility: Check that the power supply voltage matches the required I/O voltage level for compatibility with connected devices.

- USB Bandwidth Management: Be mindful of the USB bandwidth, particularly when operating multiple channels simultaneously, to prevent data transfer issues.

- Signal Integrity: Implement proper PCB layout and impedance matching techniques to preserve signal integrity, especially at higher data rates.

- Driver Requirements: Ensure that the appropriate FTDI drivers are installed on the computer for the smooth operation of the chip.

- Device Configuration: Utilize the FTDI FT_Prog utility to adjust the device settings, such as baud rate and protocol options, to suit the specific requirements of your application.

By following these detailed guidelines and implementing the outlined circuit design, the FT4232H-56Q-REEL can be effectively integrated into a wide range of applications that require multiple serial interfaces.
