FTDI, Future Technology Devices International Ltd FT4232H-56Q MINI MDL

Part No.:: FT4232H-56Q MINI MDL

Manufacturer:: FTDI, Future Technology Devices International Ltd

Package:: Module

Datasheet:: FT4232H-56Q MINI MDL.pdf

Description:: IC MINI MODULE USB/FIFO 56QFN

In Stock:: 3336

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FT4232H-56Q MINI MDL Specifications

Package/Case:
Module
Packaging:
Bulk
Series:
-
ProductStatus:
Active
Protocol:
USB
Function:
Bridge, USB to UART,FIFO
Interface:
FIFO
Standards:
USB 2.0
Voltage-Supply:
3.3V
Current-Supply:
-
OperatingTemperature:
-40°C ~ 85°C

FT4232H-56Q MINI MDL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including FT4232H-56Q MINI MDL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for FT4232H-56Q MINI MDL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

FT4232H-56Q MINI MDL information

Views：

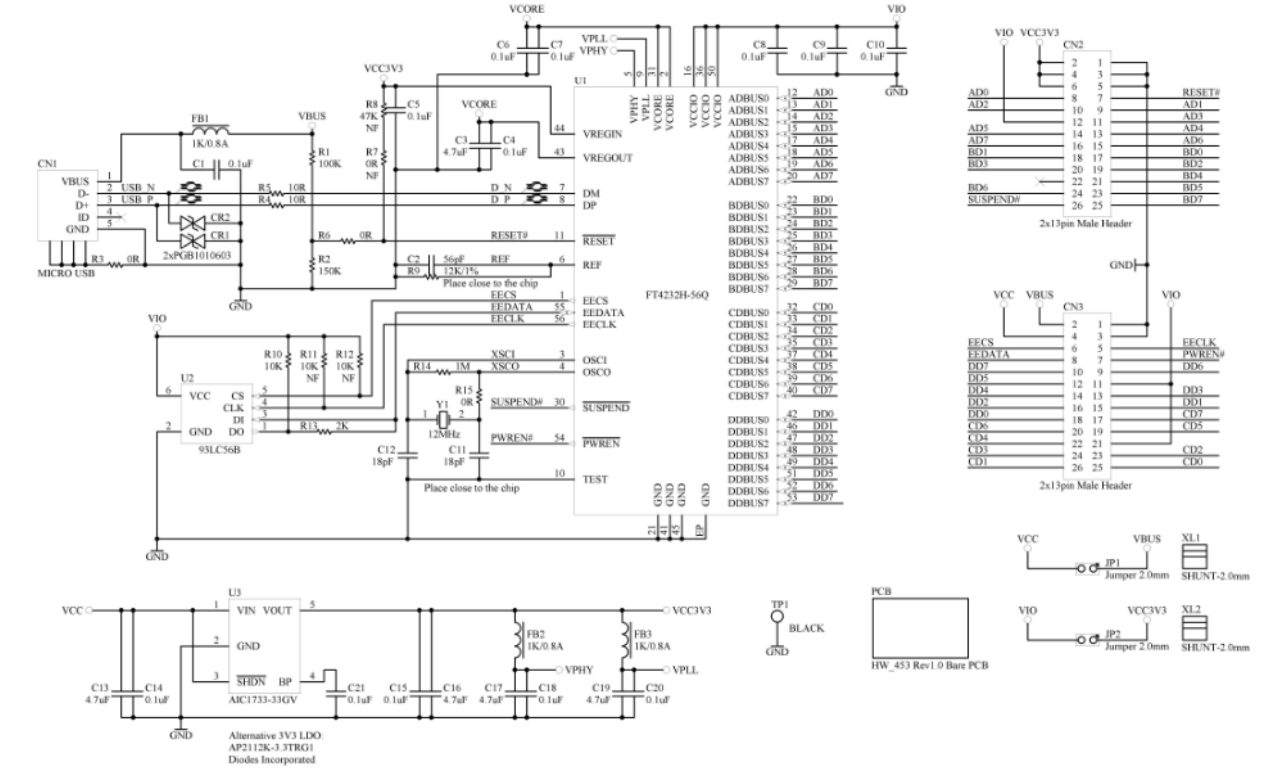

FT4232H-56Q MINI MDL Typical application Circuitry

FT4232H-56Q MINI MDL

The FT4232H-56Q MINI MDL is a compact and versatile USB to serial/MPSSE interface module based on the FTDI FT4232H chip. It provides four independent serial interfaces that can be configured for various communication protocols such as UART, SPI, I2C, and JTAG. Applications like industrial control systems, instrumentation, and debugging tools that need many serial interfaces frequently use this module.

Functionality: The FT4232H-56Q MINI MDL acts as a bridge between USB and serial interfaces, offering high-speed data transfer rates and flexible configuration options. It supports different modes including asynchronous UART, synchronous bit-bang, and MPSSE for SPI and I2C protocols.

Applications: This module is suitable for applications like USB-to-serial conversion, microcontroller programming and debugging, interfacing with sensors or other peripherals, and developing custom communication protocols.

Parameters: The FT4232H-56Q MINI MDL operates with a USB 2.0 Hi-Speed (480 Mbps) interface, supports baud rates up to 12 Mbps for UART, and provides configurable I/O voltage levels (1.8V, 2.5V, 3.3V, or 5V).

Specific Circuit Design for I2C Communication:

1. Voltage Setup: Connect the VCCIO pin of the FT4232H-56Q MINI MDL to a 3.3V power source to set the I/O voltage level. Ensure that the GND pin is connected to the ground of your power supply.

2. USB Connection: Attach the USB mini-B connector of the module to a USB port on your computer to power the module and establish the USB interface.

3. I2C Configuration: For I2C communication, connect the SDA (Serial Data) pin of channel A to the SDA pin of your target I2C device. Connect the SCL (Serial Clock) pin of channel A to the SCL pin of the target device.

4. Resistors for Pull-up: Put pull-up resistors (usually 4.7kΩ) on the SDA and SCL channels to make sure that I2C communication is appropriate. Each resistor has two ends: one that should be connected to the appropriate line and the other to the 3.3V power source.

5. Ground Reference: Ensure that the ground of the FT4232H-56Q MINI MDL is connected to the ground of the target device to provide a common reference.

Design Considerations:

- Power Supply: Verify that the power supply voltage matches the desired I/O voltage level for compatibility with connected devices.

- USB Bandwidth: Consider the USB bandwidth, especially when using multiple channels simultaneously, to avoid data transfer bottlenecks.

- Signal Integrity: Employ proper PCB layout techniques and impedance matching to maintain signal integrity, particularly at high data rates.

- Driver Installation: Ensure that the correct FTDI drivers are installed on your computer for the module to function properly.

- Device Configuration: Use the FTDI FT_Prog utility to configure the device settings, such as baud rate and protocol options, according to your application needs.

By adhering to these guidelines and following the specified circuit design, the FT4232H-56Q MINI MDL can be effectively utilized in various applications requiring multiple serial interfaces.
