Name: FT231XS-R
Brand: FTDI, Future Technology Devices International Ltd
SKU: FT231XS-R
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

FTDI, Future Technology Devices International Ltd FT231XS-R

Part No.:: FT231XS-R

Manufacturer:: FTDI, Future Technology Devices International Ltd

Package:: 20-SSOP (0.154, 3.90mm Width)

Datasheet:: FT231XS-R.pdf

Description:: IC USB SERIAL FULL UART 20SSOP

In Stock:: 2008

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FT231XS-R Specifications

Package/Case:
20-SSOP (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
USBmadeEZ-UART, FT-X, X-Chip
ProductStatus:
Active
Protocol:
USB
Function:
Bridge, USB to UART
Interface:
UART
Standards:
USB 2.0
Voltage-Supply:
3.3V ~ 5V
Current-Supply:
8mA
OperatingTemperature:
-40°C ~ 85°C

FT231XS-R this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including FT231XS-R price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for FT231XS-R to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

FT231XS-R information

Views：

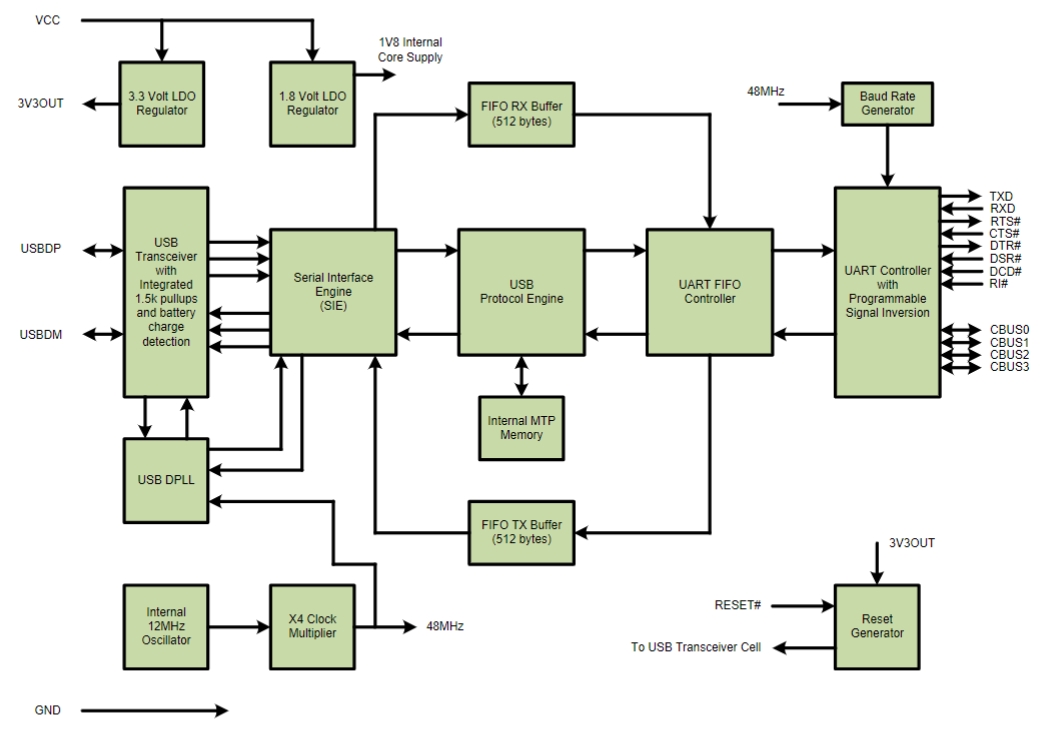

FT231XS-R Typical application Circuitry

FT231XS-R

FT231XS-R is an integrated circuit developed by FTDI (Future Technology Devices International Ltd), specifically designed for bridging USB to serial UART (Universal Asynchronous Receiver/Transmitter) interfaces. This chip is a part of FTDI's USB to serial UART interface IC device family, offering a simple and efficient solution for implementing USB connectivity in devices that traditionally support serial communication.

Application Scenarios for FT231XS-R

1. USB to RS232 Conversion: In legacy systems where equipment with RS232 interfaces needs to be connected to modern PCs via USB.

2. Embedded Systems: Providing USB connectivity to microcontrollers with UART interfaces, facilitating programming and data communication.

3. Industrial Automation: Connecting sensors and actuators with UART interfaces to USB-based control systems.

Parameter Features of FT231XS-R

- USB Interface: Fully compliant with USB 2.0 specifications.

- Baud Rate: 300 baud to 3 Mbaud are supported baud rates. - Data Transfer: Capable of high data transfer rates, with support for data bits, stop bits, and parity settings.

- Power Supply: Requires little operation and suspend current and can be powered straight from the USB connector.

Detailed Circuit Connection Using FT231XS-R

Application Scenario: Interfacing a Microcontroller with a PC via USB

1. Power Supply: Connect the VCCIO pin of the FT231XS-R to a 3.3V supply from the microcontroller to set the I/O pin voltage levels. Ensure that the 3.3V supply is stable and has sufficient current capability.

2. USB Connection: Attach the USBDM and USBDP pins of the FT231XS-R to a USB connector, which will then be plugged into the PC. It's crucial to ensure that the data lines are correctly matched to the D+ and D- pins of the USB connector.

3. UART Interface: Link the TXD pin of the FT231XS-R to the RXD pin on the microcontroller, and the RXD pin of the FT231XS-R to the TXD pin on the microcontroller, establishing the UART communication path.

4. Grounding: Connect the GND pin of the FT231XS-R to the system ground. It's vital for signal integrity and power stability to maintain a good ground connection.

Circuit Design Considerations

1. Impedance Matching: For the USB data lines, impedance matching is important to maintain signal integrity. This is especially critical if the USB cable is long.

2. Decoupling Capacitors: Position decoupling capacitors next to the pins of the FT231XS-R power supply to lower noise and provide a consistent power supply.

3. ESD Protection: Implement ESD protection mechanisms on the USB interface to protect the FT231XS-R and the rest of the circuit from electrostatic discharges.

4. Firmware and Drivers: Ensure the microcontroller firmware is compatible with the FT231XS-R for seamless communication, and the correct drivers are installed on the PC.

5. USB Compliance: If the device is intended for commercial distribution, consider USB compliance and potential certification requirements to ensure compatibility and reliability.

Incorporating these considerations in your design will enhance the reliability and functionality of circuits utilizing the FT231XS-R, facilitating effective USB to UART communication in a variety of applications.
