Infineon Technologies FP150R12KT4PB11BPSA1

Part No.:: FP150R12KT4PB11BPSA1

Manufacturer:: Infineon Technologies

Package:: Module

Datasheet:: FP150R12KT4PB11BPSA1.pdf

Description:: IGBT MODULE 1200V 150A

In Stock:: 2517

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FP150R12KT4PB11BPSA1 Specifications

Packaging:
Bulk,Tray
Series:
EconoPIM™ 3
ProductStatus:
Active
IGBTType:
Trench Field Stop
Configuration:
Three Phase Inverter
Voltage-CollectorEmitterBreakdown(Max):
1200 V
Current-Collector(Ic)(Max):
150 A
Power-Max:
-
Vce(on)(Max)@VgeIc:
2.1V @ 15V, 150A
Current-CollectorCutoff(Max):
1 mA
InputCapacitance(Cies)@Vce:
9.35 nF @ 25 V
Input:
Three Phase Bridge Rectifier
NTCThermistor:
Yes
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Chassis Mount

FP150R12KT4PB11BPSA1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including FP150R12KT4PB11BPSA1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for FP150R12KT4PB11BPSA1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

FP150R12KT4PB11BPSA1 information

Views：

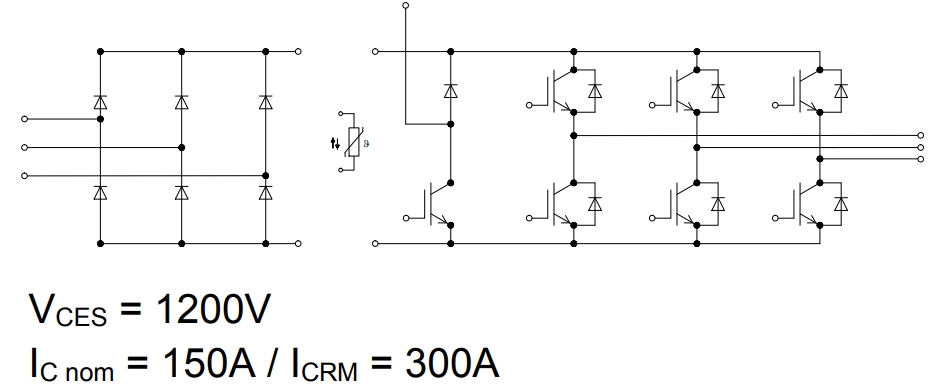

FP150R12KT4PB11BPSA1 Typical application Circuitry

FP150R12KT4PB11BPSA1

The FP150R12KT4PB11BPSA1 is an IGBT (Insulated Gate Bipolar Transistor) module made for high-power uses. Power electronics frequently employ this module to switch and control electric currents effectively.

FP150R12KT4PB11BPSA1 module's functionality is comprised of multiple IGBTs and diodes arranged in a half-bridge configuration. It can be utilized in applications that require robust power control due to its capacity to withstand high voltage and current.

Applications:

- Renewable Energy Systems: Applied in solar and wind power inverter inverters.

- Electric Vehicle (EV) Drives: Applied to electric vehicle powertrain systems.3. Industrial Motor Drives: Utilized in variable speed drives for industrial motors.

Specifications:

- Rated Voltage: 1200V, appropriate for applications involving medium to high voltages.

- Rated Current: 150A, capable of handling significant power loads.

- Switching Frequency: Can operate at high frequencies, enabling efficient power conversion.

Circuit Design for an EV Powertrain:

1. IGBT Configuration: Arrange the FP150R12KT4PB11BPSA1 module in a three-phase inverter circuit to control the motor's speed and torque.

2. Gate Drive Circuit: Connect gate drive circuits to the FP150R12KT4PB11BPSA1 gate terminals of the IGBTs to provide the necessary gate voltage for switching.

3. Protection Circuit: Implement overcurrent and overtemperature protection circuits to safeguard the IGBT module and the motor.

4. Cooling System: Design a cooling system, such as a heat sink or liquid cooling, to dissipate the heat generated by the IGBT module during operation.

Design Considerations:

- Thermal Management: Proper cooling is essential to prevent thermal runaway and ensure the longevity of the IGBT module.

- Gate Drive Design: The gate drive circuit must be carefully designed to provide fast and reliable switching of the IGBTs.

- Protection Features: Incorporate protection mechanisms to prevent damage from overcurrent, overvoltage, and overtemperature conditions.

By incorporating the FP150R12KT4PB11BPSA1 module into your power electronics design, you can achieve efficient and reliable control of high-power electrical systems, making it a popular choice in various industrial and automotive applications.
