Cypress Semiconductor Corp FM25V02A-DGTR

Part No.:: FM25V02A-DGTR

Manufacturer:: Cypress Semiconductor Corp

Package:: 8-WDFN Exposed Pad

Datasheet:: FM25V02A-DGTR.pdf

Description:: IC FRAM 256KBIT SPI 40MHZ 8DFN

In Stock:: 3591

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FM25V02A-DGTR Specifications

Package/Case:
8-WDFN Exposed Pad
Packaging:
Tape & Reel (TR)
Series:
F-RAM™
ProductStatus:
Active
MemoryType:
Non-Volatile
MemoryFormat:
FRAM
Technology:
FRAM (Ferroelectric RAM)
MemorySize:
256Kb (32K x 8)
MemoryInterface:
SPI
ClockFrequency:
40 MHz
WriteCycleTime-WordPage:
-
AccessTime:
-
Voltage-Supply:
2V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

FM25V02A-DGTR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including FM25V02A-DGTR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for FM25V02A-DGTR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

FM25V02A-DGTR information

Views：

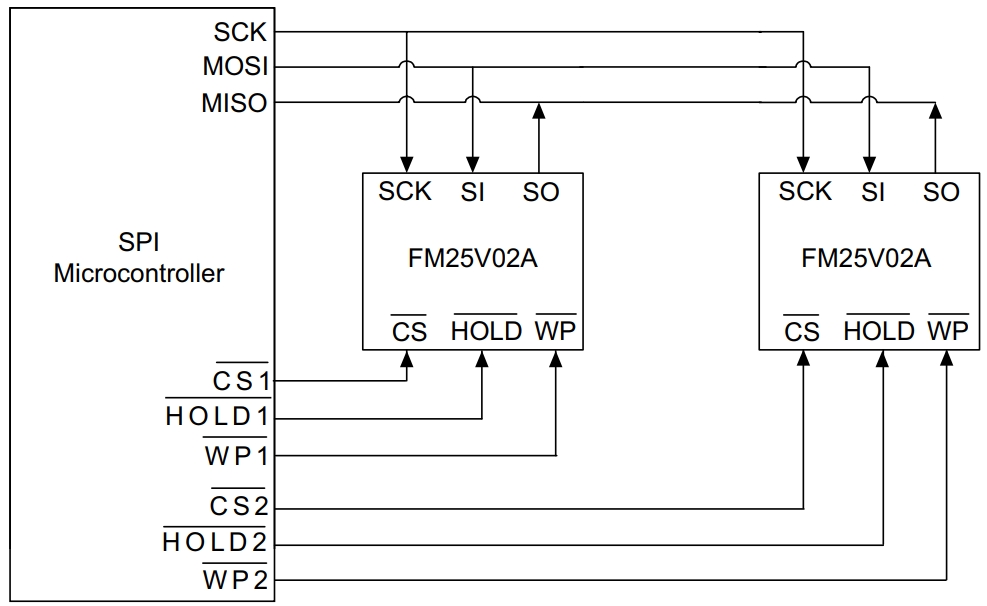

FM25V02A-DGTR Typical application Circuitry

FM25V02A-DGTR

The FM25V02A-DGTR is a 256Kb (32K x 8) non-volatile ferroelectric random access memory (FRAM) chip from Cypress Semiconductor (now Infineon Technologies). It provides high-speed read and write access, low power consumption, and excellent data retention, making it suitable for applications such as data logging, metering, and industrial control systems where data integrity and low power are crucial.

FM25V02A-DGTR Specifications:

1. Memory Size: 256Kb (32K x 8), providing ample storage for various applications.

2. Interface: Serial Peripheral Interface (SPI) for easy integration with microcontrollers.

3. Voltage Range: Operates within a 2.0V to 3.6V range, compatible with low-power systems.

4. Data Retention: Offers data retention of 151 years, ensuring long-term data integrity.

Application in a Data Logging System:

The FM25V02A-DGTR is commonly used in data logging systems where non-volatile memory is required to store sensor readings or event logs.

Circuit Connection Guide:

1. Power Supply Connection: Connect the power supply (2.0V to 3.6V) to pin 8 (VDD) and ground to pin 4 (VSS) of the FM25V02A-DGTR.

2. SPI Interface Setup: Interface the FM25V02A-DGTR with a microcontroller using the SPI protocol. Connect the microcontroller's MOSI to pin 5 (SI), MISO to pin 2 (SO), SCK to pin 6 (SCK), and a GPIO pin to pin 7 (CS) for chip select.

3. Write-Protect Configuration: Connect pin 3 (WP) to VDD or a GPIO pin to enable or disable write protection as needed.

4. Hold Feature: Connect pin 1 (HOLD) to VDD or control it with a GPIO pin to pause serial communication without resetting the serial sequence.

Design considerations:

- Power Supply Stability: To ensure the FM25V02A-DGTR operates properly, make sure the power supply is steady within the given voltage range.

- SPI Communication Integrity: Configure the SPI communication parameters correctly to match between the microcontroller and the FM25V02A-DGTR.

- Write-Protection Management: Implement logic to control the write-protect pin (WP) based on the application's requirements to prevent unintended writes.

- Hold Feature Utilization: Use the HOLD pin effectively in applications where pausing serial communication is necessary.

In data logging systems, the FM25V02A-DGTR serves as a reliable non-volatile memory solution for storing sensor readings or event logs, ensuring data integrity even in the absence of power. Designing a circuit with this FRAM chip requires careful consideration of power supply stability, SPI communication integrity, write-protection management, and the effective use of the hold feature to achieve optimal performance and data reliability.
