Once you got to include Wi-Fi network to a extend, the ESP-01 Wi-Fi module is an excellent choice. Compact, reasonable, and simple to utilize, this modest module permits your gadgets to associate wirelessly to the web, opening up a world of conceivable outcomes for IoT ventures. Whether you're fair getting begun or looking to refine your setup, this guide will walk you through the basics of setting up the ESP-01 module and give a few tips to assist you get the foremost out of it.

Getting Begun with the ESP-01 Wi-Fi Module

The ESP-01 may be a small Wi-Fi module that's fueled by the ESP8266 chip. It highlights 2 GPIO pins, a UART interface, and an coordinates recieving wire. Whereas its compact estimate makes it perfect for ventures with space limitations, it moreover implies that cautious consideration is required amid setup.

ESP-01 and ESP8266

Understanding ESP-01 and ESP8266 Pinout

The ESP-01 may be a small Wi-Fi module based on the ESP8266 chip, making it a predominant choice for IoT wanders. In show disdain toward of its compact appraise, the ESP-01 packs a punch, promoting a solid set of highlights for farther communication. Be that as it may, working with this module requires a clear understanding of its pinout and how it interfaces with other components in your ventures.

The ESP-01 Module Outline

The ESP-01 module is built around the ESP8266 chip, which is known for its moo fetched and tall productivity. The module itself comes with eight pins, which could seem constrained compared to other modules, but they are deliberately laid out to cover basic capacities.

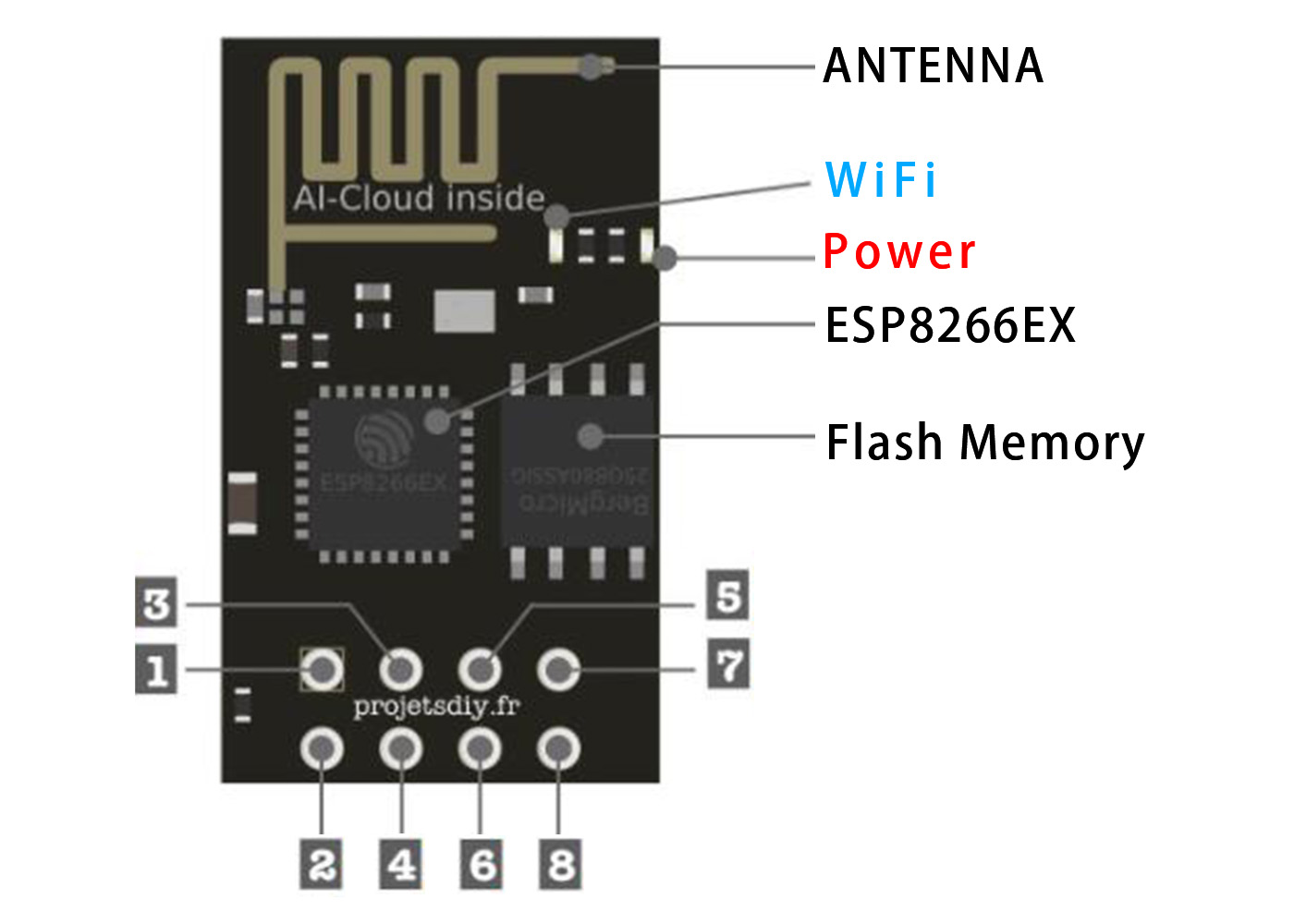

ESP-01 Pin Diagram

Here's a breakdown of the ESP-01 pinout:

Esp8266 Pinout

The ESP8266 chip itself, when used in more advanced modules like the ESP-12 or standalone, offers a broader range of pins, each serving different purposes:

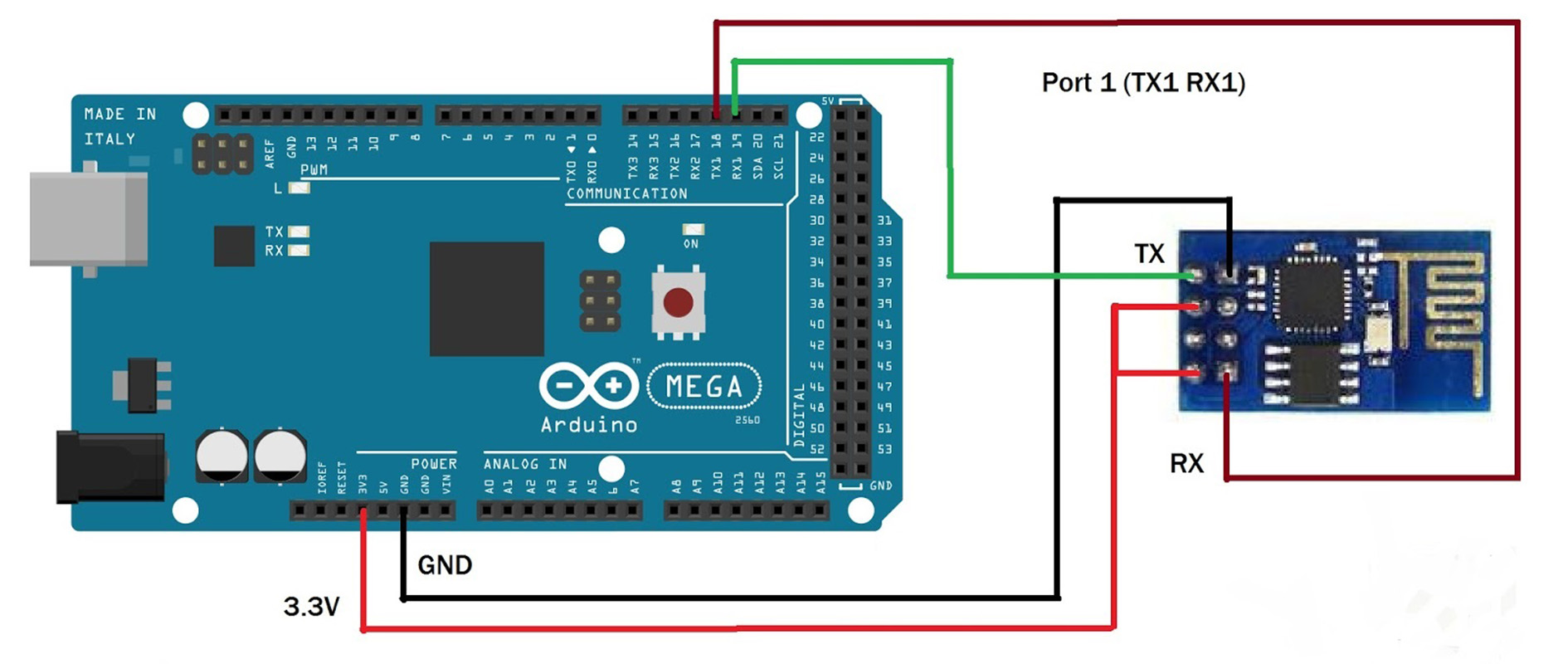

Connecting the ESP-01 to a Serial Adapter

To program the ESP-01, you'll require a USB-to-serial connector. Here's how to put through the module:

Interface the VCC and GND pins on the ESP-01 to the 3.3V and ground pins on the connector.

Interface the TX stick of the ESP-01 to the RX stick of the connector, and bad habit versa.

Pull the CH_PD (EN) pin high by connecting it to VCC.

Connect GPIO0 to ground (only when uploading code).

RST pin can be connected to a button for resetting the module if needed.

Uploading Code to the ESP-01

Once the ESP-01 is associated to your computer by means of a serial connector, you'll transfer code to it utilizing the Arduino IDE or other programming situations.

Install the ESP8266 board chief within the Arduino IDE.

Select the correct board and port from the tools menu (e.g., "Generic ESP8266 Module").

Write or open a sketch you want to upload.

Put the module in flash mode by grounding GPIO0.

Upload the code and then remove the ground from GPIO0 to run the program.

Power Considerations

The ESP-01 is a power-hungry module, especially during Wi-Fi transmissions. It's crucial to provide a stable 3.3V supply that can deliver at least 500mA. Avoid using the 3.3V output from an Arduino board as it may not be sufficient. Instead, use a dedicated 3.3V regulator or power supply.

Essential Tips for Using the ESP-01

Maximizing Wi-Fi Range and Stability

The ESP-01 module comes with an coordinates PCB radio wire, which is adequate for most indoor applications. In any case, the situation of the module can altogether influence its Wi-Fi extend and soundness. Here are many tips:

Dodge putting the module close metal objects or in encased spaces, as this could meddled with the recieving wire.

Position the module absent from other electronic components that might cause electromagnetic obstructions.

Ensure a stable power supply to prevent the module from resetting during Wi-Fi transmissions.

Optimizing Code for Limited Resources

The ESP-01, like other ESP001 modules, including the esp01s, has limited flash memory and RAM. Efficient coding is essential to avoid running out of resources. Here are some tips to help:

Minimize the utilize of worldwide factors to spare Slam.

Utilize the PROGMEM order to store consistent information in streak memory rather than Smash.

Dodge memory-intensive operations such as expansive cluster controls unless fundamental.

Overhauling Firmware

The ESP-01 module benefits from intermittent firmware upgrades, which can move forward execution, include highlights, and settle bugs. To overhaul the firmware:

Download the most recent firmware from a trusted source.

Utilize the ESP8266 Flasher device to transfer the firmware to the module.

Guarantee the module is in streak mode amid the upgrade prepare.

Investigating Common Issues

Indeed with the leading setup, you might experience a few issues with the ESP-01 module. Here are many common issues and their arrangements:

Module not reacting: Check the control supply and guarantee that the CH_PD pin is pulled tall.

Transfer blunders: Ensure that GPIO0 is grounded amid the transfer which the right board and harbour are chosen within the IDE.

Wi-Fi association issues: Check your router's settings, guarantee a solid flag, and confirm that your code is accurately designed for your organize.

Investigating Progressed Highlights

Whereas the ESP-01 module is regularly utilized for essential Wi-Fi network, it has a few progressed highlights that can be utilized for more complex ventures.

Utilizing Profound Rest Mode

In the event that you're working on a battery-powered extend, preserving control is vital. The ESP-01 underpins profound rest mode, which altogether decreases control utilization by putting the module into a low-power state when not in utilize. Here's how to empower it:

Interface GPIO16 to the RST stick to empower wake-up from profound rest.

In your code, utilize the ESP.deepSleep() work to put the module to rest for a indicated period.

Growing GPIO Capabilities

In spite of the fact that the ESP-01 has as it were two GPIO pins, you'll extend its capabilities by utilizing techniques like I2C or SPI communication to associate to outside modules or by utilizing move registers. This allows you to associate numerous sensors, actuators, or other peripherals to the module, expanding its usefulness.

Accessing the esp8266-01 datasheet

For a more profound understanding of the ESP-01's capabilities, alluding to the esp8266-01 datasheet can be amazingly accommodating. This archive gives nitty gritty specialized data, counting electrical characteristics, stick portrayals, and more. It's an basic asset for anybody looking to investigate the complete potential of the ESP-01 module.

Conclusion

The ESP-01 Wi-Fi module could be a capable device for including remote network to your ventures. By understanding the esp01 pin diagram, setting up the module accurately, and taking after the basic tips given in this guide, you'll guarantee a fruitful and smooth encounter. Whether you are a specialist looking to tinker with IoT gadgets or a engineer working on a proficient extend, the ESP-01 offers a strong and solid solution for joining Wi-Fi into your plans.

Understanding the esp 8266 pinout and the esp 01 pinout is pivotal for getting the foremost out of this module, particularly when interfacing it to other components or investigating potential issues. With its compact estimate and flexible highlights, the ESP-01 proceeds to be a prevalent choice among creators and engineers alike. So, plunge in, test, and see how this little module can bring your ventures to life!
