Microchip Technology ENC28J60-I/SS

Part No.:: ENC28J60-I/SS

Manufacturer:: Microchip Technology

Package:: 28-SSOP (0.209, 5.30mm Width)

Datasheet:: ENC28J60-I/SS.pdf

Description:: IC ETHERNET CTRLR W/SPI 28SSOP

In Stock:: 2520

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ENC28J60-I/SS Specifications

Package/Case:
28-SSOP (0.209, 5.30mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
Protocol:
Ethernet
Function:
Controller
Interface:
SPI
Standards:
10 Base-T PHY
Voltage-Supply:
3.1V ~ 3.6V
Current-Supply:
160mA
OperatingTemperature:
-40°C ~ 85°C

ENC28J60-I/SS this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ENC28J60-I/SS price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ENC28J60-I/SS to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ENC28J60-I/SS information

Views：

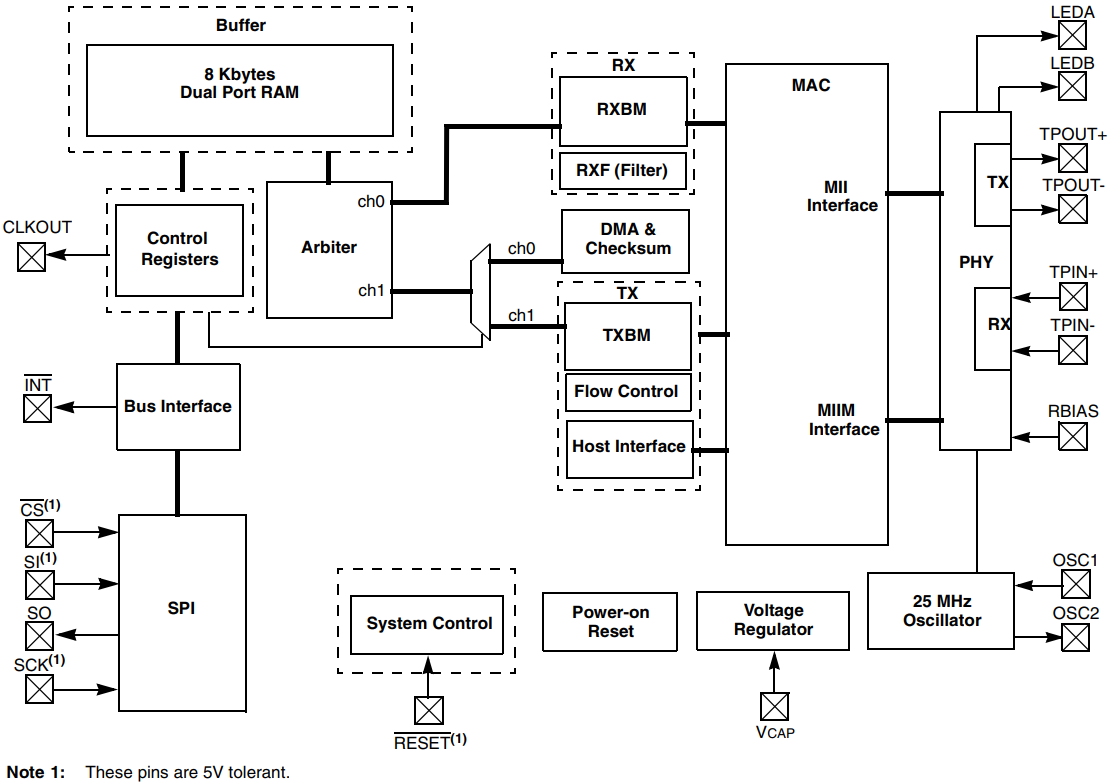

ENC28J60-I/SS Typical application Circuitry

ENC28J60-I SS

The ENC28J60-I/SS is part of the ENC28J60 series, a family of stand-alone Ethernet controllers with an integrated MAC and PHY, SPI interface, and a wealth of features to handle network communication. The ENC28J60-I/SS is particularly suited for embedded applications requiring Ethernet connectivity, such as IoT devices, industrial automation, and home networked devices.

1. Power Supply Connections: The ENC28J60-I/SS requires a 3.3V power supply. Connect the VDD pin to a 3.3V source, and connect the VSS pin to the ground. It's vital to ensure that the power supply is stable to ensure the proper functioning of the device.

2. SPI Interface Connections: This controller communicates with microcontrollers using the SPI protocol. Connect the SI (Serial Input), SO (Serial Output), SCK (Serial Clock), and CS (Chip Select) pins to the corresponding SPI pins of the microcontroller. This interface facilitates the exchange of control information and data with the Ethernet controller.

3. Ethernet Interface Connections: For network communication, connect the TX+ (transmit positive), TX- (transmit negative), RX+ (receive positive), and RX- (receive negative) pins to an RJ45 Ethernet jack that integrates magnetics. This setup handles the physical layer of Ethernet transmissions.

4. Reset Pin: The RESET pin is utilized for resetting the controller. This pin can be connected to a microcontroller for software-driven reset or to a manual reset mechanism. This pin should normally be kept high by connecting it to VDD via a pull-up resistor.

5. External Clock Source: The ENC28J60-I/SS requires a 25 MHz crystal oscillator. Connect a crystal across the OSC1 and OSC2 pins, and ensure the use of appropriate load capacitors for stable operation.

6. Interrupt Output (INT Pin): The INT pin can be used to notify the microcontroller about specific events within the ENC28J60-I/SS, like packet receipt or completion of transmission.

7. LED Connectivity: The controller features LEDA and LEDB pins for connection to external LEDs, which can be configured to display network status, activity, or collision events based on the controller's settings.

8. Decoupling Capacitors: It is advisable to place decoupling capacitors near the VDD and VSS pins to filter out supply noise, which is crucial for maintaining stable operation.

9. PCB Design Recommendations: Design the PCB with short and direct traces for the SPI and Ethernet connections to minimize signal loss and interference. Also, consider appropriate grounding and shielding for noise reduction.

10. Thermal Management: While the ENC28J60-I/SS doesn't typically generate excessive heat, thermal considerations are still important, particularly in compact or enclosed designs.

In conclusion, the ENC28J60-I/SS from the ENC28J60 series is an Ethernet controller designed for embedded systems that require networking capabilities. Effective implementation involves connecting power supply, SPI interface, Ethernet interface, reset mechanism, external clock, interrupts, LEDs, decoupling capacitors, and thoughtful PCB design, keeping in mind thermal management. These steps ensure the efficient and reliable operation of the ENC28J60-I/SS in network-enabled applications.
