Silicon Labs EFM8SB20F32G-B-QFN32

Part No.:: EFM8SB20F32G-B-QFN32

Manufacturer:: Silicon Labs

Package:: 32-VFQFN Exposed Pad

Datasheet:: EFM8SB20F32G-B-QFN32.pdf

Description:: IC MCU 8BIT 32KB FLASH 32QFN

In Stock:: 2273

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

EFM8SB20F32G-B-QFN32 Specifications

Package/Case:
32-VFQFN Exposed Pad
Packaging:
Tube
Series:
Sleepy Bee
RoHS:
RoHS
Speed:
25MHz
RAM Size:
4.25K x 8
Core Size:
8-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, POR, PWM, WDT
Connectivity:
EBI/EMI, I²C, SMBus, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
24
Core Processor:
CIP-51 8051
Data Converters:
A/D 23x10b
Oscillator Type:
Internal
Program Memory Size:
32KB (32K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

EFM8SB20F32G-B-QFN32 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including EFM8SB20F32G-B-QFN32 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for EFM8SB20F32G-B-QFN32 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

EFM8SB20F32G-B-QFN32 information

Views：

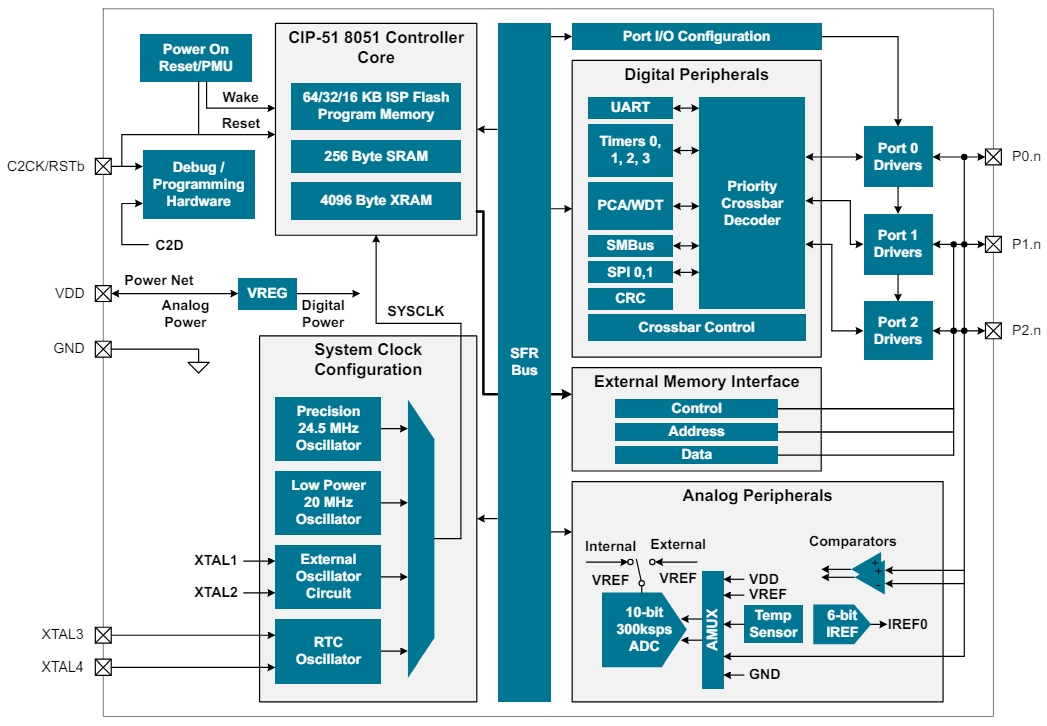

EFM8SB20F32G-B-QFN32 Typical application Circuitry

EFM8SB20F32G-B-QFN32

The EFM8SB20F32G-B-QFN32 is a high-performance 8-bit microcontroller from Silicon Labs' EFM8 Sleepy Bee family. This microcontroller is specifically designed for applications requiring low power consumption combined with high processing capability, making it suitable for a range of embedded systems, particularly those in battery-operated and power-sensitive environments.

Key Features and Specifications:

- Core: High-speed pipelined 8051-compatible microcontroller core.

- Memory: 32 KB of flash memory and 2 KB of RAM, supporting complex applications and data storage.

- Peripherals: Includes a full range of peripherals such as multiple timers, UART, SPI, I2C interfaces, and 10-bit ADCs, providing flexibility in device connectivity and sensor integration.

- Pin Count: Available in a compact 32-pin QFN package, optimizing board space.

- Energy Efficiency: Features low power modes, including a stop mode that reduces power consumption to just 0.1 µA, ideal for extending battery life in portable devices.

Application Scenario: Wearable Health Monitoring Device

In this application, the EFM8SB20F32G-B-QFN32 is utilized to control a wearable health monitoring device, which tracks heart rate, body temperature, and other physiological parameters.

Circuit Design Methodology:

1. Core System Configuration:

- Primary Microcontroller: Employ the EFM8SB20F32G-B-QFN32 as the main processor to collect data from sensors, process this data, and communicate with an external interface or display.

2. Power Supply Connection:

- Power Source Integration: Connect the VDD pin to a stable 3.3V power source, derived from a small lithium-ion battery. Include a decoupling capacitor near the VDD pin to stabilize the voltage and filter out noise.

3. Sensor Interface Configuration:

- Connecting Sensors: Attach a heart rate sensor to one of the ADC channels to monitor the user's heart rate continuously. Connect a temperature sensor using another ADC channel to measure body temperature.

4. Communication Setup:

- Data Transmission: Implement the UART interface for communication with a smartphone app or a computer for data logging and analysis. This can help in real-time health monitoring and medical assessments.

5. Programming and Debugging:

- Firmware Updates and Diagnostics: Utilize the C2 (a two-wire debugging and programming interface) pins, specifically C2D (Data) and C2CK (Clock), for programming the EFM8SB20F32G-B-QFN32 and conducting firmware updates or debugging.

Design Considerations:

- Signal Integrity and Noise Management: Given the sensitivity of physiological data, ensure that the PCB layout minimizes noise, particularly around the ADC inputs and power supply lines.

- Electromagnetic Interference (EMI): Use shielding techniques and keep digital and analog circuitry physically separated on the PCB to minimize EMI, ensuring accurate sensor readings.

- Thermal Considerations: While the EFM8SB20F32G-B-QFN32 is not a high-power device, ensure any local heat generation does not affect the temperature sensor readings or wearer's comfort.

- Battery Life Optimization: Optimize the software to utilize the low power modes of the EFM8SB20F32G-B-QFN32 effectively. This includes putting the microcontroller into a deep sleep mode when not processing or transmitting data.

- Safety and Reliability: Implement fail-safes in the firmware to handle potential errors or data transmission issues, ensuring reliable operation of the health monitoring device.

By using the EFM8SB20F32G-B-QFN32 in a wearable health monitoring device, its capabilities in managing sensor data and executing low-power operations can be fully leveraged to deliver continuous, real-time health tracking. This application demonstrates how this microcontroller can be effectively utilized in health tech, providing critical data that aids in health management and medical diagnostics.
