Microchip Technology DSPIC33FJ64MC506A-I/PT

Part No.:: DSPIC33FJ64MC506A-I/PT

Manufacturer:: Microchip Technology

Package:: 64-TQFP

Datasheet:: DSPIC33FJ64MC506A-I/PT.pdf

Description:: IC MCU 16BIT 64KB FLASH 64TQFP

In Stock:: 3095

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DSPIC33FJ64MC506A-I/PT Specifications

Package/Case:
64-TQFP
Packaging:
Tray
Series:
dsPIC™ 33F
RoHS:
RoHS
Speed:
40 MIPs
RAM Size:
8K x 8
Core Size:
16-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, WDT
Connectivity:
CANbus, I²C, IrDA, LINbus, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
53
Core Processor:
dsPIC
Data Converters:
A/D 16x10b/12b
Oscillator Type:
Internal
Program Memory Size:
64KB (64K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

DSPIC33FJ64MC506A-I/PT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DSPIC33FJ64MC506A-I/PT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DSPIC33FJ64MC506A-I/PT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DSPIC33FJ64MC506A-I/PT information

Views：

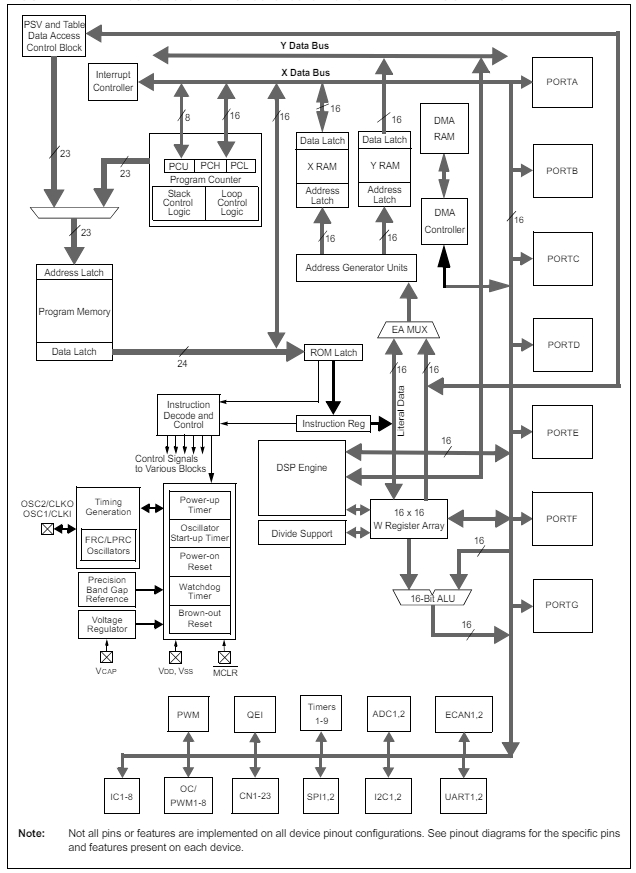

DSPIC33FJ64MC506A-I/PT Typical application Circuitry

DSPIC33FJ64MC506A-I PT

The DSPIC33FJ64MC506A-I/PT is a dynamic digital signal controller (DSC) from Microchip Technology, uniquely designed to merge the functional attributes of a microcontroller with the computational strengths of a digital signal processor. This powerful integration allows it to excel in complex applications that demand precise control and extensive data processing, making it ideal for advanced motor control systems, automated industrial machinery, sophisticated sensor interfacing, and robotic controls.

Key Features and Specifications:

- Robust DSP Capabilities: This DSC features a potent DSP core that facilitates efficient handling of complex algorithms, ideal for rapid signal processing and advanced control tasks.

- Extensive Memory: It is equipped with 64 KB of flash memory and 16 KB of SRAM, sufficient for handling intricate software routines and data-intensive operations.

- Advanced Peripheral Integration: Includes multiple PWM outputs, ADC inputs, and comprehensive communication options such as UART, SPI, and I2C, supporting diverse system requirements.

- High-Resolution PWM Channels: These are specifically designed for precise motor control, allowing for accurate speed and position adjustments.

- Flexible I/O Options: Provides numerous I/O capabilities for interfacing with various sensors, actuators, and other electronic components.

Application Scenario: Automated Industrial Conveyor System

In an automated industrial conveyor system, the DSPIC33FJ64MC506A-I/PT operates as the central controller, managing conveyor belt motors and processing inputs from various sensors to ensure efficient material handling and workflow optimization.

Circuit Design Methodology:

1. Power Supply Connection (VDD, VSS):

- VDD: Connect the VDD pins to a reliable 3.3V or 5V power supply, ensuring the microcontroller is adequately powered for optimal performance.

- VSS: Ground all VSS pins effectively to the system's ground plane to stabilize the controller and minimize operational noise.

2. Motor Control Outputs (PWM Outputs):

- Deploy the PWM outputs to regulate the speed and torque of the conveyor belt motors through precise signal modulation, essential for the smooth operation of the conveyor system.

3. Sensor Integration (ADC Inputs):

- Attach various sensors-such as optical sensors for material detection and load sensors for weight measurement-to the ADC inputs. Accurate sensor data acquisition is vital for real-time system adjustments and process accuracy.

4. System Communication (UART, SPI, I2C Pins):

- Utilize UART for system diagnostics and communication with other industrial controllers, SPI for rapid data transfer with high-speed sensors, and I2C for connecting lower-speed peripheral devices within the conveyor system.

5. Firmware Upload and Diagnostics (PGC, PGD Pins):

- Connect these programming and debugging pins to appropriate tools for firmware uploads, routine system checks, and troubleshooting to maintain high system reliability and performance.

Design Considerations:

- Electromagnetic Interference (EMI) Management: Implement robust shielding and grounding techniques to mitigate EMI, crucial in industrial environments with high electrical noise.

- Power Supply Reliability: Ensure that the power supply is capable of handling variable load demands without fluctuations, which is critical for maintaining system stability and preventing hardware failures.

- Signal Integrity: Carefully design the PCB and wire routing to protect signal integrity, especially for the PWM and ADC lines, which are susceptible to interference in industrial settings.

- Thermal Management: Monitor and manage the heat dissipation of the DSPIC33FJ64MC506A-I/PT and associated motor drivers, possibly incorporating active cooling solutions to prevent overheating in enclosed spaces.

- System Safety and Redundancy: Integrate safety features such as overload protection and emergency stop mechanisms. Include redundancy in critical sensor circuits to enhance system robustness and prevent downtime.

Implementing the DSPIC33FJ64MC506A-I/PT in an automated industrial conveyor system demonstrates its ability to manage and optimize complex industrial processes efficiently. This application underlines the DSC's pivotal role in enhancing productivity and operational accuracy in modern industrial environments.
