Microchip Technology DSPIC33FJ64MC204-I/PT

Part No.:: DSPIC33FJ64MC204-I/PT

Manufacturer:: Microchip Technology

Package:: 44-TQFP

Datasheet:: DSPIC33FJ64MC204-I/PT.pdf

Description:: IC MCU 16BIT 64KB FLASH 44TQFP

In Stock:: 3279

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DSPIC33FJ64MC204-I/PT Specifications

Package/Case:
44-TQFP
Packaging:
Tray
Series:
dsPIC™ 33F
RoHS:
RoHS
Speed:
40 MIPs
RAM Size:
8K x 8
Core Size:
16-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, WDT
Connectivity:
I²C, IrDA, LINbus, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
35
Core Processor:
dsPIC
Data Converters:
A/D 9x10b/12b
Oscillator Type:
Internal
Program Memory Size:
64KB (64K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

DSPIC33FJ64MC204-I/PT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DSPIC33FJ64MC204-I/PT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DSPIC33FJ64MC204-I/PT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DSPIC33FJ64MC204-I/PT information

Views：

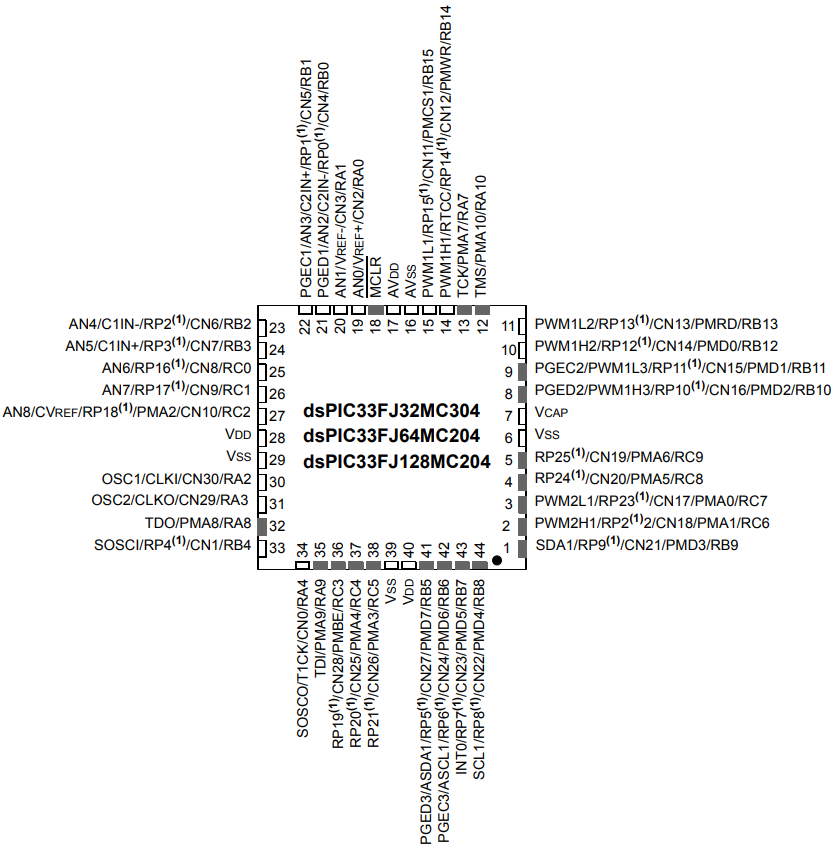

DSPIC33FJ64MC204-I/PT Typical application Circuitry

DSPIC33FJ64MC204-I PT

The DSPIC33FJ64MC204-I/PT is a member of Microchip Technology's dsPIC33FJ series, which is a family of digital signal controllers (DSCs). This series is known for its integration of the functionalities of microcontrollers (MCUs) with the enhanced capabilities of digital signal processing (DSP). The DSPIC33FJ64MC204-I/PT, in particular, is designed for applications that require efficient signal processing and control, such as in automotive systems, industrial automation, and advanced motor control.

1. Power Supply Connection: The DSPIC33FJ64MC204-I/PT typically operates with a core voltage of 3.3V. Connect the VDD pins to a stable 3.3V power source. For the DSC to operate as intended, it is critical to make sure the power supply is controlled and steady.

2. Grounding for Stability: All the VSS pins should be connected to the ground of your circuit. A solid ground connection is crucial for reducing electrical noise and ensuring stable operation of the DSC.

3. External Clock Source Setup: This device requires an external clock for its operation. Connect a suitable oscillator to the OSC1/CLKI and OSC2/CLKO pins. The stability and accuracy of this clock source are vital for the DSC's performance.

4. I/O Pin Configuration: The DSPIC33FJ64MC204-I/PT offers multiple I/O pins. Configure these pins based on the requirements of your application, whether they are being used for digital inputs/outputs or for specialized functions such as UART, SPI, I2C, or PWM.

5. Analog Input Connections: If your application involves analog signals, connect them to the ANx pins of the DSC. Make sure that the analog signals are properly conditioned to fit the input range of the DSC's analog-to-digital converters (ADC).

6. Programming and Debugging Interface: For programming the DSC, use the ICSP (In-Circuit Serial Programming) interface. Ensure that the necessary data and clock lines are connected to a compatible microcontroller programming tool.

7. Decoupling Capacitors: Place decoupling capacitors close to the VDD pins to filter out noise and provide a stable power supply, which is crucial for the precise operation of the DSC.

8. Thermal Management: Depending on the processing load, the DSPIC33FJ64MC204-I/PT can generate heat. Implement appropriate heat dissipation methods, such as heatsinks, if necessary.

9. PCB Layout Design: Design the PCB to minimize noise and ensure signal integrity, especially in systems with high-speed digital or sensitive analog signals. Trace lengths, routing techniques, and the division of digital and analog portions are all taken into account.

In conclusion, the DSPIC33FJ64MC204-I/PT from the dsPIC33FJ series is an advanced digital signal controller, ideal for applications that require both control and DSP functionalities. Proper implementation involves planning for power supply connections, grounding, external clock setup, I/O pin arrangement, analog input configuration, programming interface setup, decoupling capacitors, thermal management, and thoughtful PCB design. These steps are crucial for fully utilizing the DSPIC33FJ64MC204-I/PT in complex control and signal processing applications.
