Microchip Technology DSPIC33FJ64GS608T-50I/PT

Part No.:: DSPIC33FJ64GS608T-50I/PT

Manufacturer:: Microchip Technology

Package:: 80-TQFP

Datasheet:: DSPIC33FJ64GS608T-50I/PT.pdf

Description:: IC MCU 16BIT 64KB FLASH 80TQFP

In Stock:: 3834

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DSPIC33FJ64GS608T-50I/PT Specifications

Package/Case:
80-TQFP
Packaging:
Tape & Reel (TR)
Series:
dsPIC™ 33F
RoHS:
RoHS
Speed:
50 MIPs
RAM Size:
9K x 8
Core Size:
16-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, QEI, POR, PWM, WDT
Connectivity:
CANbus, I²C, IrDA, LINbus, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
74
Core Processor:
dsPIC
Data Converters:
A/D 18x10b; D/A 1x10b
Oscillator Type:
Internal
Program Memory Size:
64KB (64K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

DSPIC33FJ64GS608T-50I/PT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DSPIC33FJ64GS608T-50I/PT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DSPIC33FJ64GS608T-50I/PT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DSPIC33FJ64GS608T-50I/PT information

Views：

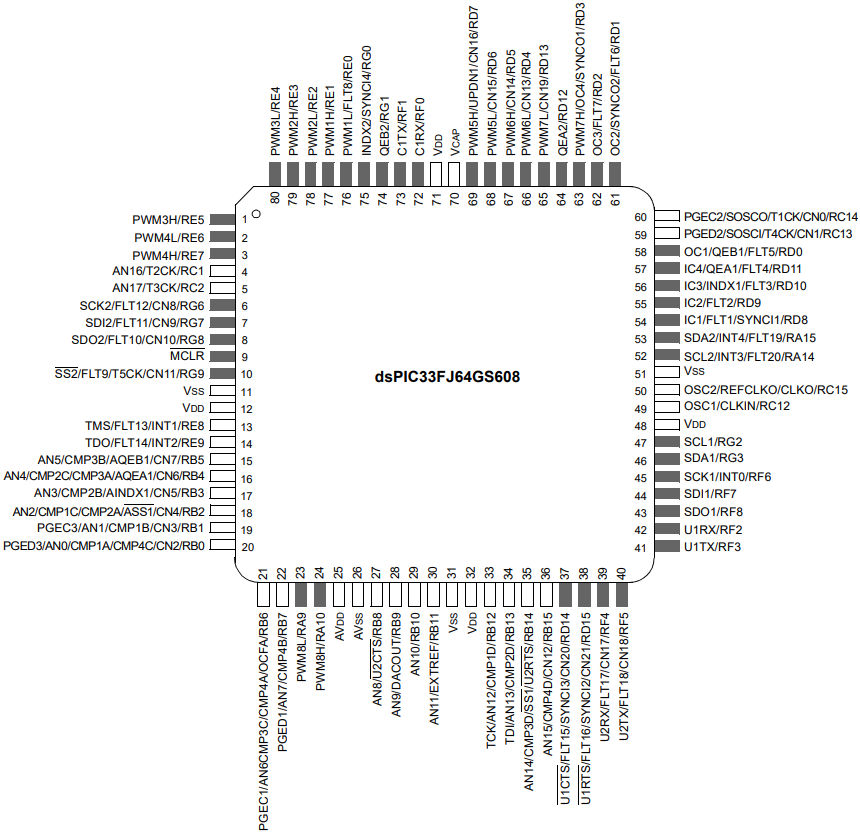

DSPIC33FJ64GS608T-50I/PT Typical application Circuitry

DSPIC33FJ64GS608T-50I PT

The DSPIC33FJ64GS608T-50I/PT is part of the dsPIC33FJ series from Microchip Technology, a family of digital signal controllers (DSCs) that combine the features of microcontrollers with the enhanced computational capabilities of digital signal processors. This particular model, the DSPIC33FJ64GS608T-50I/PT, is tailored for applications requiring advanced control and efficient signal processing, such as in power conversion, motor control, and various industrial automation systems.

1. Power Supply Connections: The DSPIC33FJ64GS608T-50I/PT typically operates with a core voltage of 3.3V. Connect the VDD pins to a stable 3.3V power source. The stability and regulation of this power supply are essential for the DSC's optimal operation.

2. Grounding the Device: Ensure all VSS (ground) pins are connected to the ground in your circuit. A robust ground connection is crucial for reducing electrical noise and ensuring stable operation.

3. External Clock Source Setup: This DSC requires an external clock for its operation. Connect a suitable oscillator to the OSC1/CLKI and OSC2/CLKO pins. The quality of the clock source greatly affects the performance of the DSC.

4. Configuring I/O Pins: The DSPIC33FJ64GS608T-50I/PT offers a variety of I/O pins. Configure these pins based on the specific requirements of your application, whether for input, output, or special functions like UART, SPI, I2C, or PWM.

5. Analog Inputs Configuration: If analog inputs are required, connect them to the ANx pins. Ensure these inputs are conditioned appropriately to match the input range of the DSC's ADC.

6. Programming and Debugging Interface: Use the ICSP (In-Circuit Serial Programming) and JTAG interfaces for debugging and programming. Connect the necessary data and clock lines to a compatible programmer/debugger tool.

7. Decoupling Capacitors for Power Stability: Place decoupling capacitors near the VDD pins to filter out noise and stabilize the power supply, crucial for accurate operation of the DSC.

8. Thermal Management: Depending on processing load, the DSPIC33FJ64GS608T-50I/PT might generate heat. Implement suitable heat dissipation strategies, such as heatsinks, to maintain optimal operating temperature.

9. PCB Layout Design: In systems with sensitive analog signals or high-speed digital signals, it is very important to design the PCB to reduce noise and maintain signal integrity. Trace lengths, routing techniques, and the division of digital and analog portions are all taken into account.

In summary, the DSPIC33FJ64GS608T-50I/PT from the dsPIC33FJ series is a powerful digital signal controller suitable for a wide range of applications that demand both control and digital signal processing capabilities. Effective implementation involves careful planning for power supply connections, grounding, external clock configuration, I/O pin setup, analog input preparation, programming interface arrangement, decoupling capacitors, thermal management, and meticulous PCB layout. These considerations are vital for harnessing the full potential of the DSPIC33FJ64GS608T-50I/PT in sophisticated processing and control tasks.
