Microchip Technology DSPIC33FJ256GP506A-I/PT

Part No.:: DSPIC33FJ256GP506A-I/PT

Manufacturer:: Microchip Technology

Package:: 64-TQFP

Datasheet:: DSPIC33FJ256GP506A-I/PT.pdf

Description:: IC MCU 16BIT 256KB FLASH 64TQFP

In Stock:: 2757

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DSPIC33FJ256GP506A-I/PT Specifications

Package/Case:
64-TQFP
Packaging:
Tray
Series:
dsPIC™ 33F
RoHS:
RoHS
Speed:
40 MIPs
RAM Size:
16K x 8
Core Size:
16-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
AC'97, Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT
Connectivity:
CANbus, I²C, IrDA, LINbus, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
53
Core Processor:
dsPIC
Data Converters:
A/D 18x10b/12b
Oscillator Type:
Internal
Program Memory Size:
256KB (256K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

DSPIC33FJ256GP506A-I/PT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DSPIC33FJ256GP506A-I/PT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DSPIC33FJ256GP506A-I/PT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DSPIC33FJ256GP506A-I/PT information

Views：

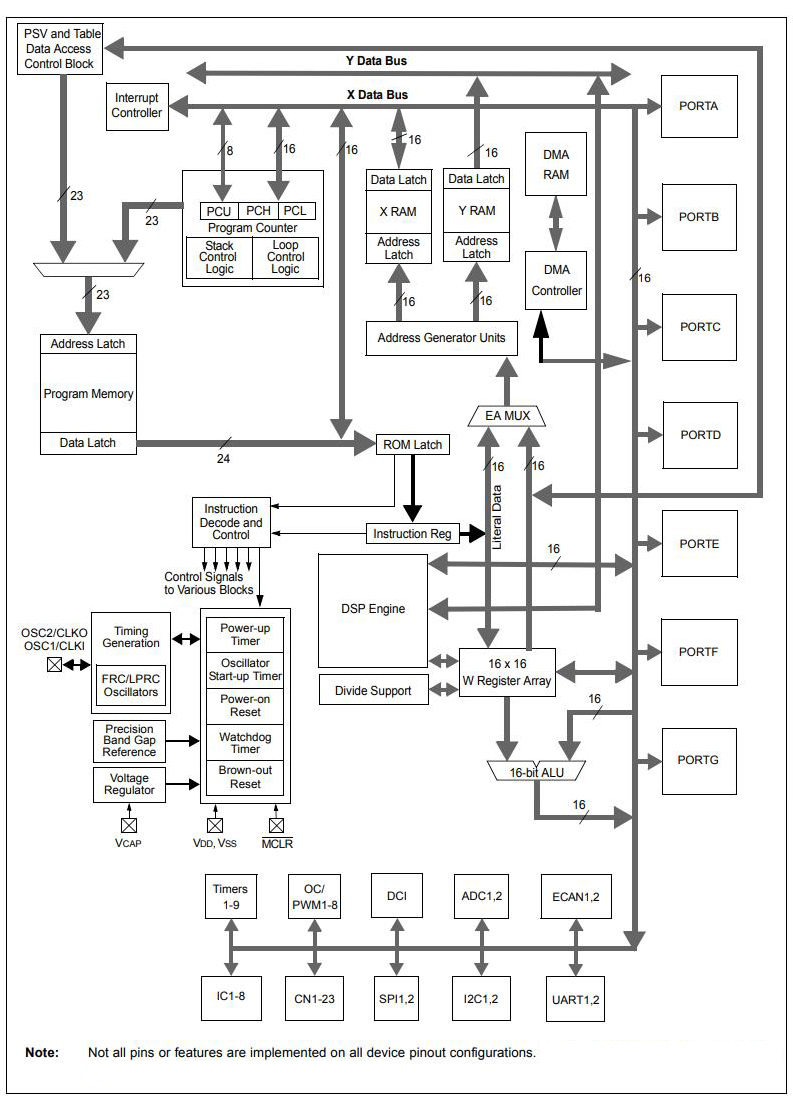

DSPIC33FJ256GP506A-I/PT Typical application Circuitry

DSPIC33FJ256GP506A-I PT

The DSPIC33FJ256GP506A-I/PT is a variant of the Microchip's dsPIC33F microcontrollers family. This chip is characterized by its Digital Signal Processing (DSP) capabilities, making it a powerful tool in many areas of electronics. It's a high-performance 16-bit digital signal controller that integrates both DSP and microcontroller functionalities.

Functionality: The can be used in a variety of applications because of its extensive feature set. This includes 256 KB of flash memory, 16 KB of RAM, a variety of communication interfaces such as UART, SPI, I2C, CAN, and USB, as well as ADC and PWM modules. A built-in PLL for frequency multiplication and a maximum operating frequency of 40 MHz are both features of this device. The chip also provides an extensive set of peripherals including timers, capture/compare/PWM modules, analog to digital converters, and more.

Application Scenarios: The DSPIC33FJ256GP506A-I/PT is widely used in many application areas such as motor control (e.g., brushless DC motors, AC induction motors), power conversion (e.g., DC to DC converters, inverters), audio processing, industrial automation, and even robotics.

Characteristic Features: The DSPIC33FJ256GP506A-I/PT has some prominent features:

1. High-performance DSP engine: This allows efficient mathematical computations which is beneficial in control-based applications.

2. Enhanced peripherals: These include PWM modules for motor control, high-speed ADCs for quick data acquisition, UART, SPI, I2C for communication, and more.

3. Robust memory: The chip comes with 256KB of Flash memory and 16KB of RAM which allows it to handle complex control algorithms and data structures.

4. High-speed operation: It operates at a maximum frequency of 40MHz with built-in PLL for frequency multiplication.

5. Package: The DSPIC33FJ256GP506A-I/PT comes in an 80-pin TQFP package.

As an example application, let's look at using the DSPIC33FJ256GP506A-I/PT in a brushless DC motor control application.

1. Motor Connections: Connect the PWM outputs of the DSPIC33FJ256GP506A-I/PT to a motor driver circuit. The PWM outputs can be taken from pins RP36/PWM1H1, RP37/PWM1L1, RP38/PWM1H2, RP39/PWM1L2, RP40/PWM1H3, and RP41/PWM1L3 (refer to datasheet for the specific pins on your package variant).

2. Encoder Inputs: The motor's encoder outputs should be connected to the dsPIC's input capture pins such as IC1 (RP35) and IC2 (RP34) to read the motor speed and position.

3. Communication Interfaces: For communication with a host computer or other devices, you could use UART (U1RX and U1TX on pins RP28 and RP29 respectively), SPI, or I2C interfaces.

4. Programming and Debugging: For programming the DSPIC33FJ256GP506A-I/PT, you would use the ICSP (In-Circuit Serial Programming) interface, which involves two pins - PGEC2 (RP43) and PGED2 (RP42), along with VDD and VSS for power and ground respectively.

Design considerations: When designing a circuit with DSPIC33FJ256GP506A-I/PT, one should consider power supply requirements, careful routing of the programming/debugging connections, and thermal considerations, especially when dealing with motor control applications. The ideal location for decoupling capacitor addition is close to the power pins. Finally, considering electromagnetic interference and designing for good signal integrity is also essential.

In conclusion, the DSPIC33FJ256GP506A-I/PT is a versatile and high-performance digital signal controller suitable for a variety of applications. Its advanced DSP engine, robust memory, and enhanced peripherals make it a preferred choice for designers and engineers alike.

Please note that this example is quite simplified, and you would likely have more components in a real-world application such as filters, driver circuits, power supplies, and possibly optoisolators for signal isolation. Always consult the chip's datasheet and reference designs for the most accurate information.
