Microchip Technology DSPIC33FJ128MC804-I/PT

Part No.:: DSPIC33FJ128MC804-I/PT

Manufacturer:: Microchip Technology

Package:: 44-TQFP

Datasheet:: DSPIC33FJ128MC804-I/PT.pdf

Description:: IC MCU 16BIT 128KB FLASH 44TQFP

In Stock:: 2762

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DSPIC33FJ128MC804-I/PT Specifications

Package/Case:
44-TQFP
Packaging:
Tray
Series:
dsPIC™ 33F
RoHS:
RoHS
Speed:
40 MIPs
RAM Size:
16K x 8
Core Size:
16-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, WDT
Connectivity:
CANbus, I²C, IrDA, LINbus, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
35
Core Processor:
dsPIC
Data Converters:
A/D 9x10b/12b; D/A 6x16b
Oscillator Type:
Internal
Program Memory Size:
128KB (128K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

DSPIC33FJ128MC804-I/PT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DSPIC33FJ128MC804-I/PT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DSPIC33FJ128MC804-I/PT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DSPIC33FJ128MC804-I/PT information

Views：

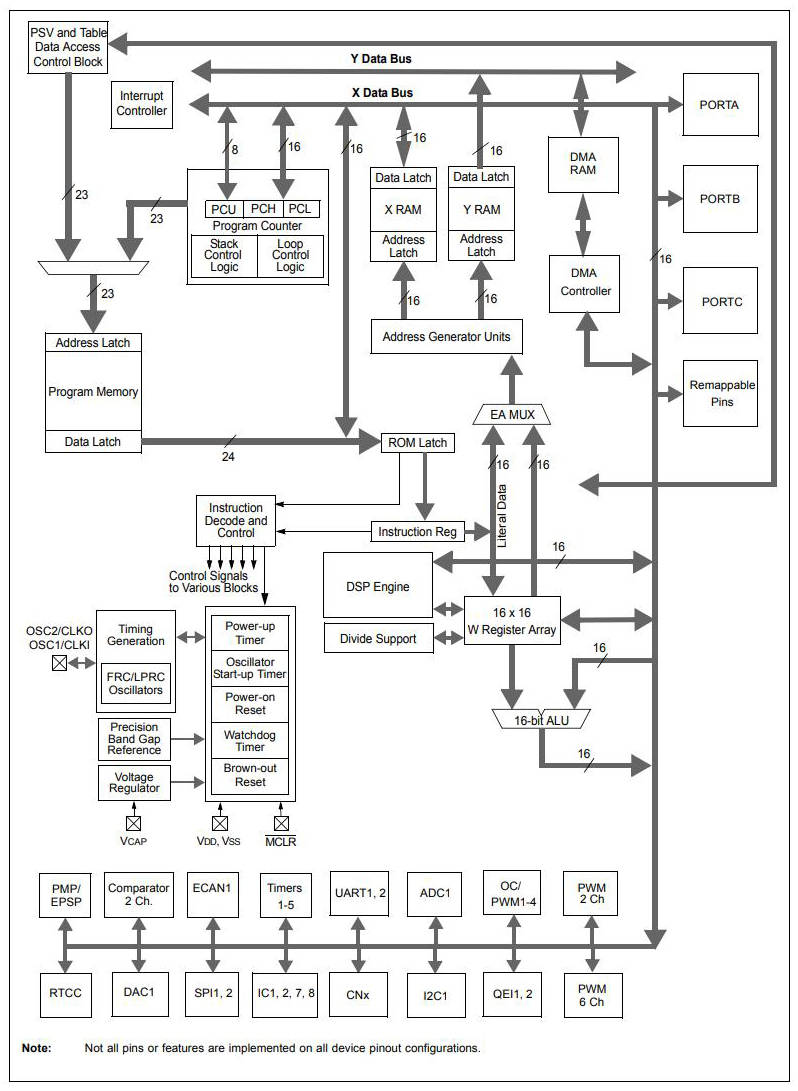

DSPIC33FJ128MC804-I/PT Typical application Circuitry

DSPIC33FJ128MC804-I PT

The DSPIC33FJ128MC804-I/PT is a member of the DSPIC33F family, a series of 16-bit Digital Signal Controllers (DSCs) created by Microchip Technology. With features bridging the gap between microcontrollers and digital signal processors, this device is suited for digital signal processing applications.

Features and Characteristics of DSPIC33FJ128MC804-I/PT :

1. Core: 16-bit dsPIC33F core, 40 MIPs performance.

2. Memory: 128 KB Flash memory, 16 KB SRAM.

3. Digital Signal Processing Engine: Supports MAC, bitwise shift, and other operations.

4. Peripherals: UART, SPI, I²C, 16-bit Timers, PWM modules, ADC.

5. ADC: 10-bit Analog-to-Digital Converter with multiple channels.

6. Package: 44-pin TQFP.

7. Operating Voltage Range: 3.0V to 3.6V.

Application Scenarios for DSPIC33FJ128MC804-I/PT :

The DSPIC33FJ128MC804-I/PT is suitable for applications demanding high computational performance, including:

- Motor Control Systems.

- Audio Processing.

- Industrial Automation.

- Renewable Energy Systems.

- Sensing and Monitoring Solutions.

Example Circuit: Motor Control System:

Utilizing the DSPIC33FJ128MC804-I/PT in a motor control system allows efficient and precise control of electric motors.

1. Power Supply Connection:

- AVDD, VDD (pins 13, 15, 16, 41, 43): Connect to +3.3V.

- AVSS, VSS (pins 14, 40, 42, 44): Connect to Ground.

2. Motor PWM Control:

- PWM1L, PWM1H (pins 35, 36): Connect to the motor driver's PWM inputs.

3. Position Feedback from Encoder (Quadrature Encoder Interface):

- QEA, QEB (pins 33, 34): Connect to the encoder outputs.

4. Current Sensing (Analog Interface):

- AN0, AN1 (pins 2, 3): Connect to current sense resistors.

5. Communication Interface for Supervisory Control (UART):

- U1TX, U1RX (pins 11, 12): Connect to UART-USB converter for PC interface.

6. Emergency Stop Button (Digital Input):

- RA0 (pin 6): Connect to an emergency stop button.

7. Programming and Debugging Interface:

- PGED2, PGEC2 (pins 9, 10): Connect to the programmer's data and clock lines.

- MCLR (pin 1): Connect to the programmer's reset line.

Design Considerations:

1. Noise Immunity: Implement proper filtering and grounding to avoid noise in analog measurements.

2. Real-Time Operation: Ensuring real-time control through appropriate software design.

3. Safety Protocols: Implement safety mechanisms such as fault detection and emergency stop handling.

4. Thermal Considerations: Provide proper heat dissipation to prevent overheating.

5. EMI Considerations: Design to meet Electromagnetic Interference (EMI) standards for industrial environments.

In conclusion, the DSPIC33FJ128MC804-I/PT integrates the capabilities of microcontrollers with the computational power of DSPs. Its features align well with demanding applications such as motor control systems, where real-time, precise control is required. Through meticulous design and proper considerations, the DSPIC33FJ128MC804-I/PT can be harnessed to create a highly effective and reliable motor control solution.
