Microchip Technology DSPIC33FJ128GP706A-I/PT

Part No.:: DSPIC33FJ128GP706A-I/PT

Manufacturer:: Microchip Technology

Package:: 64-TQFP

Datasheet:: DSPIC33FJ128GP706A-I/PT.pdf

Description:: IC MCU 16BIT 128KB FLASH 64TQFP

In Stock:: 2053

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DSPIC33FJ128GP706A-I/PT Specifications

Package/Case:
64-TQFP
Packaging:
Tray
Series:
dsPIC™ 33F
RoHS:
RoHS
Speed:
40 MIPs
RAM Size:
16K x 8
Core Size:
16-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
AC'97, Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT
Connectivity:
CANbus, I²C, IrDA, LINbus, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
53
Core Processor:
dsPIC
Data Converters:
A/D 18x10b/12b
Oscillator Type:
Internal
Program Memory Size:
128KB (128K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

DSPIC33FJ128GP706A-I/PT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DSPIC33FJ128GP706A-I/PT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DSPIC33FJ128GP706A-I/PT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DSPIC33FJ128GP706A-I/PT information

Views：

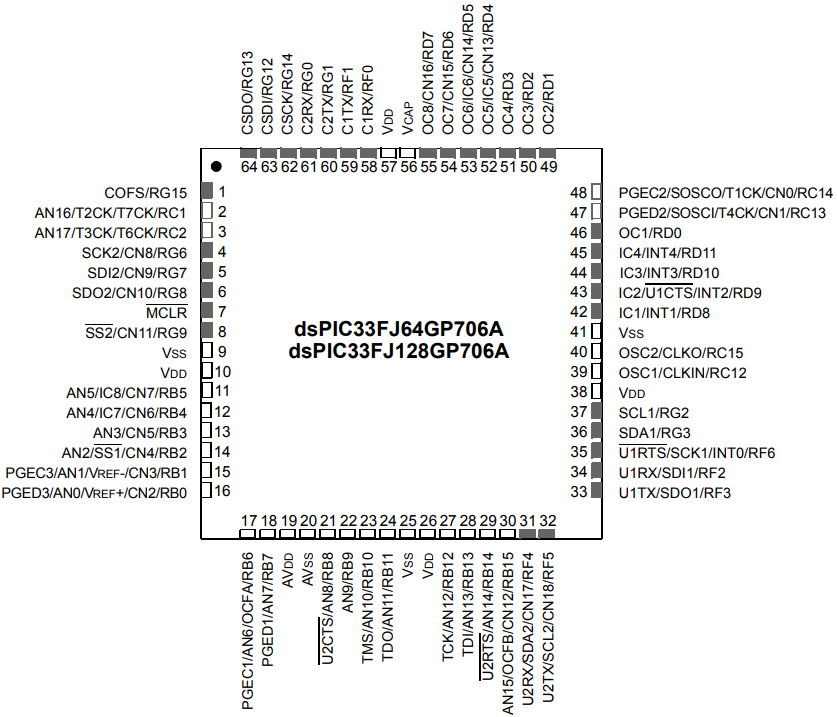

DSPIC33FJ128GP706A-I/PT Typical application Circuitry

DSPIC33FJ128GP706A-I PT

The DSPIC33FJ128GP706A-I/PT belongs to the dsPIC33FJ series of digital signal controllers (DSCs) from Microchip Technology, which combines the improved computational power of digital signal processors with the features of microcontrollers. Applications like motor control, power management, and embedded control systems, which need for fast and intricate digital signal processing, are specifically catered to by this series.

1. Power Supply Connections: The DSPIC33FJ128GP706A-I/PT typically operates with a core voltage of 3.3V. Connect the VDD pins to a stable 3.3V power source. Ensuring that this power supply is stable and regulated is crucial for the DSC's proper operation.

2. Grounding the Device: Every VSS pin has to be linked to the ground of your circuit. For the DSC to operate steadily and with less electrical noise, a solid ground connection is essential.

3. External Oscillator Configuration: The DSPIC33FJ128GP706A-I/PT requires an external clock source. Connect a suitable oscillator to the OSC1/CLKI and OSC2/CLKO pins. The quality of this external clock source is important for the overall performance of the DSC.

4. I/O Pin Configuration: This DSC offers a range of I/O pins. Configure these pins based on your specific application needs, whether for input, output, or special functions such as UART, SPI, I2C, or PWM channels.

5. Analog Inputs: If your application requires analog inputs, connect these to the ANx pins. Ensure that the input signals are conditioned properly to match the input range of the DSC's analog-to-digital converters.

6. Programming and Debugging Interface: Use the JTAG and ICSP (In-Circuit Serial Programming) interfaces for programming and debugging. Connect the necessary pins to a compatible programming and debugging tool.

7. Decoupling Capacitors: Decoupling capacitors should be positioned close to the power supply pins (VDD) in order to reduce noise and offer power stability, both of which are essential for precise operation.

8. Thermal Management: Depending on its workload, the DSPIC33FJ128GP706A-I/PT may generate heat. Implement suitable heat dissipation strategies, such as using heatsinks, to maintain a proper operating temperature.

9. PCB Layout and Design: Design the PCB to minimize noise and signal interference, especially if the DSC is part of a system with high-speed digital or sensitive analog signals. Trace lengths, routing routes, and the division of digital and analog portions are all taken into account.

In conclusion, the DSPIC33FJ128GP706A-I/PT from the dsPIC33FJ series is an advanced digital signal controller, suitable for a wide range of applications that require both control and digital signal processing functionalities. Effective implementation involves correct power supply connections, grounding, external clock setup, I/O pin configuration, analog input preparation, programming interface arrangement, decoupling capacitors, thermal management, and careful PCB layout design. These considerations are crucial for fully utilizing the DSPIC33FJ128GP706A-I/PT in complex signal processing and control tasks.
