Name: DSPIC33EP64GS506-I/PT
Brand: Microchip Technology
SKU: DSPIC33EP64GS506-I/PT
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Microchip Technology DSPIC33EP64GS506-I/PT

Part No.:: DSPIC33EP64GS506-I/PT

Manufacturer:: Microchip Technology

Package:: 64-TQFP

Datasheet:: DSPIC33EP64GS506-I/PT.pdf

Description:: IC MCU 16BIT 64KB FLASH 64TQFP

In Stock:: 3052

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DSPIC33EP64GS506-I/PT Specifications

Package/Case:
64-TQFP
Packaging:
Tray
Series:
dsPIC™ 33EP, Functional Safety (FuSa)
RoHS:
RoHS
Speed:
70 MIPs
RAM Size:
8K x 8
Core Size:
16-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, POR, PWM, WDT
Connectivity:
I²C, IrDA, LINbus, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
53
Core Processor:
dsPIC
Data Converters:
A/D 22x12b; D/A 2x12b
Oscillator Type:
Internal
Program Memory Size:
64KB (64K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

DSPIC33EP64GS506-I/PT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DSPIC33EP64GS506-I/PT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DSPIC33EP64GS506-I/PT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DSPIC33EP64GS506-I/PT information

Views：

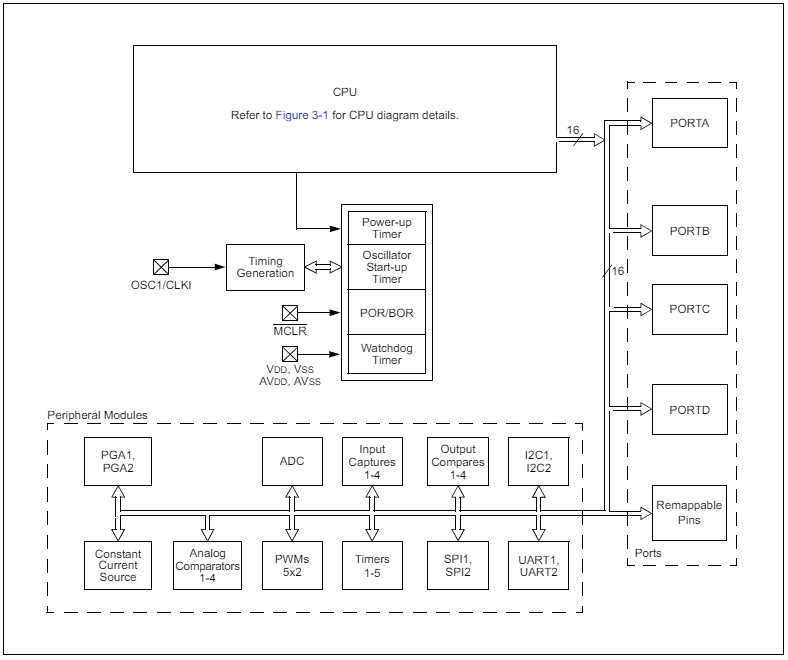

DSPIC33EP64GS506-I/PT Typical application Circuitry

DSPIC33EP64GS506-I PT

The DSPIC33EP64GS506-I/PT is a powerful digital signal controller (DSC) from Microchip Technology, designed to effectively combine the features of microcontrollers with the advanced capabilities of digital signal processors. This DSC is particularly useful in applications where complex mathematical calculations and high-speed control operations are crucial.

Key Features and Specifications:

- High-Speed DSP Core: The DSC operates at 70 MIPS, which allows for rapid processing and execution of DSP algorithms, critical in applications requiring quick response times.

- Large Memory Capacity: Equipped with 64 KB of flash memory and 8 KB of RAM, this DSC can handle extensive code and provide ample storage for data, which is essential for complex applications.

- Comprehensive Peripheral Set: Features include multiple PWM outputs, high-speed ADCs, DACs, and various communication protocols like UART, SPI, and I2C, making it highly versatile for interfacing with various electronic components.

- Precision ADCs: The inclusion of 12-bit ADCs allows for accurate signal measurement, which is vital for precise control and monitoring applications.

- Robust I/O Options: Numerous input/output pins support extensive external interactions, facilitating complex multi-device connectivity.

Application Scenario: Advanced Motor Control System

In this application, the DSPIC33EP64GS506-I/PT acts as the main controller within a sophisticated motor control system, which could be employed in robotics or automated manufacturing equipment.

Circuit Design Methodology:

1. Main Controller Setup:

- Central Processing Unit: Utilize the DSPIC33EP64GS506-I/PT to coordinate and process inputs from position sensors and execute control algorithms to manage motor operations effectively.

2. Power Management:

- Power Supply Connections: Ensure that the VDD and VSS pins are connected to a regulated 3.3V power supply. Incorporate decoupling capacitors close to these power inputs to stabilize the supply and minimize electrical noise, which is critical for maintaining the controller's performance.

3. Motor Driver Control:

- PWM Output Utilization: Use the PWM outputs to drive motor controllers, adjusting parameters such as speed and torque based on real-time feedback from system sensors.

4. Sensor Integration:

- Feedback Mechanism: Attach encoders and other positional sensors to the ADC inputs to provide accurate feedback on motor position and speed, enabling precise control adjustments.

5. System Communication:

- Network Interfaces: Implement communication protocols using UART or SPI to allow the DSPIC33EP64GS506-I/PT to communicate with other system components or external control systems, facilitating overall system integration and data exchange.

6. Programming and Diagnostics:

- Firmware Update and Debugging: Employ the ICSP (In-Circuit Serial Programming) interface, focusing on the PGEC and PGED pins for uploading new firmware and performing diagnostic checks. This feature is vital for system setup and routine maintenance.

Design Considerations:

- Electromagnetic Interference (EMI) Management: Use shielding techniques and careful PCB layout to minimize EMI, especially important in industrial environments where electrical noise can affect performance.

- Thermal Management: Design adequate cooling for the DSPIC33EP64GS506-I/PT, as the high-speed operations may generate significant heat, potentially affecting the DSC's reliability and lifespan.

- Signal Integrity: Ensure that all signal paths, especially those for high-frequency digital and sensitive analog signals, are designed to prevent signal degradation, which is crucial for maintaining accurate control and feedback.

- Firmware Optimization: Develop and optimize firmware that leverages the advanced capabilities of the DSPIC33EP64GS506-I/PT, focusing on maximizing processing efficiency and real-time responsiveness.

- Safety Measures: Implement comprehensive safety protocols, including overcurrent protection and voltage monitoring, to protect the DSC and the motor control system from potential damage due to operational anomalies.

Integrating the DSPIC33EP64GS506-I/PT in an advanced motor control system highlights its ability to manage and execute complex algorithms efficiently, proving its suitability for high-demand applications in robotics and automation. This setup not only demonstrates the controller's robustness but also its adaptability in managing intricate systems requiring precise and reliable controls.
