lmages are for reference only See Product Specifications

Microchip Technology DSPIC33EP32GP502-I/SS

Part No.:: DSPIC33EP32GP502-I/SS

Manufacturer:: Microchip Technology

Package:: 28-SSOP (0.209", 5.30mm Width)

Datasheet:: DSPIC33EP32GP502-I/SS.pdf

Description:: IC MCU 16BIT 32KB FLASH 28SSOP

In Stock:: 2624

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DSPIC33EP32GP502-I/SS Specifications

Package/Case:
28-SSOP (0.209", 5.30mm Width)
Packaging:
Tube
Series:
dsPIC™ 33EP
RoHS:
RoHS
Speed:
70 MIPs
RAM Size:
2K x 16
Core Size:
16-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, POR, PWM, WDT
Connectivity:
CANbus, I²C, IrDA, LINbus, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
21
Core Processor:
dsPIC
Data Converters:
A/D 6x10b/12b
Oscillator Type:
Internal
Program Memory Size:
32KB (10.7K x 24)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

DSPIC33EP32GP502-I/SS this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DSPIC33EP32GP502-I/SS price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DSPIC33EP32GP502-I/SS to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DSPIC33EP32GP502-I/SS information

Views：

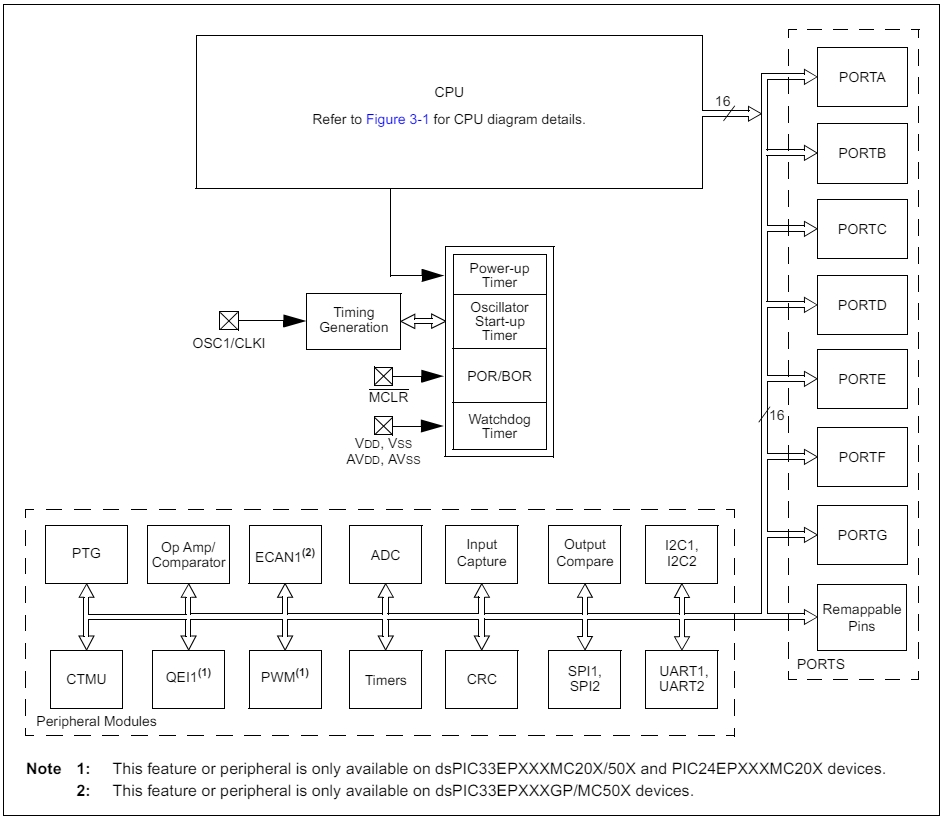

DSPIC33EP32GP502-I/SS Typical application Circuitry

DSPIC33EP32GP502-I SS

The DSPIC33EP32GP502-I/SS is a digital signal controller (DSC) manufactured by Microchip Technology, which combines the functionalities of a microcontroller with the computational power of a digital signal processor. This chip is well-suited for applications that require advanced control techniques alongside high-speed signal processing, such as in motor control, automotive applications, and embedded control systems.

Key Features and Specifications:

- Enhanced DSP Capabilities: The DSC includes DSP-enhanced core features, making it ideal for executing complex mathematical calculations required for signal processing and control applications.

- Memory Resources: Equipped with 32 KB of flash memory and 4 KB of RAM, offering sufficient space for application development and data handling.

- Rich Peripherals: Offers a variety of peripherals including UART, SPI, and I2C interfaces for communication, as well as ADCs and PWM outputs for control tasks.

- High-Speed Performance: Operates at speeds up to 70 MIPS, allowing for high-performance operation in real-time applications.

- Flexible Power Management: Features flexible options for power management, which are critical for low-power applications.

Application Scenario: Brushless DC (BLDC) Motor Control

In this scenario, the DSPIC33EP32GP502-I/SS is used to control a BLDC motor, which is common in applications such as drones, electric vehicles, and HVAC systems where efficiency and precise control are paramount.

Circuit Design Methodology:

1. Core Control Unit Setup:

- Main Controller: The DSPIC33EP32GP502-I/SS functions as the central controller for the BLDC motor, managing the commutation of the motor phases and executing advanced algorithms such as field-oriented control.

2. Power Supply Configuration:

- Power Connections: - Power Supply Configuration: Depending on the needs of the system, connect the VDD and VSS pins to a steady power supply that is either 3.3V or 5V. To provide a steady and clean power supply, decoupling capacitors must be added in close proximity to these pins.

3. Motor Driver Interface:

- PWM Outputs for Motor Control: Use the PWM outputs from the DSPIC33EP32GP502-I/SS to drive the gates of MOSFETs or IGBTs in the motor driver circuit. These PWM signals need to be carefully timed and controlled to ensure efficient motor operation.

4. Feedback Mechanism:

- Sensor Integration: Connect hall sensors or an encoder to the ADC inputs on the DSPIC33EP32GP502-I/SS to monitor the position and speed of the motor. This feedback is vital for precise motor control and positioning.

5. Communication Protocols Implementation:

- System Communication: Implement UART, SPI, or I2C for communication with other system components or for diagnostics and parameter adjustments. This setup enables monitoring and control of the motor system from a central system or user interface.

6. Programming and Debugging:

- ICSP Interface for Firmware Updates: Utilize the In-Circuit Serial Programming (ICSP) interface, specifically the PGEC and PGED pins, for programming and debugging the firmware. This interface is essential for development and maintenance.

Design Considerations:

- EMI Considerations: Motor control applications can generate significant electromagnetic interference. Implement shielding and filtering techniques to minimize EMI, thus ensuring reliable operation of sensitive components.

- Thermal Management: Consider thermal aspects of the controller and power devices, implementing adequate cooling mechanisms to handle the heat generated by the motor and its controllers.

- Signal Integrity: Design the PCB with careful consideration for trace routing, especially for the high-frequency PWM signals, to prevent signal degradation and crosstalk.

- Firmware Optimization: Develop and optimize firmware to leverage the DSP capabilities of the DSPIC33EP32GP502-I/SS, focusing on efficient execution of motor control algorithms.

- Safety and Protection: Include protective circuits to safeguard against overcurrent, overvoltage, and other potential hazardous conditions to ensure system safety and reliability.

Incorporating the DSPIC33EP32GP502-I/SS into a BLDC motor control system illustrates its ability to perform complex control tasks with high efficiency and precision. This application showcases the power of integrating advanced DSCs in motor control applications, highlighting their role in enhancing the performance and reliability of modern electronic systems.
