Texas Instruments DS80PCI800SQ/NOPB

Part No.:: DS80PCI800SQ/NOPB

Manufacturer:: Texas Instruments

Package:: 54-WFQFN Exposed Pad

Datasheet:: DS80PCI800SQ/NOPB.pdf

Description:: IC REDRIVER PCIE 8CH 54WQFN

In Stock:: 3560

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS80PCI800SQ/NOPB Specifications

Package/Case:
54-WFQFN Exposed Pad
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
Type:
Buffer, ReDriver
Applications:
PCIe
Input:
CML
Output:
CML
DataRate(Max):
8Gbps
NumberofChannels:
8
DelayTime:
200ps
SignalConditioning:
Input Equalization, Output De-Emphasis
Capacitance-Input:
10 pF
Voltage-Supply:
2.375V ~ 3.6V
Current-Supply:
-
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

DS80PCI800SQ/NOPB this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS80PCI800SQ/NOPB price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS80PCI800SQ/NOPB to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS80PCI800SQ/NOPB information

Views：

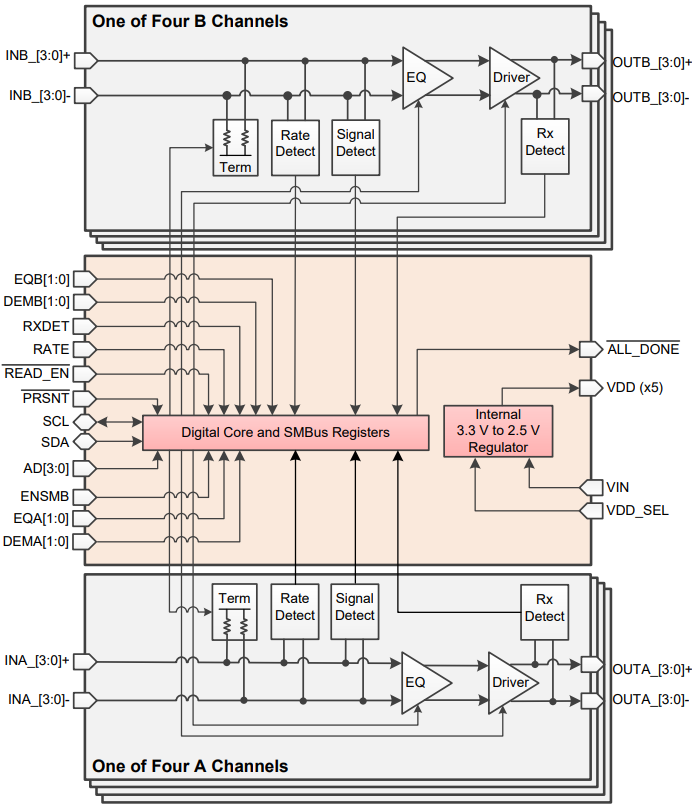

DS80PCI800SQ/NOPB Typical application Circuitry

DS80PCI800SQ NOPB

The DS80PCI800SQ/NOPB is a component of the DS80PCI series, a line of high-performance signal conditioners developed by Texas Instruments. Specifically, it is a PCIe (Peripheral Component Interconnect Express) signal repeater, designed to enhance and stabilize high-speed data transmission. This device is commonly utilized in server, storage, and networking infrastructures where signal integrity is critical, especially over extended distances or through complex routing.

1. Power Supply Connectivity: The DS80PCI800SQ/NOPB requires a power supply, typically around 3.3V. The VCC pins should be connected to a 3.3V power source. The stability and quality of the power supply are crucial, as they directly affect the device's ability to process and repeat high-speed signals.

2. Establishing a Ground Connection: The ground plane of your circuit must be linked to the GND pins of the DS80PCI800SQ/NOPB. A strong and stable ground connection is vital for reducing noise and ensuring the effective operation of the repeater.

3. Differential Signal Inputs and Outputs: This device features pairs of differential signal inputs and outputs. These should be accurately connected to the differential signal lines, ensuring that the layout and impedance control are suitable for high-speed signal integrity.

4. Configuration and Control Pin Setup: The DS80PCI800SQ/NOPB includes various pins for configuration and control. These pins, as specified in the datasheet, should be connected as per the application requirements to optimize the repeater's performance.

5. Optimizing Signal Routing: In high-speed applications like those involving the DS80PCI800SQ/NOPB, PCB layout and signal routing are critical. Ensure minimal crosstalk and maintain controlled impedance in the signal paths for optimal signal integrity.

6. Thermal Management Considerations: Given the high-speed nature of the DS80PCI800SQ/NOPB, it's essential to consider thermal management in your design. This is particularly important if the device is located in a densely populated area of the PCB or near other heat-generating components.

In summary, the DS80PCI800SQ/NOPB is a sophisticated PCIe signal repeater, ideal for use in systems requiring high-speed data transmission with maintained signal integrity. Proper utilization involves connecting to a suitable 3.3V power supply, grounding effectively, configuring differential signal inputs and outputs correctly, setting up control and configuration pins as needed, careful planning of signal routing, and considering thermal aspects in the design. These measures are key to fully leveraging the DS80PCI800SQ/NOPB's capabilities in advanced data communication systems.
