What is the Additional Feature ?

Name: DS80C320-MCG+
Brand: Analog Devices Inc./Maxim Integrated
SKU: DS80C320-MCG+
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc./Maxim Integrated DS80C320-MCG+

Part No.:: DS80C320-MCG+

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 40-DIP (0.600", 15.24mm)

Datasheet:: DS80C320-MCG+.pdf

Description:: IC MCU 8BIT ROMLESS 40DIP

In Stock:: 133

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS80C320-MCG+ Specifications

Package/Case:
40-DIP (0.600", 15.24mm)
Packaging:
Tube
Series:
80C
RoHS:
RoHS
Speed:
25MHz
RAM Size:
256 x 8
Core Size:
8-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Power-Fail Reset, WDT
Connectivity:
EBI/EMI, SIO, UART/USART
Mounting Type:
Through Hole
Number of I/O:
32
Core Processor:
8051
Data Converters:
-
Oscillator Type:
External
Program Memory Size:
-
Program Memory Type:
ROMless
Operating Temperature:
0°C ~ 70°C (TA)

DS80C320-MCG+ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS80C320-MCG+ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS80C320-MCG+ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS80C320-MCG+ information

Views：

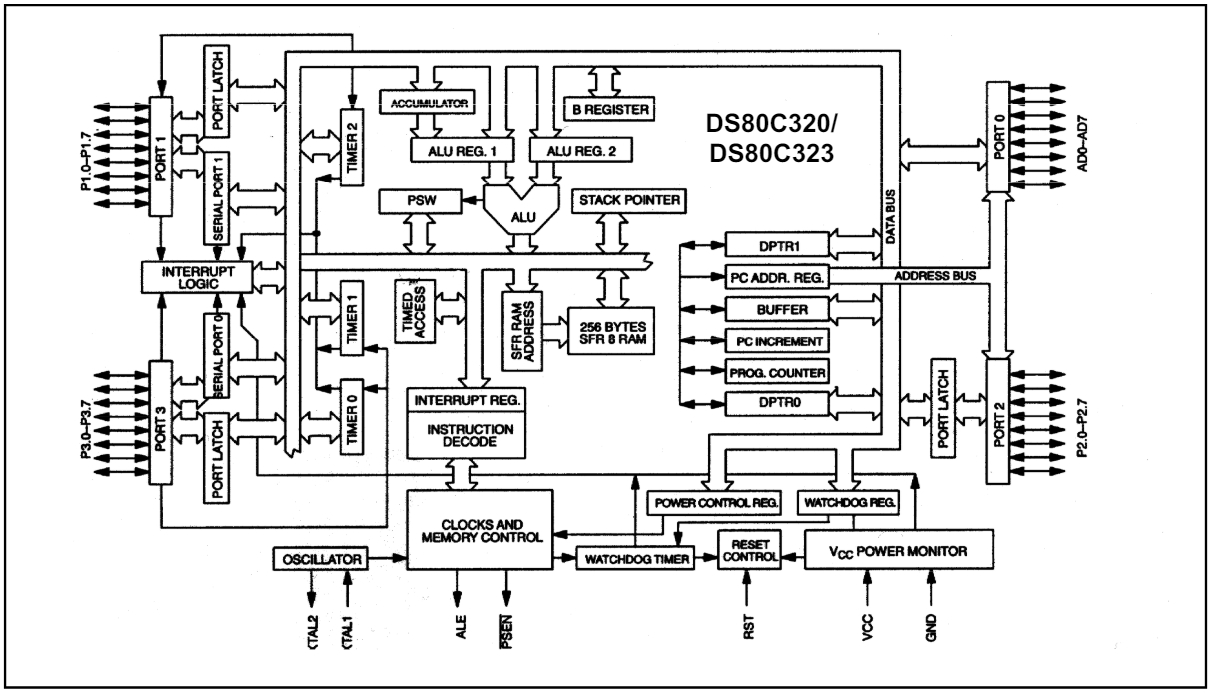

DS80C320-MCG+ Typical application Circuitry

DS80C320-MCG-

The DS80C320-MCG+ is a high-speed microcontroller designed by Maxim Integrated, distinguished by its compatibility with the 8051 architecture. It enhances the traditional 8051 design with a faster processor core, lower power consumption, and improved interrupt handling, making it an ideal choice for applications requiring efficient and robust control operations. Its compatibility with 8051 microcontroller peripherals and tools facilitates easy integration into existing systems or for developing new applications that demand high performance and reliability.

Key Features and Specifications:

- High-Speed CPU: Up to three times faster than the standard 8051 microcontroller at the same clock frequency, thanks to its efficient instruction set and processing capabilities.

- Power Management: Features power-saving modes for enhanced energy efficiency.

- Enhanced Interrupt Handling: Offers more interrupt priorities than the standard 8051, enabling better control over real-time tasks.

- Broad Voltage Range: Operates across a wide range of supply voltages, accommodating various power supplies and battery configurations.

- Dual Data Pointer: Simplifies data movement operations, beneficial for applications involving significant data processing.

Application Scenario: Industrial Automation Control System

In an industrial automation control system, the DS80C320-MCG+ can be utilized to manage and coordinate complex machinery operations, sensor data acquisition, and communication tasks, ensuring high reliability and efficiency in production processes.

Circuit Design Methodology:

1. Power Supply Connection (VCC, Pin 40; GND, Pin 20): Connect VCC to a 5V power supply, and GND to the system's ground. A 0.1µF decoupling capacitor should be placed close to these pins to minimize power supply noise, ensuring stable operation of the DS80C320-MCG+.

2. Clock Source Configuration (XTAL1, Pin 19; XTAL2, Pin 18): An external crystal oscillator, typically 11.0592 MHz, is connected between XTAL1 and XTAL2 pins to provide the clock source. This frequency is chosen for serial communication compatibility, ensuring precise baud rates for UART communication.

3. Serial Communication Interface (RXD, Pin 10; TXD, Pin 11): RXD and TXD are connected to the corresponding pins of an RS-232 driver or directly to another microcontroller for serial data exchange. This setup facilitates programming and communication with peripheral devices or a PC for debugging purposes.

4. Reset Circuit (RST, Pin 9): A pull-up resistor (10kΩ) and a capacitor (0.1µF) form a simple reset circuit connected to the RST pin. This ensures a proper startup sequence for the DS80C320-MCG+ upon power-up or after a brownout condition.

5. I/O Port Configuration (Port 0-Port 3, Pins 32-39, 1-8, 21-28, 10-17): The general-purpose I/O ports are connected to sensors, actuators, and other interface circuits relevant to the automation system. Proper buffering and protection circuits should be employed to safeguard the DS80C320-MCG+ from overvoltage and electrostatic discharge (ESD).

Design Considerations:

- EMI and Noise Suppression: Implementing filtering and shielding techniques can mitigate electromagnetic interference (EMI), crucial in industrial environments to ensure the reliable operation of the DS80C320-MCG+.

- Power Supply Quality: Using a regulated power supply with sufficient filtering is essential to maintain the DS80C320-MCG+'s performance and prevent unexpected resets.

- Clock Stability: The accuracy of the external crystal oscillator directly impacts the system's timing and communication. Temperature-compensated or oven-controlled oscillators may be considered for applications requiring higher precision.

- Programming and Debugging: Ensure the development environment supports the DS80C320-MCG+, and incorporate debugging and programming interfaces accessible during development and for future firmware updates.

- I/O Port Protection: Given the industrial setting, incorporating surge protectors and isolators on I/O lines is advisable to protect against voltage spikes and transients.

Employing the DS80C320-MCG+ in an industrial automation control system underscores its capability to efficiently manage complex operations with its high-speed processing power, robust interrupt system, and flexible I/O configurations. This application exemplifies how the DS80C320-MCG+ can enhance system performance, reliability, and scalability in demanding environments.

DS80C320-MCG+ FAQ

1. How to order DS80C320-MCG+ on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that DS80C320-MCG+ is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the DS80C320-MCG+. All suppliers must pass our qualification reviews before they can publish their products including DS80C320-MCG+ on icwhale.com; we pay more attention to the channels and quality of DS80C320-MCG+ products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the DS80C320-MCG+ price and inventory displayed accurate?

The price and inventory of DS80C320-MCG+ fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of DS80C320-MCG+?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the DS80C320-MCG+ we delivered, we will accept the replacement or return of the DS80C320-MCG+ only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of DS80C320-MCG+.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
