Analog Devices Inc./Maxim Integrated DS28E01P-100+T

Part No.:: DS28E01P-100+T

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 6-SMD, J-Lead

Datasheet:: DS28E01P-100+T.pdf

Description:: IC EEPROM 1KBIT 1-WIRE 6TSOC

In Stock:: 3648

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS28E01P-100+T Specifications

Package/Case:
6-SMD, J-Lead
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
MemoryType:
Non-Volatile
MemoryFormat:
EEPROM
Technology:
EEPROM
MemorySize:
1Kb (256 x 4)
MemoryInterface:
1-Wire®
ClockFrequency:
-
WriteCycleTime-WordPage:
-
AccessTime:
2 µs
Voltage-Supply:
2.85V ~ 5.25V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

DS28E01P-100+T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS28E01P-100+T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS28E01P-100+T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS28E01P-100+T information

Views：

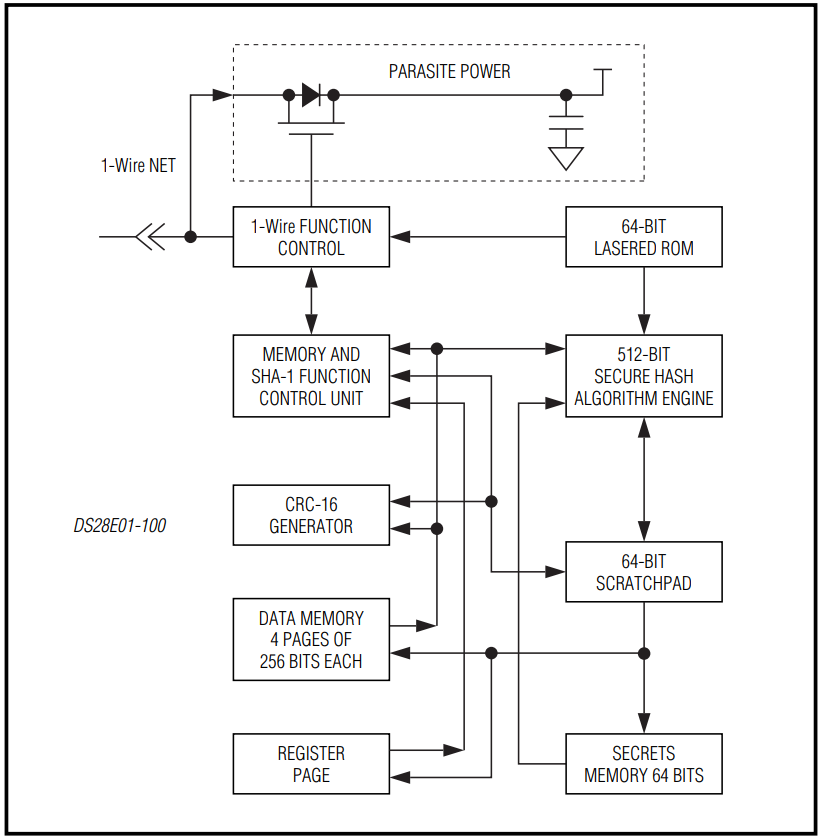

DS28E01P-100+T Typical application Circuitry

DS28E01P-100+T

The DS28E01P-100+T is a specialized component in the DS28E series from Maxim Integrated. It is a 1-Wire EEPROM with SHA-1 Engine, primarily designed for secure storage and communication. This device is particularly beneficial in applications that require data authenticity and integrity verification, such as in secure access control, system authentication, or in situations where secure data storage is paramount.

1. Power Supply Connection: The DS28E01P-100+T operates on a unique 1-Wire interface, which means it can derive power directly from the data line (referred to as 'parasitic power'). Thus, it does not require a separate power supply connection. This feature simplifies the connection and reduces the number of wires required.

2. Data Line Configuration: The primary and only pin for communication is the 1-Wire data line. Connect this pin to the data line of your microcontroller or 1-Wire master device. A pull-up resistor, typically around 4.7kΩ, should be connected between the data line and the power supply to ensure reliable data transmission.

3. Ground Connection: Connect the ground pin of the DS28E01P-100+T to the ground of your system. A stable ground connection is crucial for the accurate operation of the 1-Wire communication protocol and for the device's overall stability.

4. Parasitic Power Considerations: Since the DS28E01P-100+T operates in parasitic power mode, ensure that your 1-Wire master can provide sufficient power over the data line during communication and EEPROM operations. This typically involves ensuring that the master device can deliver a robust pull-up on the data line to power the DS28E01P-100+T.

5. Signal Integrity Management: In applications where the data line extends over a longer distance, special attention should be paid to the integrity of the signal. This might involve choosing the right pull-up resistor value and ensuring minimal electrical interference

6. Thermal and Environmental Considerations: Although the DS28E01P-100+T is generally robust, it's important to consider its operating environment. Ensure that the chip is placed in conditions within its specified temperature range and protected from environmental factors that could affect its performance.

In conclusion, the DS28E01P-100+T from Maxim Integrated is a versatile and secure EEPROM with a SHA-1 Engine, suitable for applications requiring secure data storage and authentication. Its efficient implementation involves a single data line connection with a pull-up resistor, stable grounding, careful management of parasitic power, attention to signal integrity, and consideration of the environmental and thermal conditions. These aspects are crucial to fully harness the capabilities of the DS28E01P-100+T in secure data communication systems.
