Analog Devices Inc./Maxim Integrated DS28E01P-100+

Part No.:: DS28E01P-100+

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 6-SMD, J-Lead

Datasheet:: DS28E01P-100+.pdf

Description:: IC EEPROM 1KBIT 1-WIRE 6TSOC

In Stock:: 3717

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS28E01P-100+ Specifications

Package/Case:
6-SMD, J-Lead
Packaging:
Tube
Series:
-
ProductStatus:
Active
MemoryType:
Non-Volatile
MemoryFormat:
EEPROM
Technology:
EEPROM
MemorySize:
1Kb (256 x 4)
MemoryInterface:
1-Wire®
ClockFrequency:
-
WriteCycleTime-WordPage:
-
AccessTime:
2 µs
Voltage-Supply:
2.85V ~ 5.25V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

DS28E01P-100+ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS28E01P-100+ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS28E01P-100+ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DS28E01P-100+ information

Views：

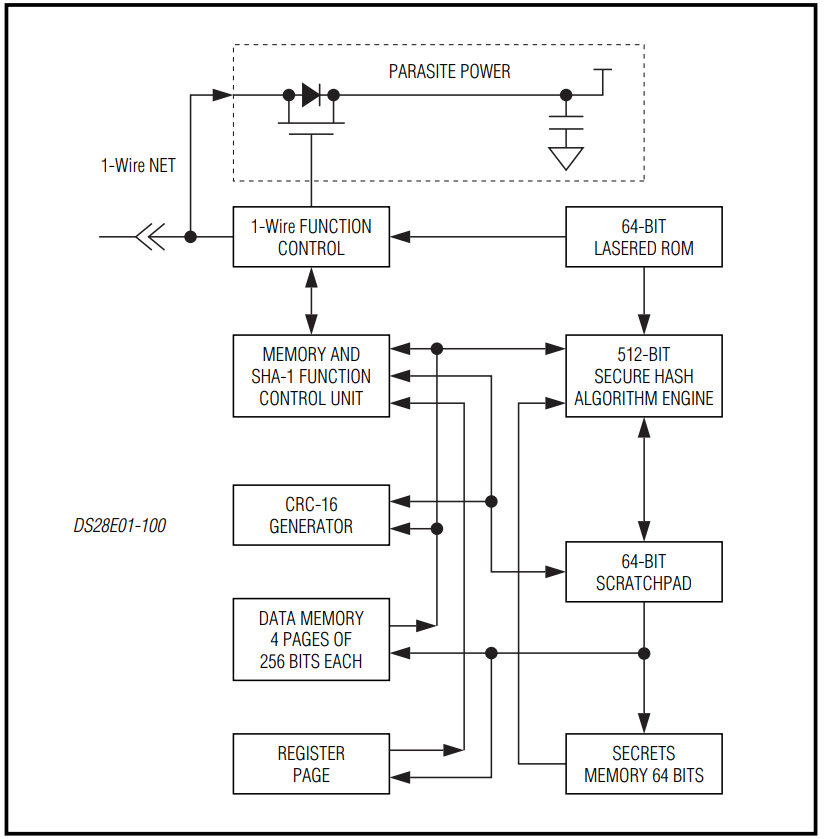

DS28E01P-100+ Typical application Circuitry

DS28E01P-100+

The DS28E01P-100+ is a unique component in Maxim Integrated's DS28E series, characterized as a secure, programmable 1-Wire EEPROM. This device integrates memory storage with a SHA-1 (Secure Hash Algorithm 1) engine, making it ideal for applications that require both secure data storage and authentication capabilities, such as in access control systems, secure communications, and in scenarios where data integrity and security are paramount.

1. Single-Wire Data and Power Connection: The DS28E01P-100+ operates using a 1-Wire interface, which uniquely combines both data and power over a single line. This single connection reduces the complexity of wiring and is highly advantageous in systems where minimal wiring is desired.

2. Data Line Setup: The main pin for communication on the DS28E01P-100+ is the 1-Wire interface. Connect this to a digital I/O pin on your microcontroller or a 1-Wire bus master. It's crucial to incorporate a pull-up resistor (typically 4.7kΩ) on this line, bridging between the data line and the power source to ensure efficient communication and power delivery.

3. Grounding the Device: Establish a solid ground connection by connecting the GND pin of the DS28E01P-100+ to the ground of your circuit. Proper grounding is essential for the stability of the device and the integrity of the data transmission.

4. Handling Parasitic Power Mode: Since the DS28E01P-100+ can operate in a parasitic power mode, where it derives its power from the data line, ensure that your system design can provide adequate power through the 1-Wire interface. This usually means that the 1-Wire bus master should be capable of supplying a strong pull-up on the data line to power the device during operations.

5. Signal Integrity and Line Length: If the data line extends over significant distances, consider the impact on signal integrity. The choice of the pull-up resistor value and protection against electrical interference becomes crucial in these scenarios.

6. Environmental Conditions: While configuring the DS28E01P-100+, it's important to consider the operating environmental conditions, including temperature range and potential exposure to elements that could affect its functionality.

In summary, the DS28E01P-100+ is a versatile and secure EEPROM solution in the DS28E series, ideal for applications requiring secure data storage and authentication. Its implementation involves a simplified single-wire connection for both data and power, a robust grounding, careful management of the parasitic power mode, attention to signal integrity in extended line setups, and consideration for the operating environment. These steps are crucial for the effective utilization of the DS28E01P-100+ in secure and reliable data handling applications.
